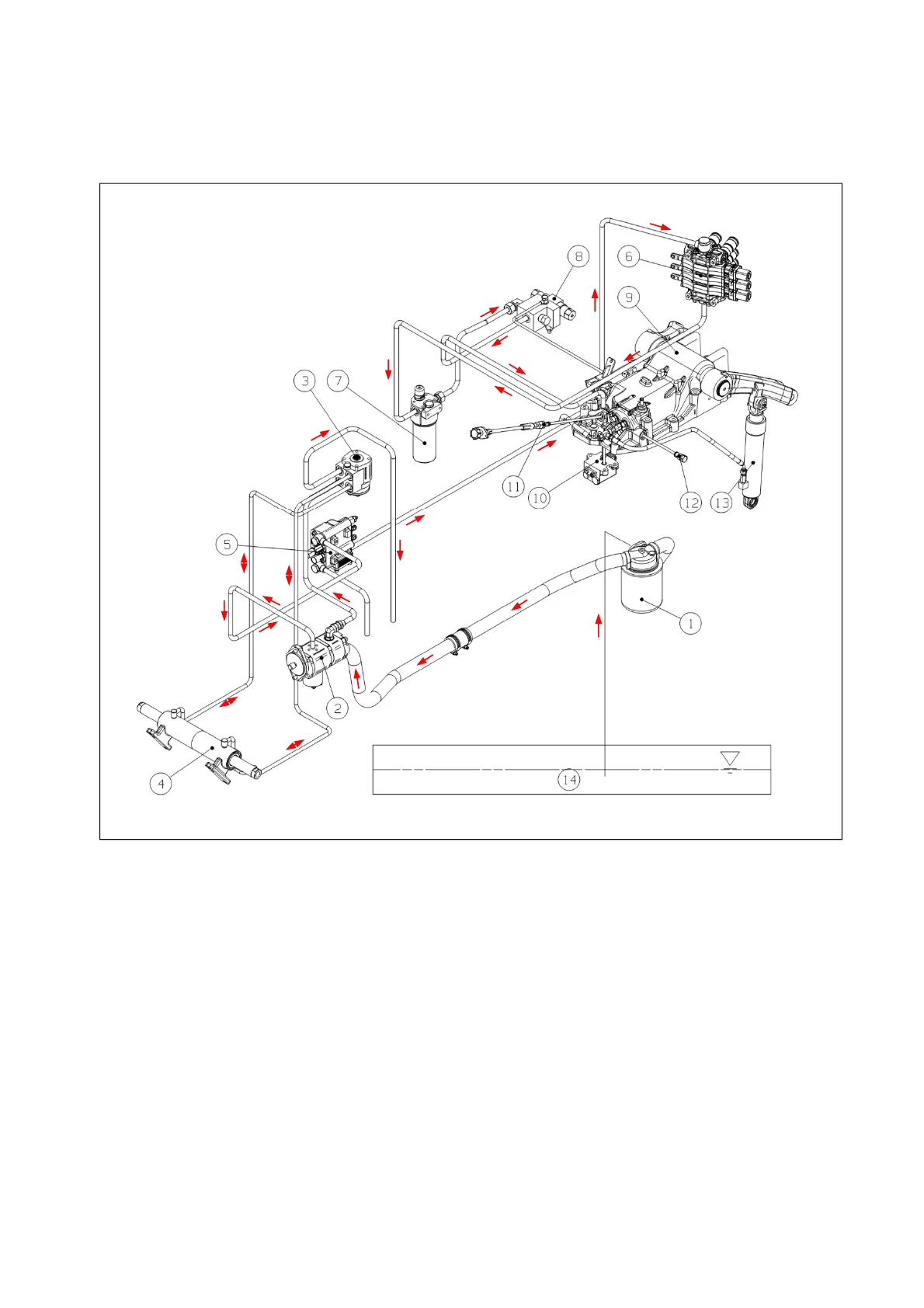

(7) Hydraulic System Diagram
1. Hydraulic oil filter
2. Hydraulic pump
3. Steering unit
4. Steering cylinder
5. Front loader valve or
Front outlet valve (optional)
6. Remote control valve
7. In-line filter (optional)
8. Leveling control valve (optional)
9. Hydraulic lift housing (MHL)
10. Hydraulic lift control valve (MHL)
11. Down speed control valve (MHL)
12. Safety valve
13. Hydraulic lift cylinder (optional)
14. Oil tank (Transmission case)
① Mechanical Hydraulic Lift (MHL)
