5 -29

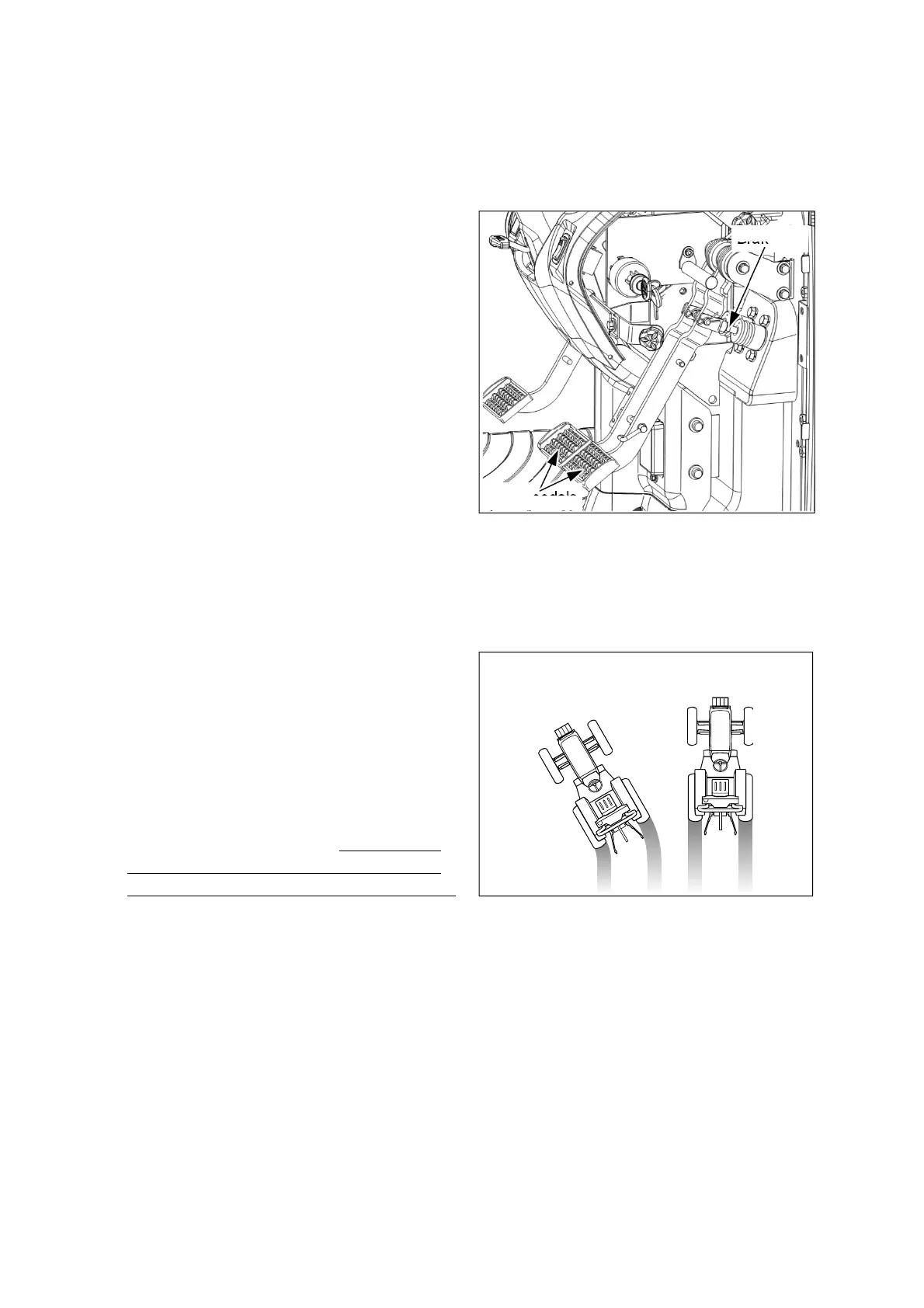

(11) Adjustment of Brake pedal
play
Normal distance : 20~40mm. (0.7~1.6 in.)
If the pedal play distance is over the normal
distance, adjust it as below.
1. Loosen the locking nut and turn brake rod to
adjust.
2. If the brake rod is tightened, the pedal play shall
be increased, and if loosened, it shall be
reduced.
3. Pay attention that brake rod does NOT push the
piston of brake master cylinder when brake
pedal is released.
4. After adjusting the pedal play, tighten the locking
nut.
5. Check if the brake distance of the left and right
brake is same as below.
Brake pedals
Brake rod
Left/ Right brake distance
is different.
Normal
Checking the brake distance
1. Connect the left and right brake pedal with the
brake pedal latch.
2. Check the skid marks of the tires or stability of
the tractor while driving at a suitable speed.
3. If the brake distance is different as shown in the
right figure, adjust the pedal play again.
4. If the vehicle is turned to the left-hand side when
checking the braking distance, tighten the left-
hand brake rod or loosen the right-hand brake
rod with checking the brake pedal play distance.
