5 -47

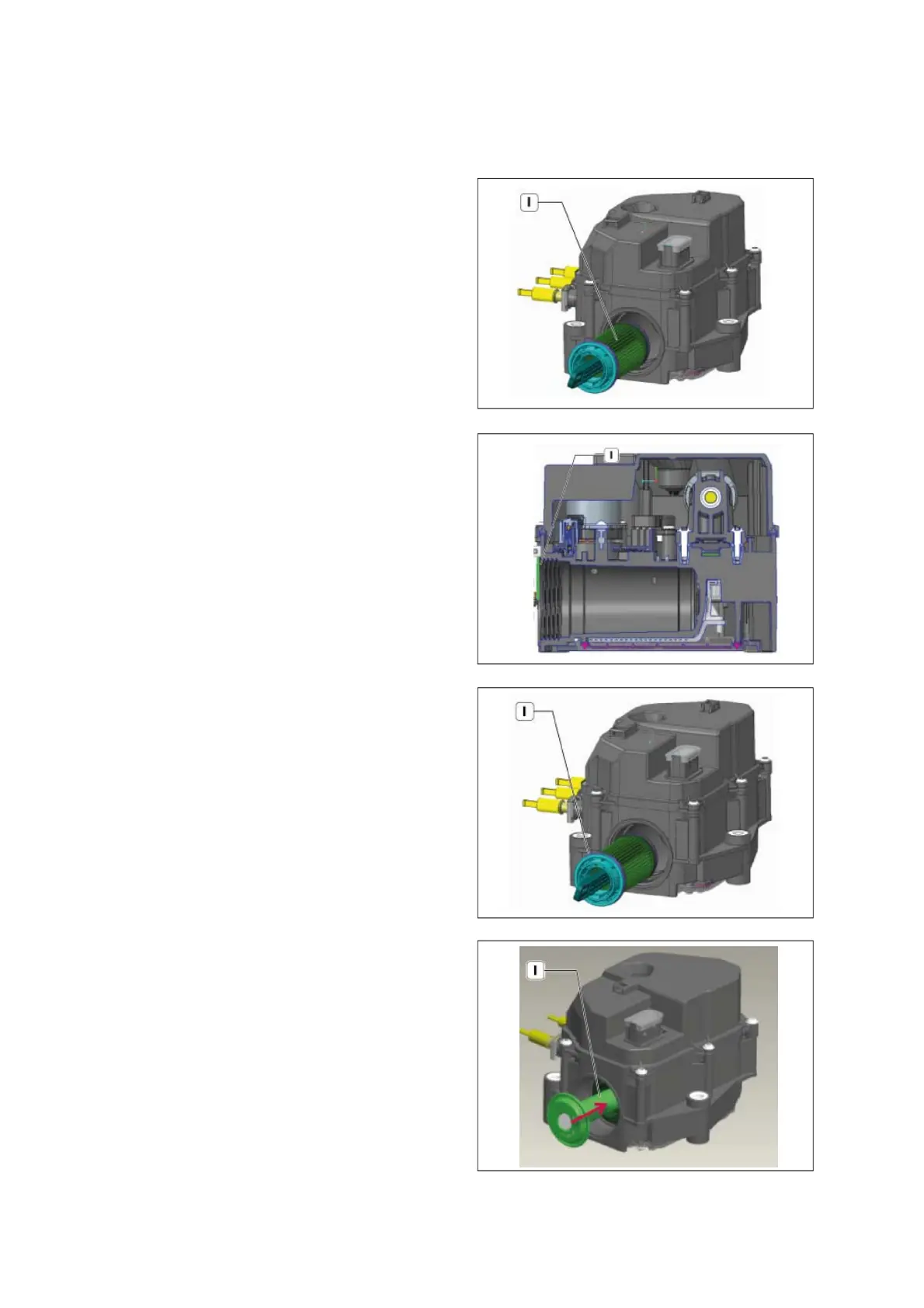

5) Disassemble the filter element.

6) Clean the contact surface.

7) Coat the gasket with the DEF/urea solution and

assemble the new element.

8) Insert the new element support properly.
