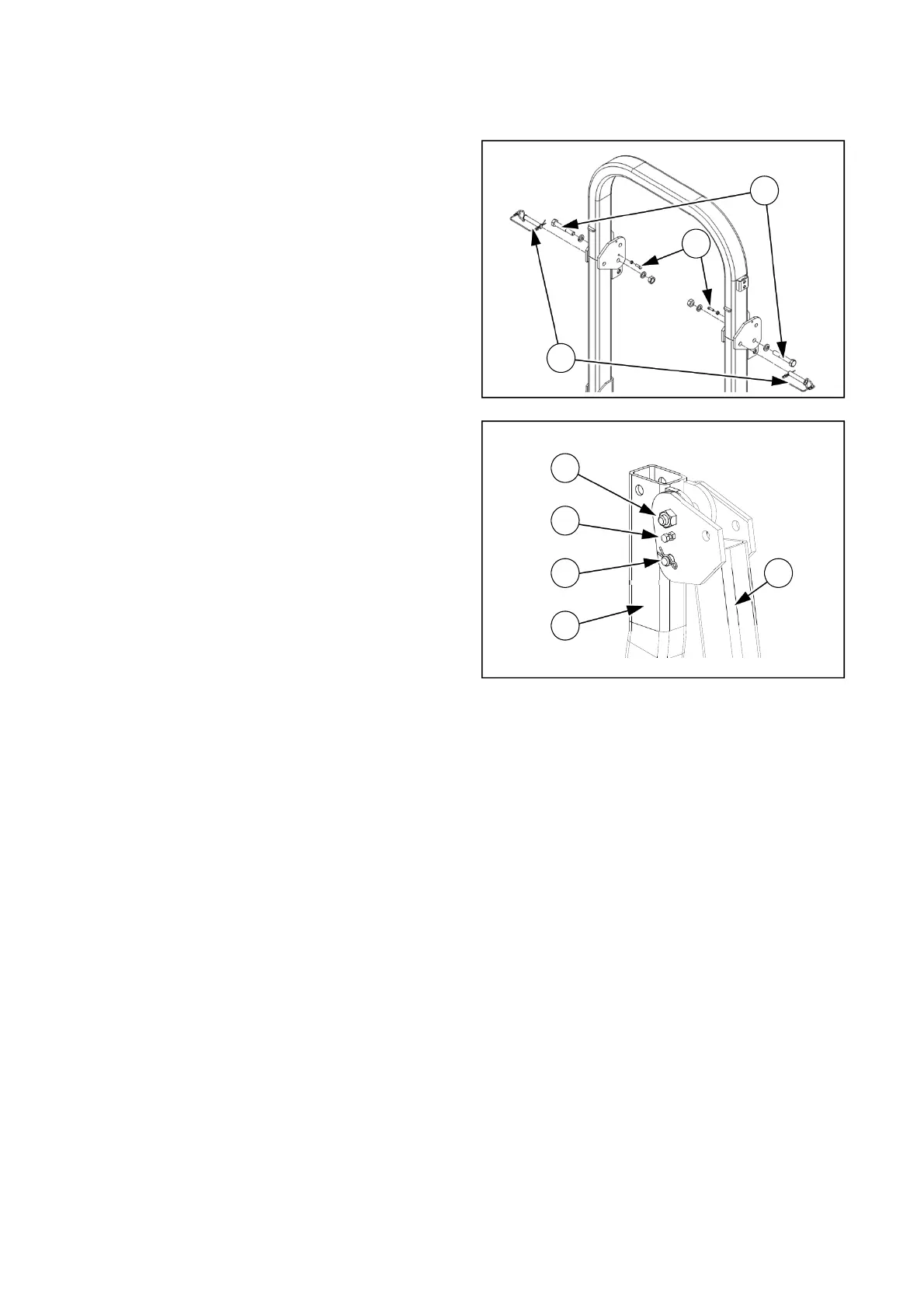

How to fold the upper frame of the roll-bar.
1. Loosen the bolts②④and nuts on both sides. It
is not necessary to remove them completely.
2. Remove the pins③ on both sides and fold the
upper frame backward. Be careful of the
possibility that your body might be hurt by
sudden folding due to its own weight of the
upper frame.
3. Set the holes of the frame ① and ⑤ in line, and
insert the pins③ into the hole and apply the
snap pins.
4. Fasten the bolts②④and nuts on both sides
tightly.
When standing up the upper frame of the roll-bar,
follow the same procedure reversely.
