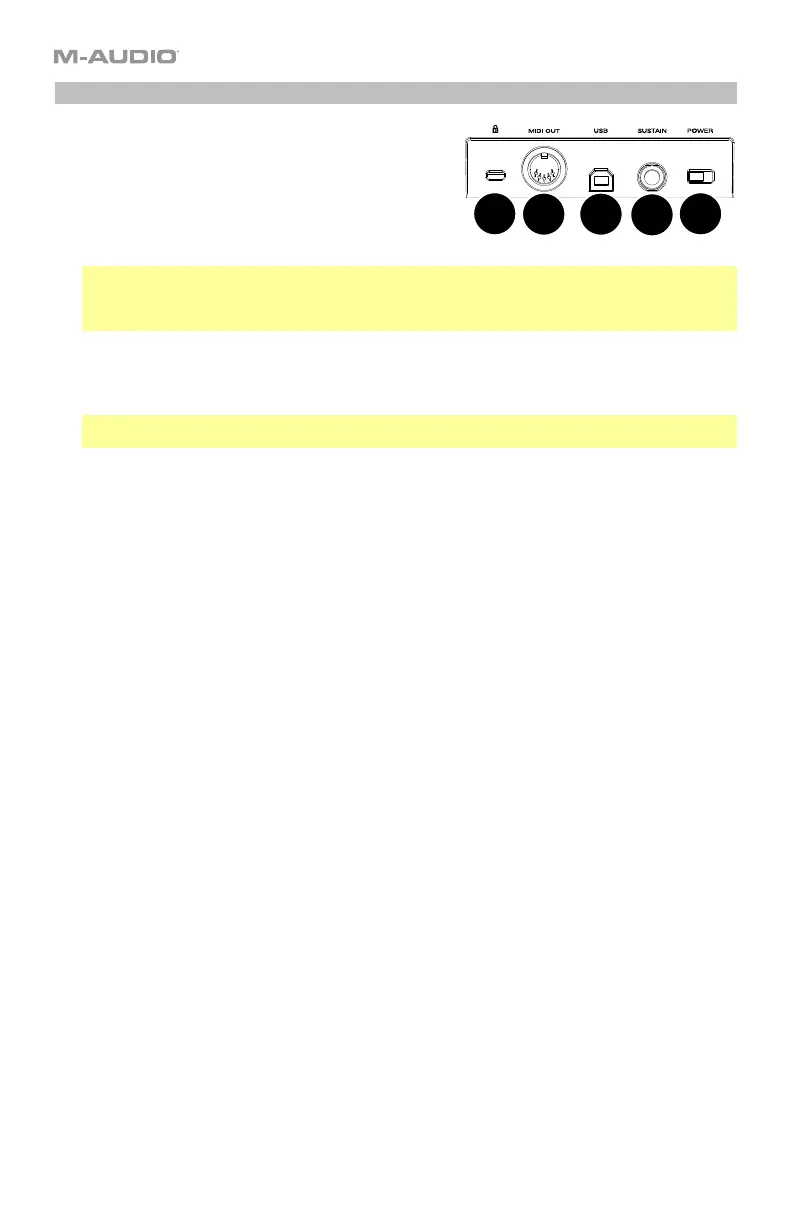

Rear Panel
1. Power Switch: Use this switch to power Oxygen Pro 61
on or off.
2. Sustain Pedal Input: This input accepts a momentary-
contact foot pedal (not included). When pressed, the
pedal by default will sustain the sound you are playing
without you having to keep your fingers pressed down on
the keys. The sustain pedal input can be remapped to
perform a custom MIDI assignment.
Note: The polarity of the sustain pedal is determined by the keyboard upon startup. When an Oxygen
Pro 61 keyboard is powering up, the sustain pedal is assumed to be in the "up" (Off) position. It is
important that the sustain pedal is not in the down position before starting up the keyboard, as the
pedal will then operate in reverse, and notes will sustain when the pedal is not pressed.
3. USB Port: When connected to a computer, the USB port delivers power to the keyboard and transmits
MIDI data.
4. MIDI Out: Use a standard 5-pin MIDI cable to connect this port to a hardware synth or other MIDI
device.
Note: The MIDI output port can send MIDI from the Oxygen Pro 61, your connected computer, or both.
Go into the Global Settings to set what is sent to the MIDI Out.
5. Kensington
®
Lock Connector: This connector is compatible with standard laptop-style Kensington
security cables for theft protection.
1
2
345
