MacDon D60 - Upper Cross Auger (Option); Removing Beater Bars

169441 92 Revision D
3.20 Upper Cross Auger (Option)
The upper cross auger (UCA) (A) improves delivery of very bulky crops across the header and onto the windrow.
1001211
A

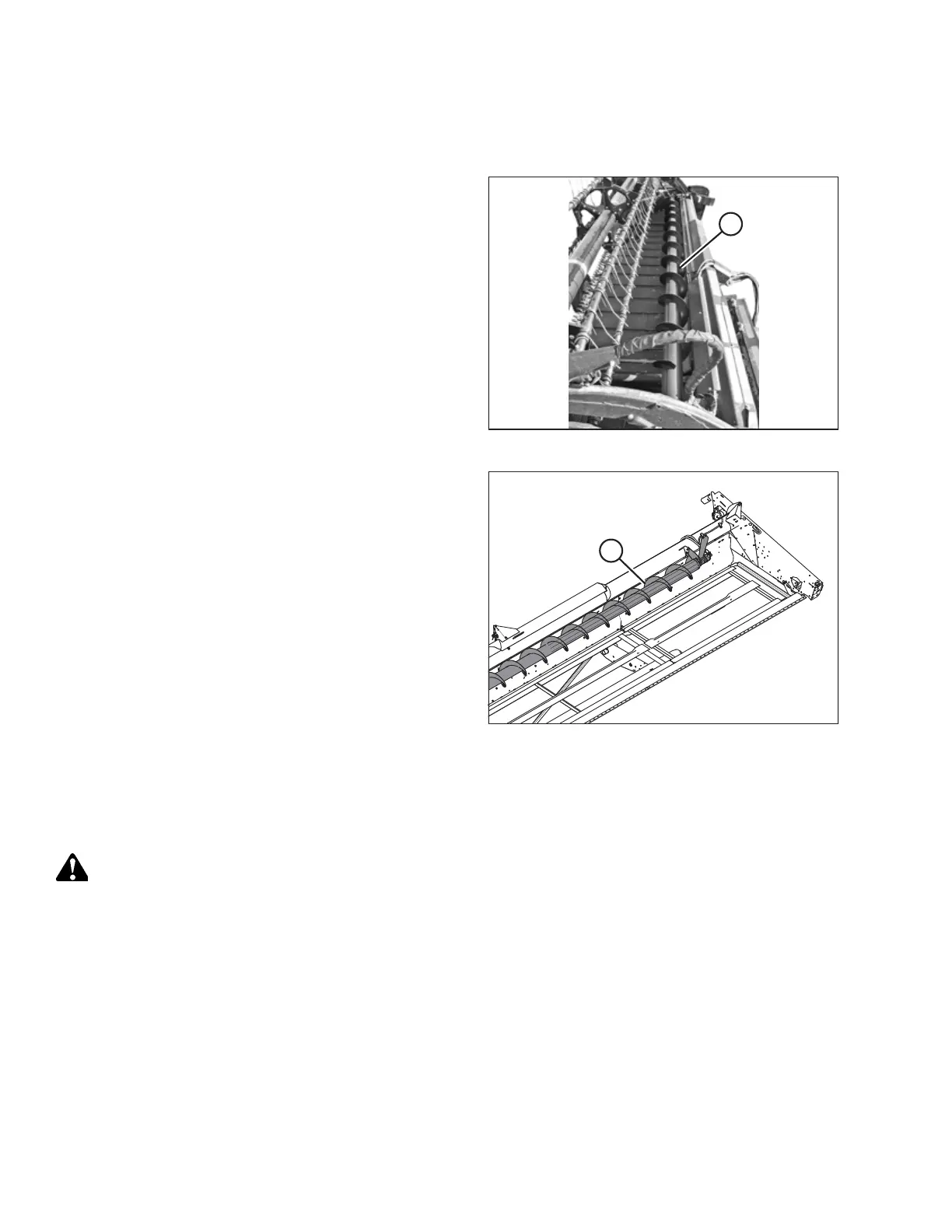

Figure 3.87: Upper Cross Auger with Beater Bars
Beater bars assist in delivering material through the header
opening, but the beater bars are removable if wrapping occurs.
ϭϬϰϬϭϵϴ
A
Figure 3.88: Upper Cross Auger with Bolt-On Flighting
NOTE:
Newer UCA kits do not include or use beater bars; they use bolt-
on flighting instead.
3.20.1 Removing Beater Bars
Beater bars assist in delivering material through the header opening, but the beater bars are removable if wrapping occurs.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
NOTE:
Some newer upper cross augers do not have beater bars.
1. Lower the header to the ground.
2. Shut down the engine, and remove the key from the ignition.
OPERATION
