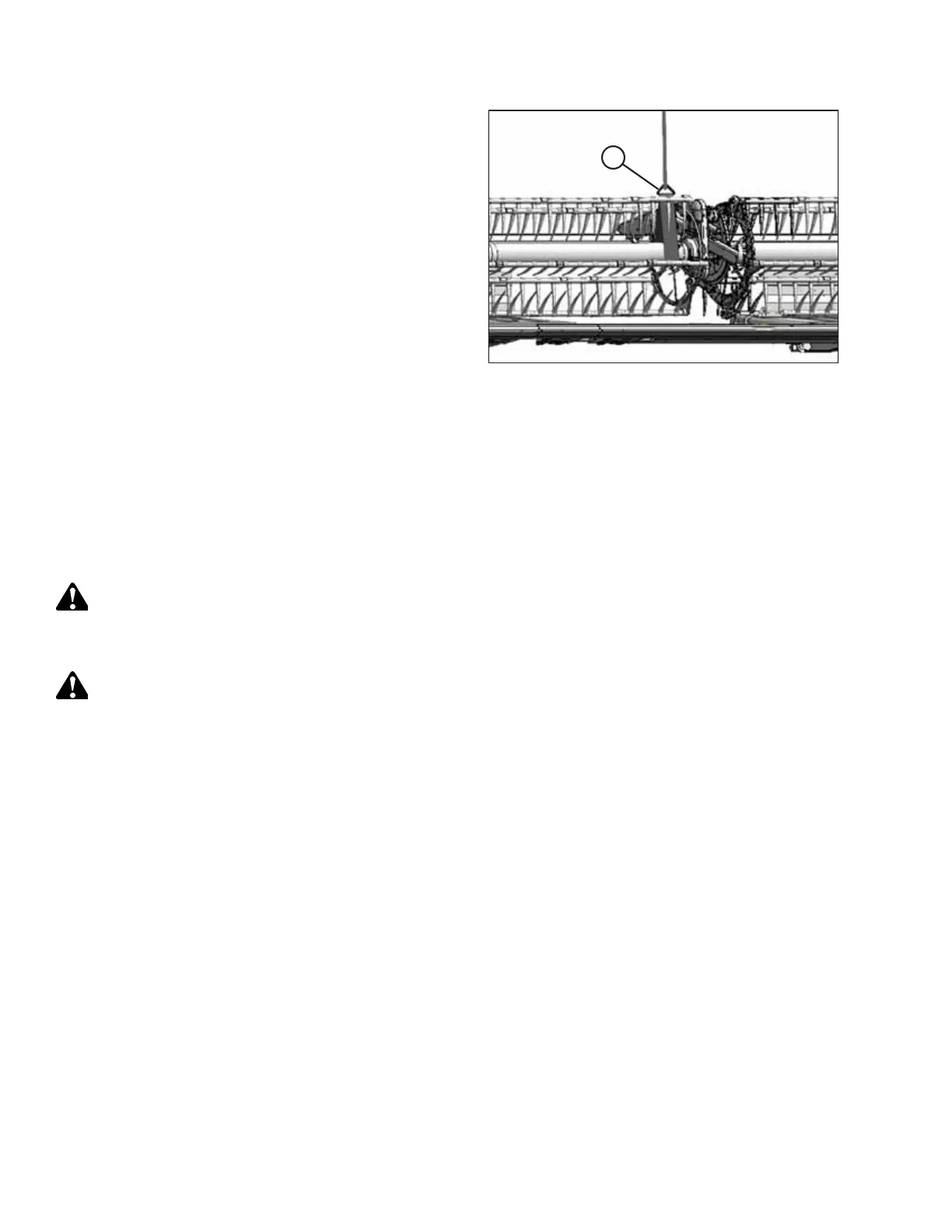

Figure 4.204: Supporting Reel
6. Remove temporary reel support (A).
7. Install the drive cover. For instructions, refer to Installing
Reel Drive Cover, page 204.
Replacing Reel Drive Motor
The reel drive motor does not require regular maintenance or servicing. If problems occur with the motor, remove it and
have it serviced at your MacDon Dealer.
Removing Reel Drive Motor
The reel drive motor does not require regular maintenance or servicing. If problems occur with the motor, remove it and
have it serviced at your MacDon Dealer.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
1. Lower the header fully.
2. Raise the reel fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the reel safety props. For instructions, refer to 3.10.1 Engaging Reel Safety Props, page 36.
5. Remove the reel drive cover. For instructions, refer to Removing Reel Drive Cover, page 202
6. Remove the drive sprocket. For instructions, refer to Replacing Reel Drive Sprocket, page 215.
