MacDon D60 - Installing Endless Draper

169441 186 Revision D
1005496
A
B

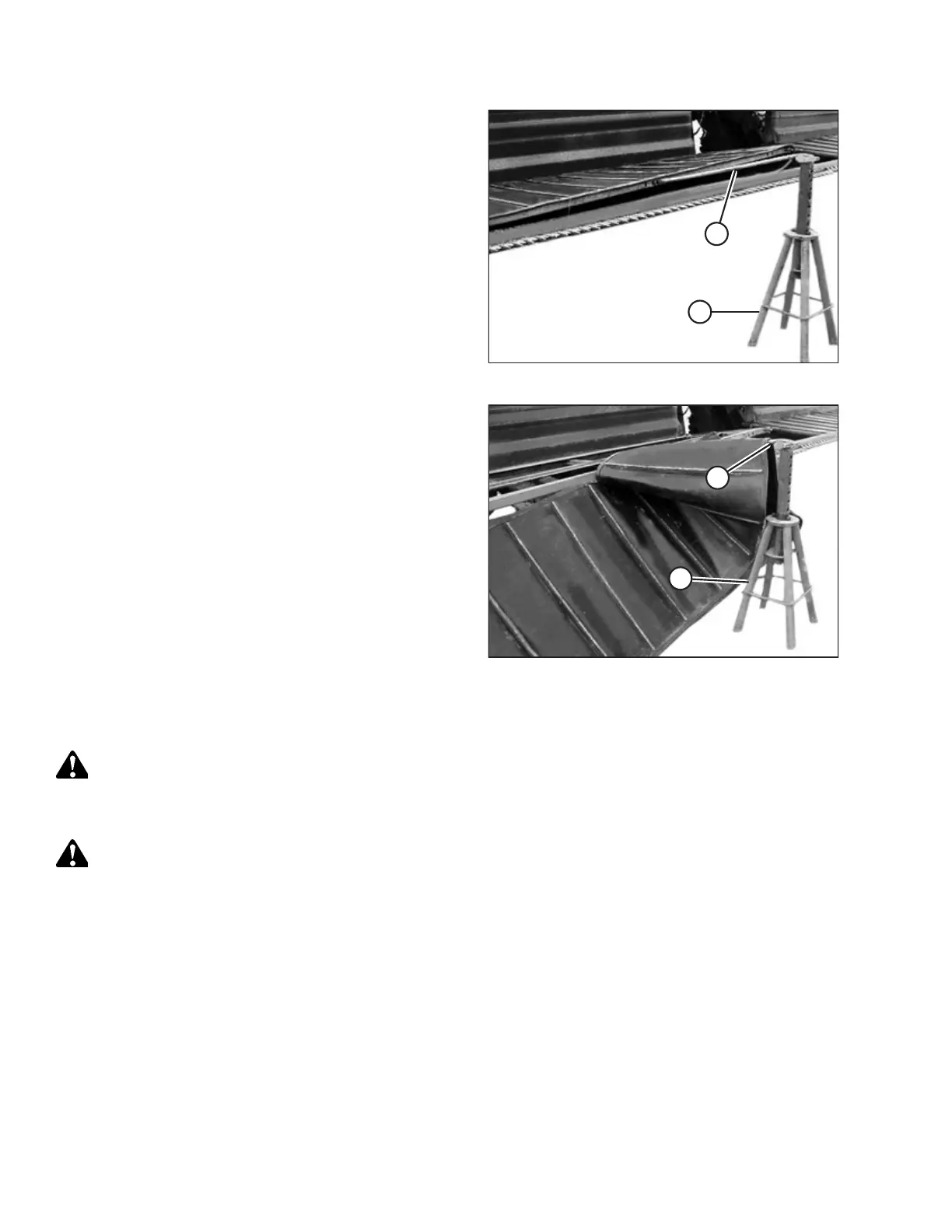

Figure 4.133: Lifting the Deck
10. Insert a pry bar (A) into the hole located in the deck at the
approximate deck mid-point location, and lift the deck clear
of the cutterbar.
NOTE:
Ensure the pry bar is long enough to accommodate the
width of the draper.
11. Support pry bar (A) on a suitably sized stand (B).
1005497
A
B
Figure 4.134: Removing Draper
12. Pull the draper off the deck and onto the pry bar.
13. Remove stand (B), the draper, and pry bar (A).
4.9.5 Installing Endless Draper
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
1. Raise the reel fully.
2. Raise the header fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the header safety props.
5. Engage the reel safety props. For instructions, refer to 3.10.1 Engaging Reel Safety Props, page 36.
