Installing Crop Dividers with Latch Option onto Header – D60
To correctly install crop dividers with the latch option, follow the recommended installation procedure provided here.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
1. Lower the reel fully.
2. Raise the header fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the safety props. For instructions, refer to your windrower operator’s manual.
5. Open or remove the endshields. For instructions, refer to 4.3 Endshields, page 116.
1001837
B
A

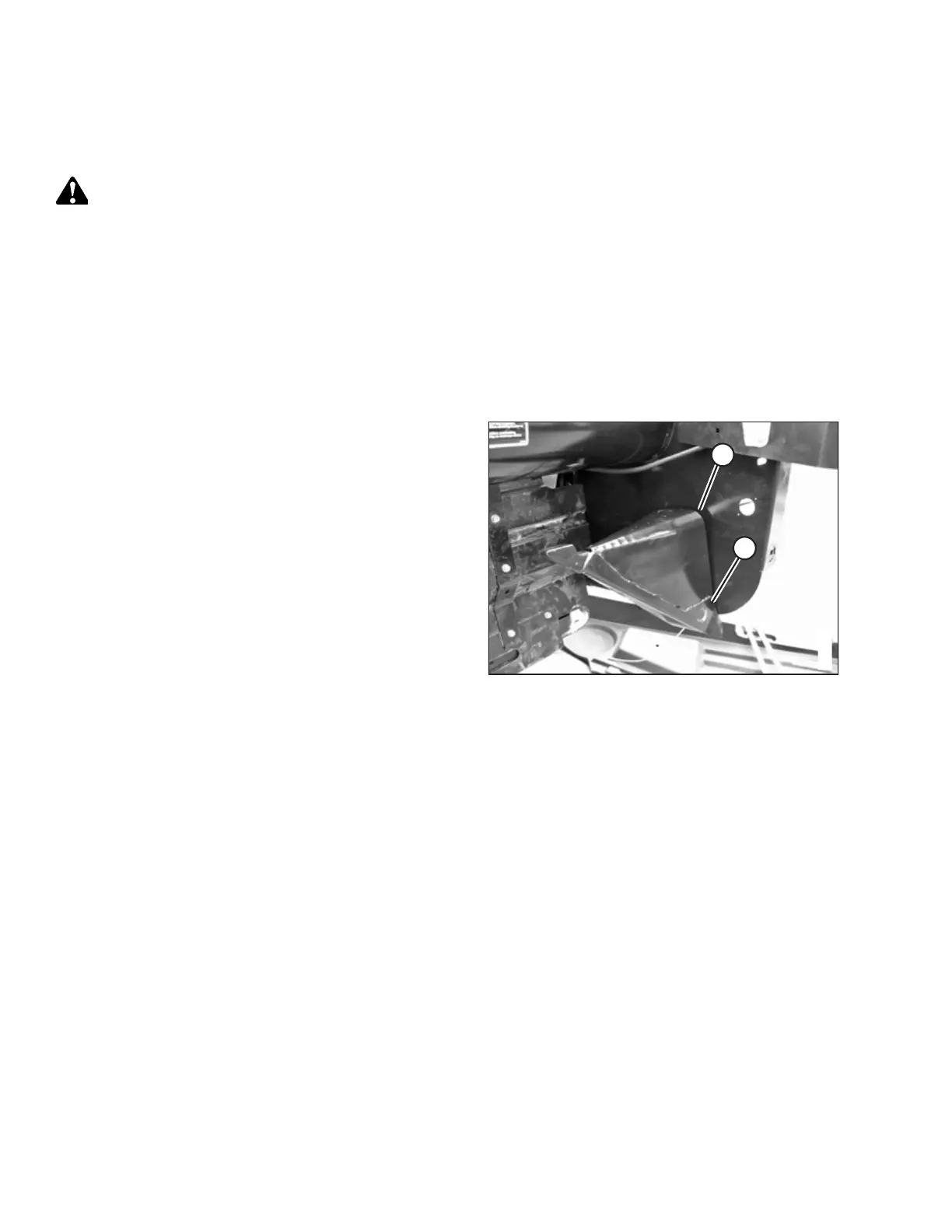

Figure 3.66: Stored Crop Divider
6. Remove the crop divider from the storage location by lifting
the crop divider to disengage lugs (A) at the lower end and
then lowering it slightly to disengage pin (B) from the
endsheet.
