2.3 Component Identification
Operating and maintaining the header requires understanding the names of its main components and their locations.
ϭϬϯϵϳϳϬ
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q

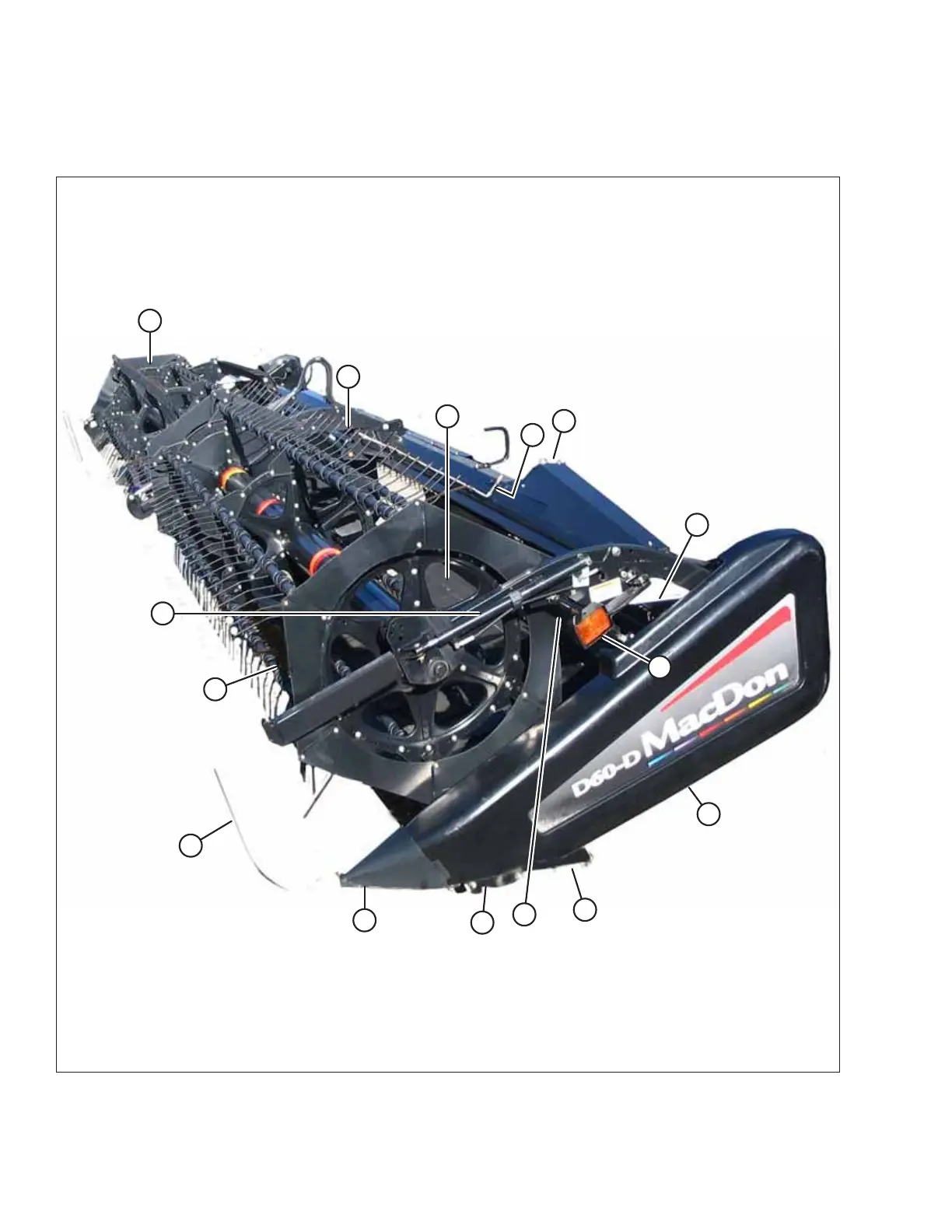

Figure 2.1: Header Components
A - Reel Cam B - Pick-Up Reel Tines C - Drapers
D - Center Reel Arm Prop Handle E - Hydraulic Connections F - Reel Safety Prop
G - Transport Light H - Removable Endshield J - Skid Shoe
K - Reel Lift Cylinder L - Knife Drive Box M - Crop Divider
N - Crop Divider Rod P - Reel Endshield Q - Reel Fore-Aft Cylinder
