4.3.5 Installing Hinged Endshield

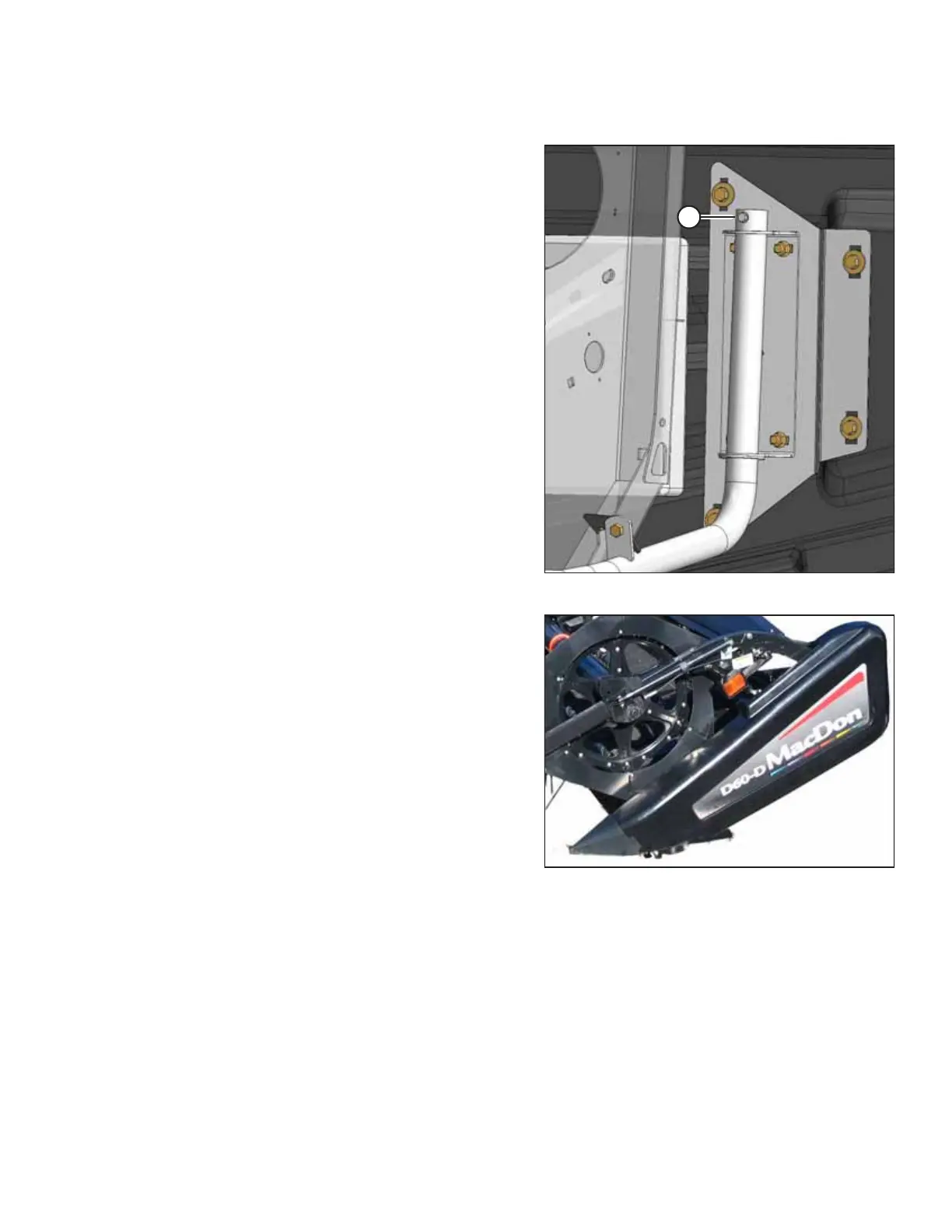

Figure 4.18: Endshield Support
1. Position the endshield on the support tube.
2. Secure in place with screw (A).
Figure 4.19: Left Endshield
3. Close the endshield. For instructions, refer to 4.3.2 Closing
Hinged Endshields, page 117.
