MacDon D60 - Moving Rear (Right) Wheels into Transport Position

169441 105 Revision D
1010515
A
B
C

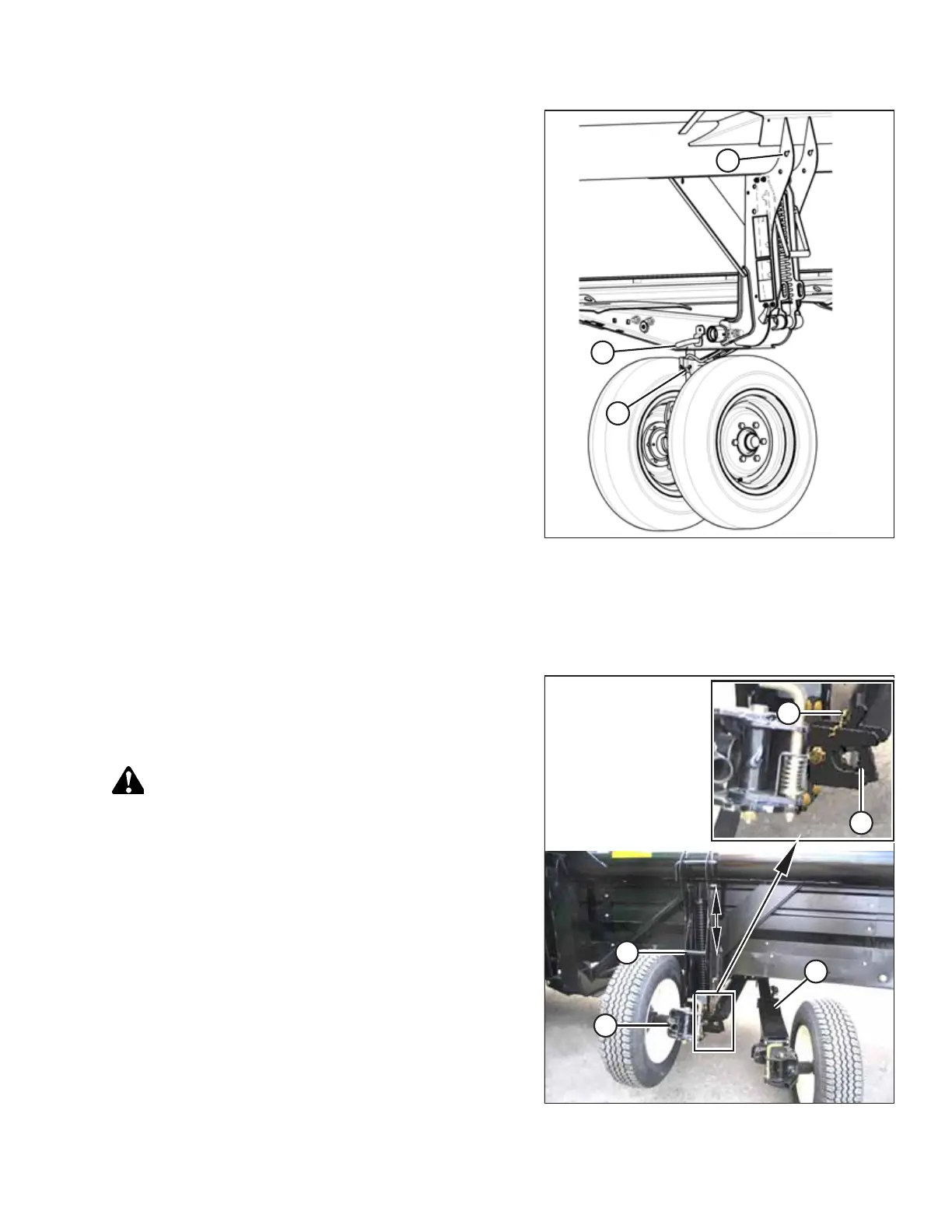

Figure 3.110: Left Front Wheels
9. Remove pin (A) from storage at the top of leg (B).
10. Swivel the wheels clockwise until connector (C) is turned
towards the left end of the header.
11. Insert pin (A) and turn to lock.
12. Lower the header until the left wheels are just touching the
ground.
Moving Rear (Right) Wheels into Transport Position
The rear wheels are located farthest the towing vehicle. To prepare for transport, the wheels must be lowered to the
ground, expanded to transport width, and rotated to face the direction of travel.
1001631
B
A
D
E
C
Figure 3.111: Separating Axles
1. Remove hairpin (A) from latch (B).
2. Lift latch (B), disengage right axle (C), and lower to the
ground.
CAUTION
Stand clear of the wheels and release the linkage carefully; the
wheels will drop once the mechanism is released.
3. Pull handle (D) carefully to release the spring and lower the
wheel to the ground.
4. Lift the wheel and linkage with handle (E) and position the
linkage in the bottom slot.
5. Lower handle (C) to lock.
OPERATION
