MacDon D60 - Installing Draper Drive Roller

169441 190 Revision D
ϭϬϯϵϵϴϳ
A
B

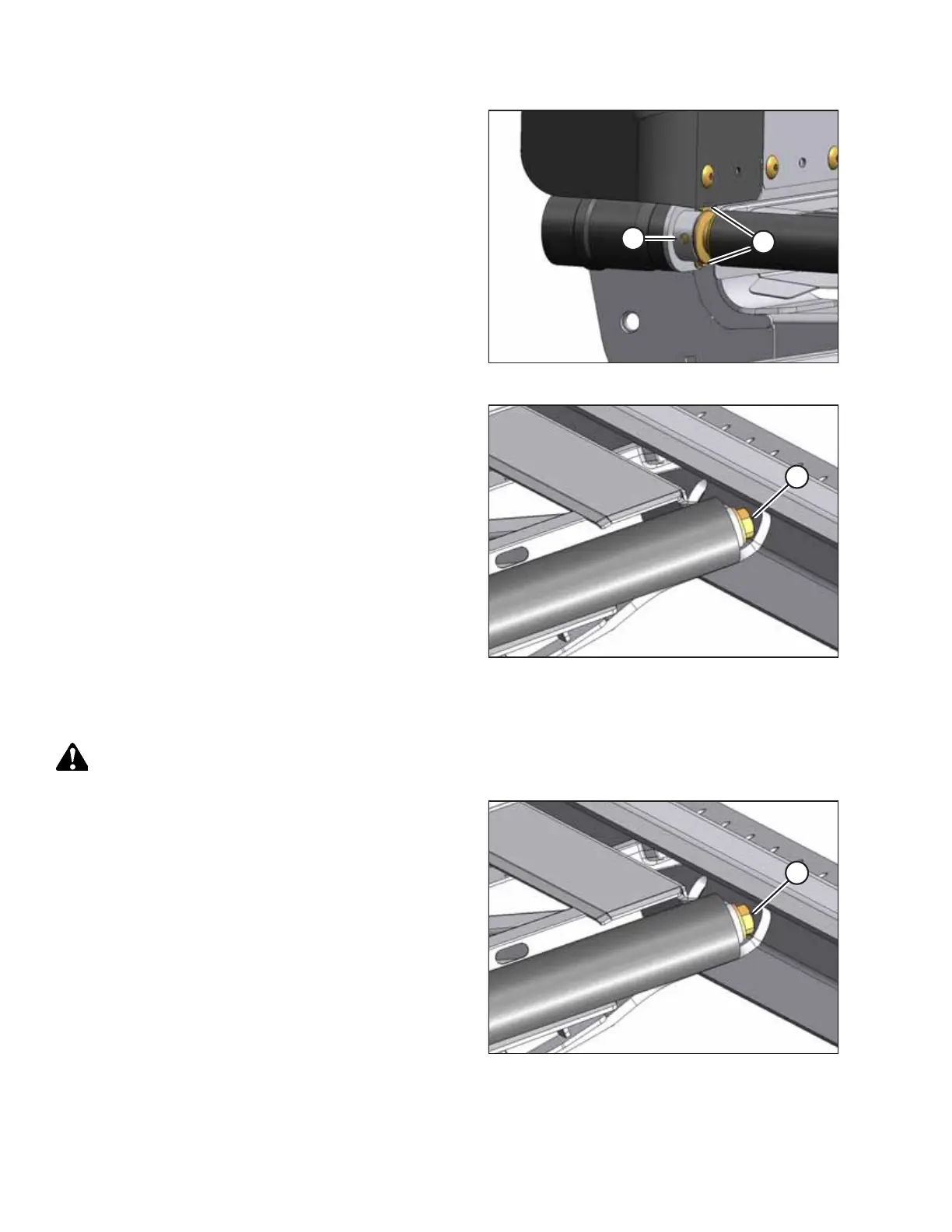

Figure 4.141: Motor End of Drive Roller
8. Loosen the two set screws in access hole (A) in the drive
roller hub at the motor end.
9. Remove two bolts (B) that secure the hydraulic motor to
the arm, and then pull the motor off the roller.
1001588
A
Figure 4.142: Forward End of Drive Roller
10. Remove bolt (A) at the forward end of the roller, and then
remove the roller from the deck.
Installing Draper Drive Roller
DANGER
Engage the header safety and reel props before working under the header or the reel.
1001588
A
Figure 4.143: Forward End of Drive Roller
1. Position the roller in the deck arms, and secure the forward
end with bolt (A) and a washer. Do NOT tighten at this time.
2. Apply SAE multi-purpose grease to the motor shaft,
position the motor on the roller arm, and engage the motor
shaft into the roller.
MAINTENANCE AND SERVICING
