MacDon D60 - Adjusting Non-Hinged Endshields

169441 125 Revision D
ϭϬϯϵϵϲϭ
A

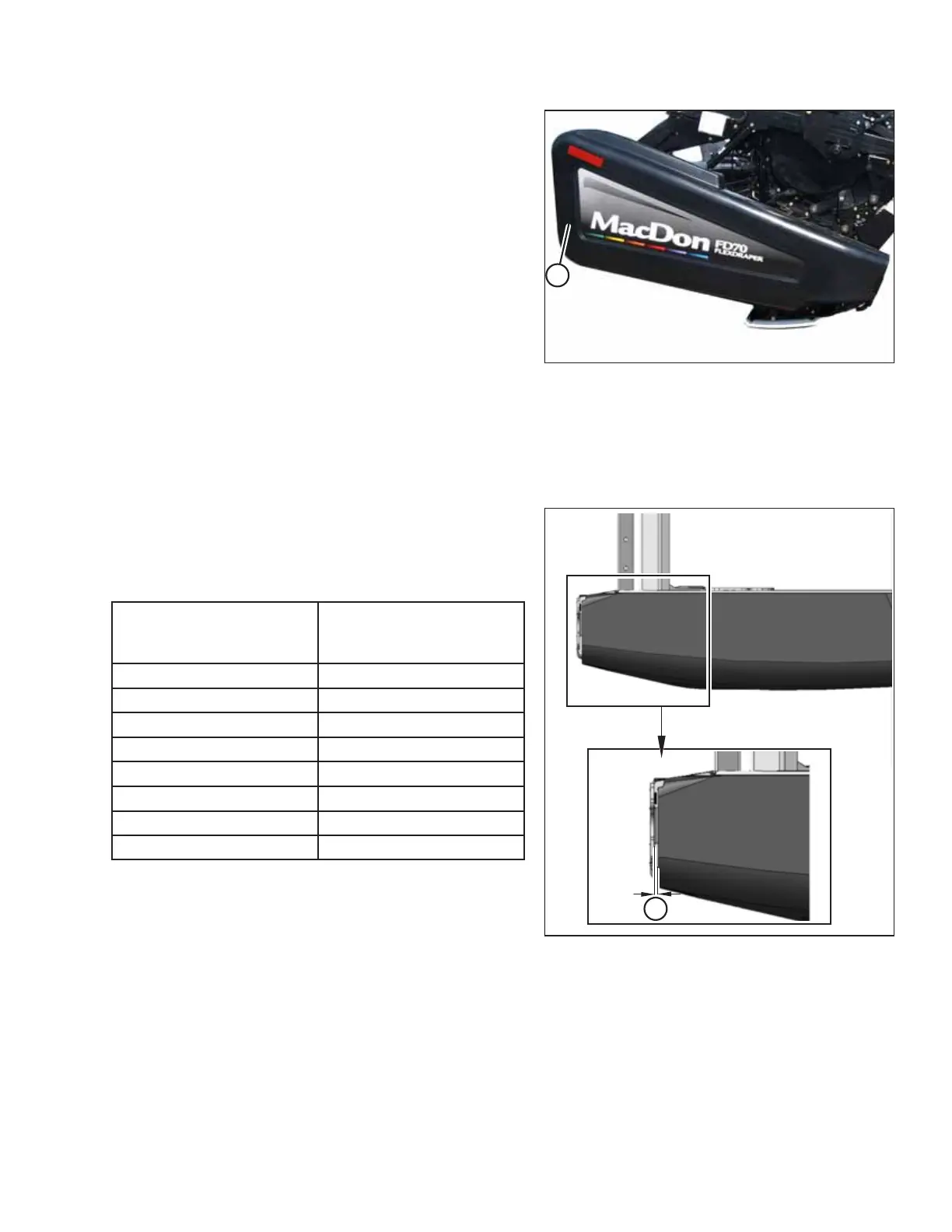

Figure 4.23: Right Endshield
2. Push the endshield in at location (A), opposite the latch.
The endshield will self-latch.
4.3.8 Adjusting Non-Hinged Endshields
Polyethylene endshields expand or contract when subjected to large temperature changes. The position of the latch pin
can be adjusted to compensate for dimensional changes.
1001672
X
Figure 4.24: Gap Between Endshield and Frame
1. Measure gap (X) between the front end of the endshield
and the header frame and compare the measurement to
the values provided in this table.
Table 4.2 Gap (X) Chart
Temperature
°C (°F)
Gap (X) between Endshield
and Frame
mm (in.)
-4 (25)
28 (1 1/8)
7 (45) 24 (1)
18 (65)
20 (13/16)
29 (85)
16 (5/8)
41 (105)
12 (1/2)
52 (125)
8 (5/16)
63 (145)
4 (3/16)
89 (165)
0
MAINTENANCE AND SERVICING
