169441 245 Revision D
Chapter 5: Options and Attachments
The following options and attachments are available for use with your header. See your MacDon Dealer for availability and
ordering information.
5.1 Reel Kits
5.1.1 Lodged Crop Reel Finger Kit
The steel fingers provided in the Lodged Crop Reel Finger kit attach to the ends of every other tine tube and help to clear
material in heavy, hard-to-cut crops such as lodged rice.

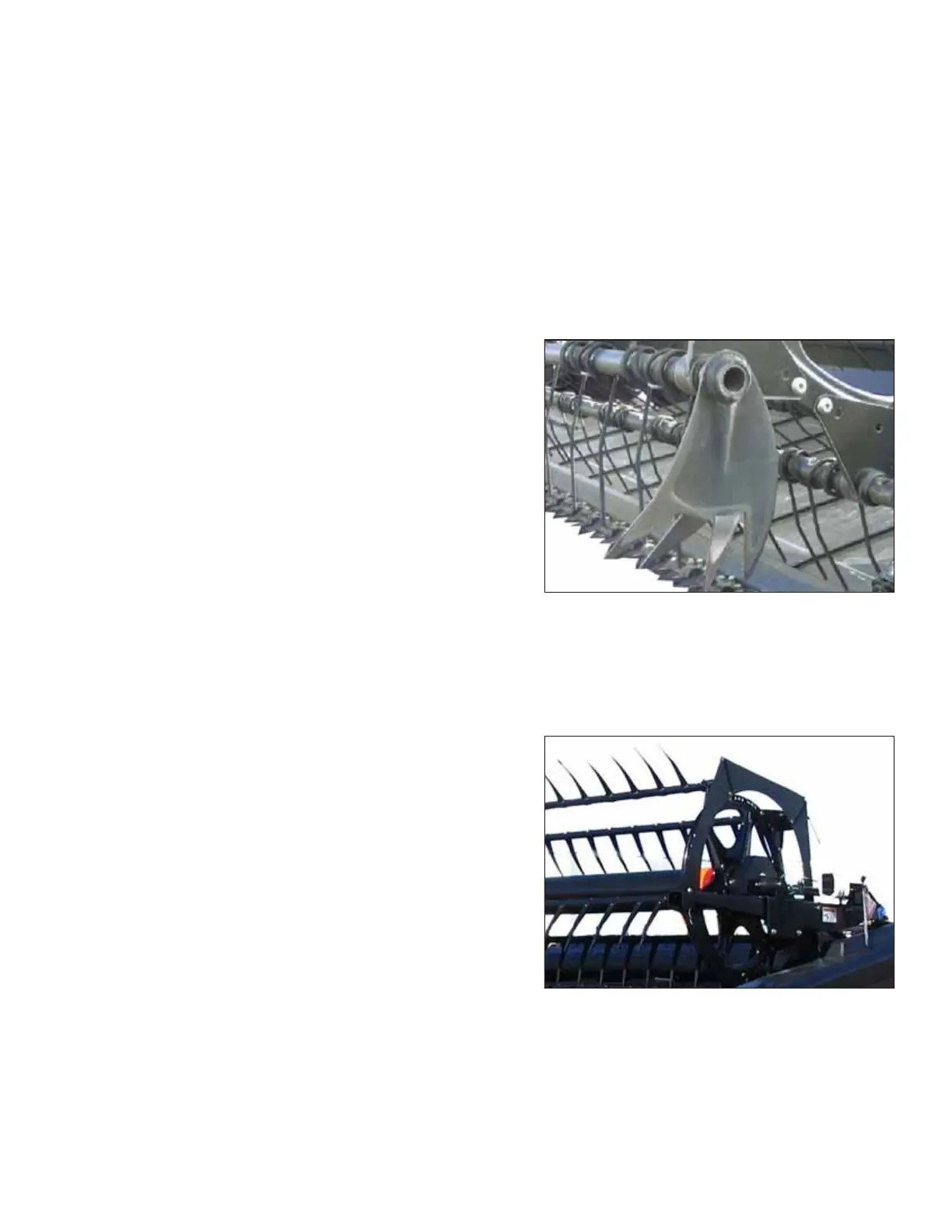

Figure 5.1: Lodged Crop Finger
Each kit contains three fingers for the cam end of the reel and
three fingers for the tail end. Hardware and installation
instructions are included in the kit.
Two kits are required to modify each bar of a 6-bat reel.
MD #B4831
5.1.2 Reel Endshield Kit
The steel shields provided in the Reel Endshield kit attach to the ends of the reels and help to clear material in heavy, hard-
to-cut crops.
Figure 5.2: Reel Endshields
Hardware and installation instructions are included in the kit.
See your MacDon Dealer for more information.
