MacDon D60 - D50 Single-Knife Header with Manual Deck Shift

169441 136 Revision D
4.5.2 D50 Single-Knife Header with Manual Deck Shift
This schematic can be used to troubleshoot hydraulic problems on your D50 single-reel header with manual deck shift, with
or without an upper cross auger.
A
B
C
D E F
G

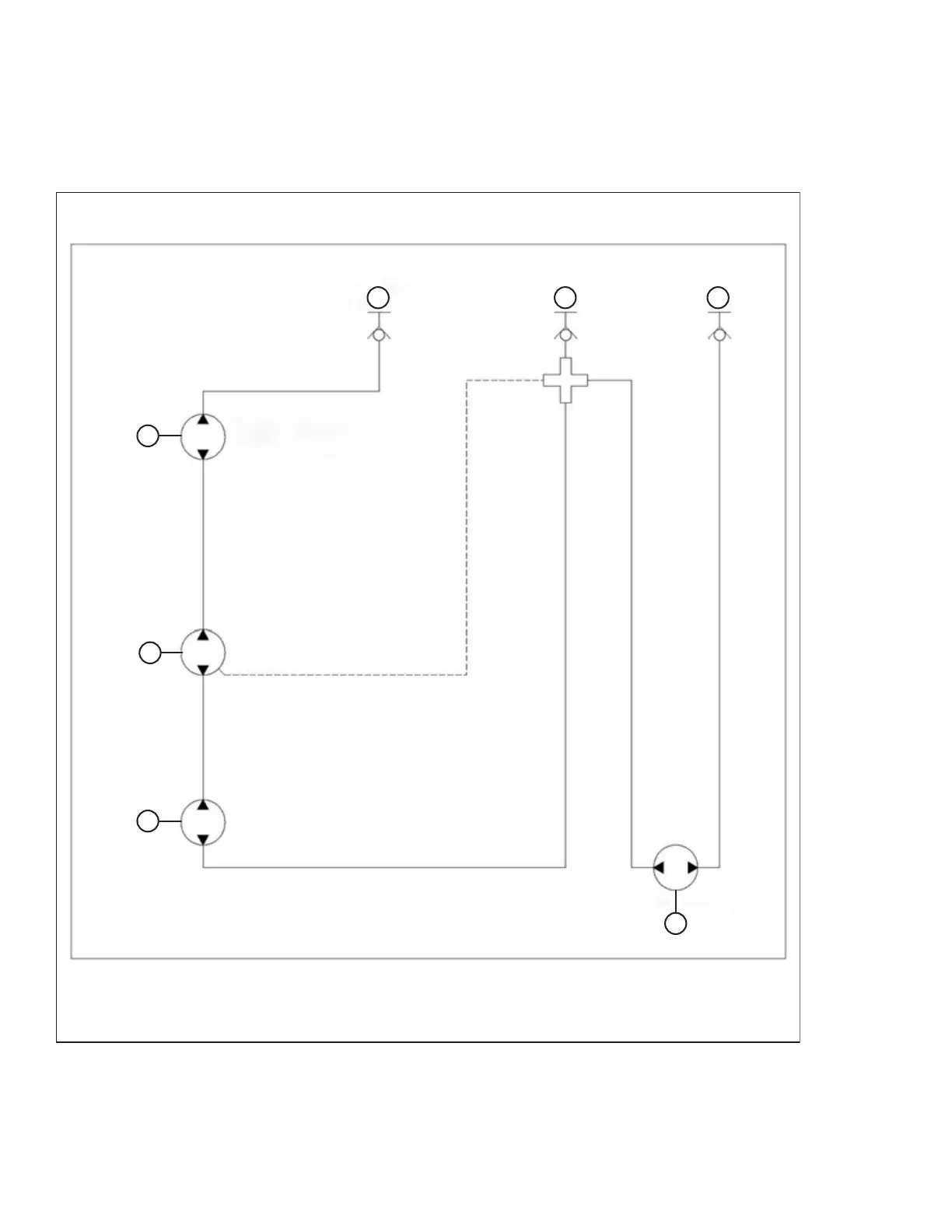

Figure 4.39: Hydraulic Schematic for a D50 Single-Knife Header with Manual Deck Shift
A - Right Draper Motor B - Left Draper Motor C - Upper Cross Auger (if Installed)
D - Draper Pressure E - Return F - Knife Pressure
G - Left Knife Drive Motor
MAINTENANCE AND SERVICING
