MacDon D60 - Hydraulic Schematics; D50 or D60 Single-Reel Header

169441 135 Revision D
4.5 Hydraulic Schematics
Refer to the schematics that applies to your machine.
4.5.1 D50 or D60 Single-Reel Header
This schematic can be used to troubleshoot hydraulic problems on your D50 or D60 single-reel header.
ϭϬϰϬϮϯϬ
A
B
C
D
E
F
G
H
J
K

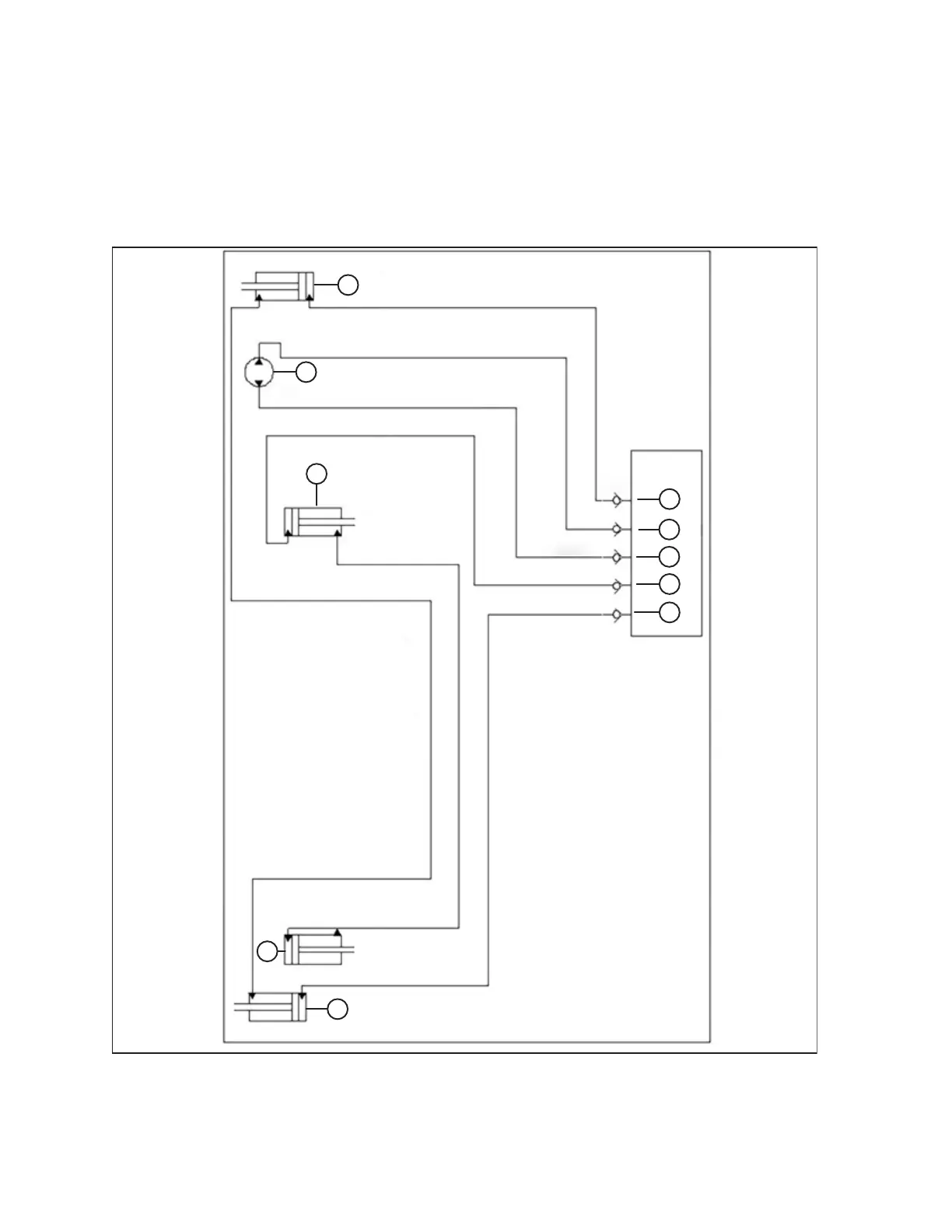

Figure 4.38: Hydraulic Schematic for a D50 or D60 Single-Reel Header
A - Right Fore-Aft Cylinder B - Reel Motor C - Right Lift Cylinder
D - Left Lift Cylinder E - Left Fore-Aft Cylinder F - Aft
G - Pressure H - Return J - Lift
K - Fore
