3.13.2 Adjusting Size of Delivery Opening on Header with Manual Deck Shift – D50
Both draper decks can be moved manually to adjust the size of the delivery opening.
Both decks can be positioned to set the delivery opening at three widths:
• Wide: 1925 mm (76 in.)
• Medium: 1875 mm (74 in.)
• Narrow: 1715 mm (67.5 in.)
The decks are factory-set at the Medium width position.
To change the delivery opening, follow these steps:

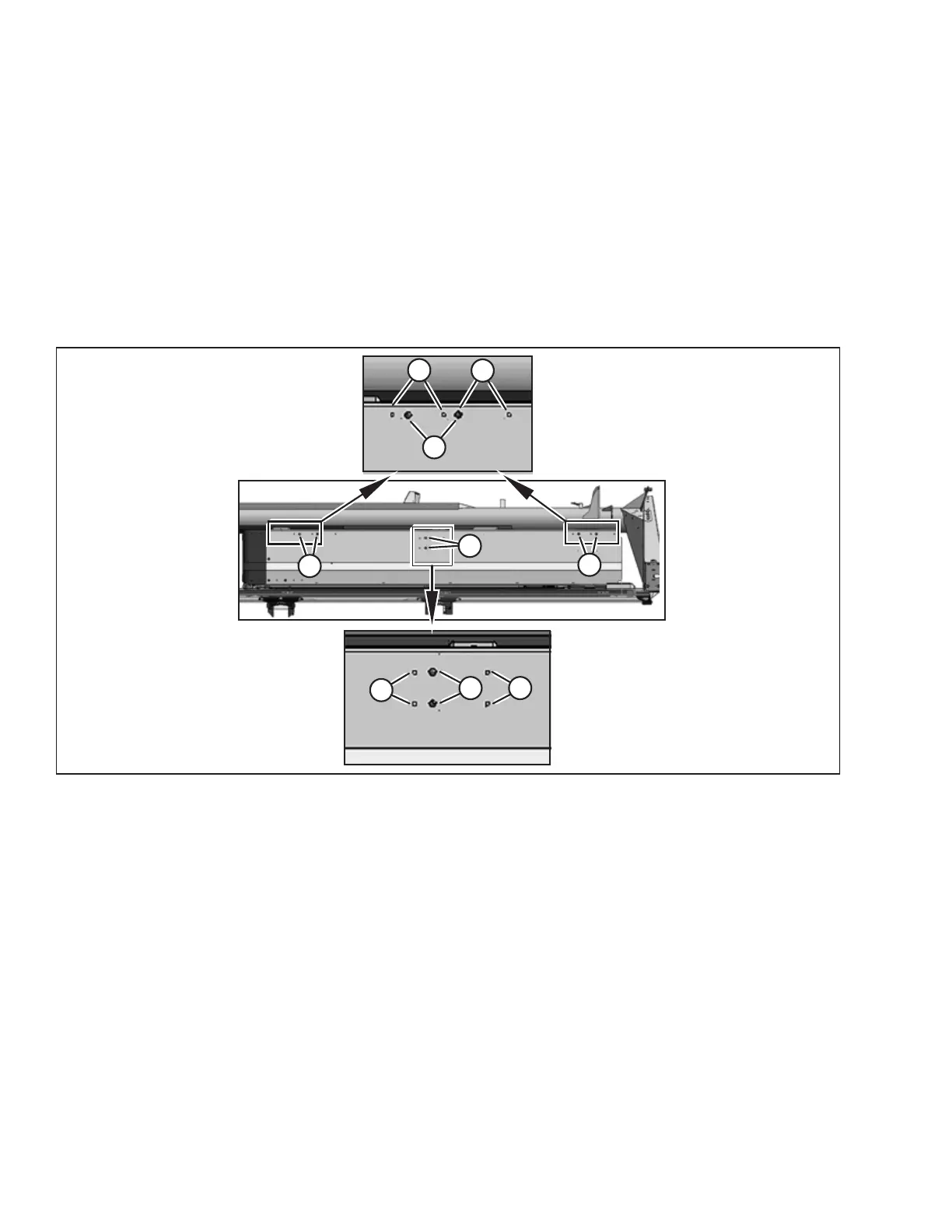

Figure 3.76: D50 Left Deck – Right Deck is Opposite
1. Remove six bolts (D) from the backsheet, and move the deck so that the holes at the desired opening width line up
(for a wide opening, holes [A]; for a medium opening, holes [B]; and for a narrow opening, holes [C]).
2. Re-install and tighten bolts (D).
3. Repeat these steps on the other deck.
3.13.3 Double Windrowing
Double windrowing is laying two swaths side-by-side. Larger capacity combines or forage harvesters can then pick up twice
as much material in a single pass, saving time and fuel.
Double-windrowing is available on D60 7.6–12.2 m (25–40 ft.) headers. The end delivery opening size (1710 mm [67 in.]) is
designed to give minimal clearance between the first windrow laid and the standing crop. The center delivery opening size
from the factory is 1870 mm (74 in.), with an adjustable range of 1540–1970 mm (61–78 in.).
NOTE:
If using end delivery with a 9.1 m (30 ft.) header equipped with the Slow Speed Transport option, the crop can interfere
with the outboard wheel. To rectify the problem, remove the outboard wheel.
