MacDon D60 - Removing Endless Draper

169441 184 Revision D
1. Raise the reel fully.
2. Raise the header fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the header safety props.
5. Engage the reel safety props. For instructions, refer to 3.10.1 Engaging Reel Safety Props, page 36.
6. Check the deck height before installing the drapers. For instructions, refer to 4.9.8 Adjusting Deck Height, page 195.
1001169

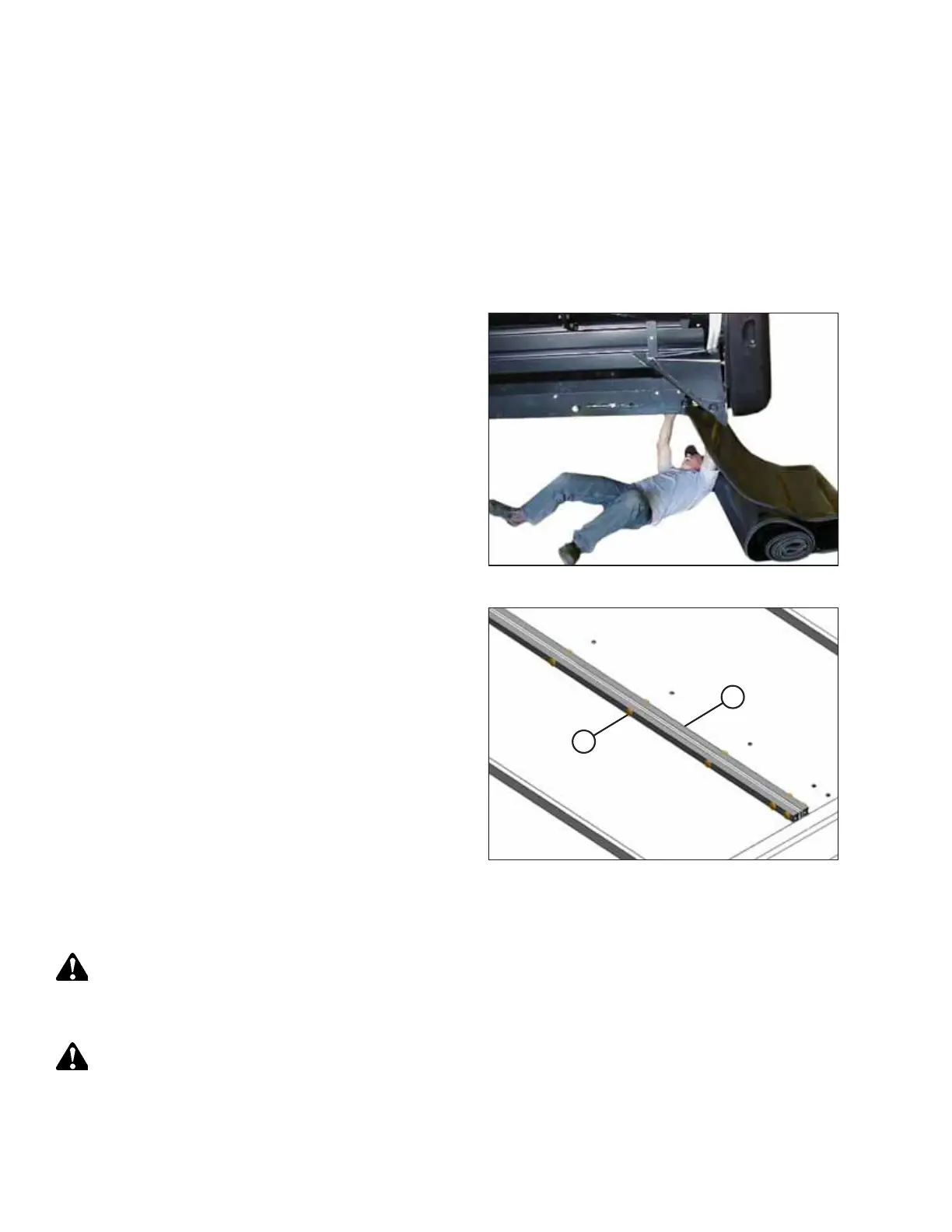

Figure 4.129: Installing Draper
7. Apply talc, baby powder, or talc/graphite lubricant mix to
the draper surface that forms the seal with the cutterbar
and to the underside of the draper guides.
8. Insert the draper into the deck at the outboard end under
the rollers. Pull the draper into the deck while feeding it at
the end.
9. Feed in the draper until it can be wrapped around the drive
roller.
10. Insert the opposite end of the draper into the deck over the
rollers. Pull the draper fully into the deck.
1010063
A
B
Figure 4.130: Draper Joint
11. Attach the ends of the draper with tube connectors (B),
screws (A) (with the heads facing the center opening),
and nuts.
12. Adjust the draper tension. For instructions, refer to 4.9.1
Adjusting Draper Tension, page 181.
4.9.4 Removing Endless Draper
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
MAINTENANCE AND SERVICING
