MacDon D60 - Page 233

169441 221 Revision D
1001325
A
B
C

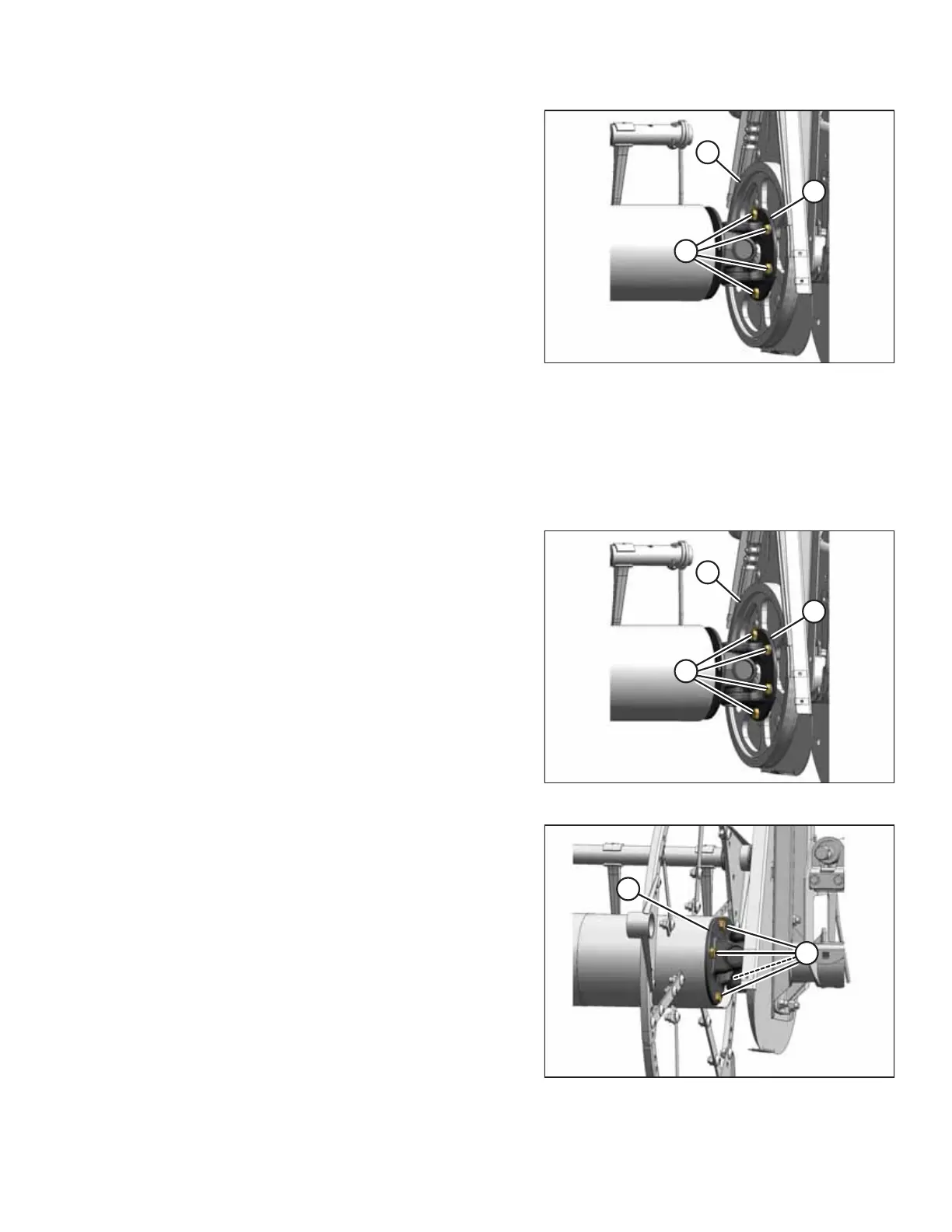

Figure 4.201: U-Joint
8. Remove six bolts (A) attaching U-joint flange (B) to driven
sprocket (C).
9. Remove the U-joint.
NOTE:
It may be necessary to move the right reel sideways for the
U-joint to clear the tube.
Installing Double-Reel U-Joint
Once the old U-joint has been removed, a new one can be installed.
NOTE:
It may be necessary to move the right reel sideways for the U-joint to clear the reel tube.
1001325
A
B
C
Figure 4.202: U-Joint
1. Position U-joint flange (B) onto driven sprocket (C) as
shown. Install six bolts (A) and hand-tighten them.
NOTE:
Do NOT torque the bolts.
1001322
A
B
Figure 4.203: U-Joint
2. Position the right reel tube against the reel drive and
engage the stub shaft into the U-joint pilot hole.
3. Rotate the reel until the holes in the end of the reel tube
and U-joint flange (B) line up.
4. Install four bolts (A).
5. Torque the bolts to 95–108 Nm (70–80 lbf∙ft).
MAINTENANCE AND SERVICING
