Removing Double-Reel U-Joint
If the double-reel U-joint is worn or damaged, it will need to be replaced.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
1. Lower the header fully.
2. Raise the reel fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the reel safety props. For instructions, refer to 3.10.1 Engaging Reel Safety Props, page 36.
5. Remove the drive cover. For instructions, refer to Removing Reel Drive Cover, page 202.

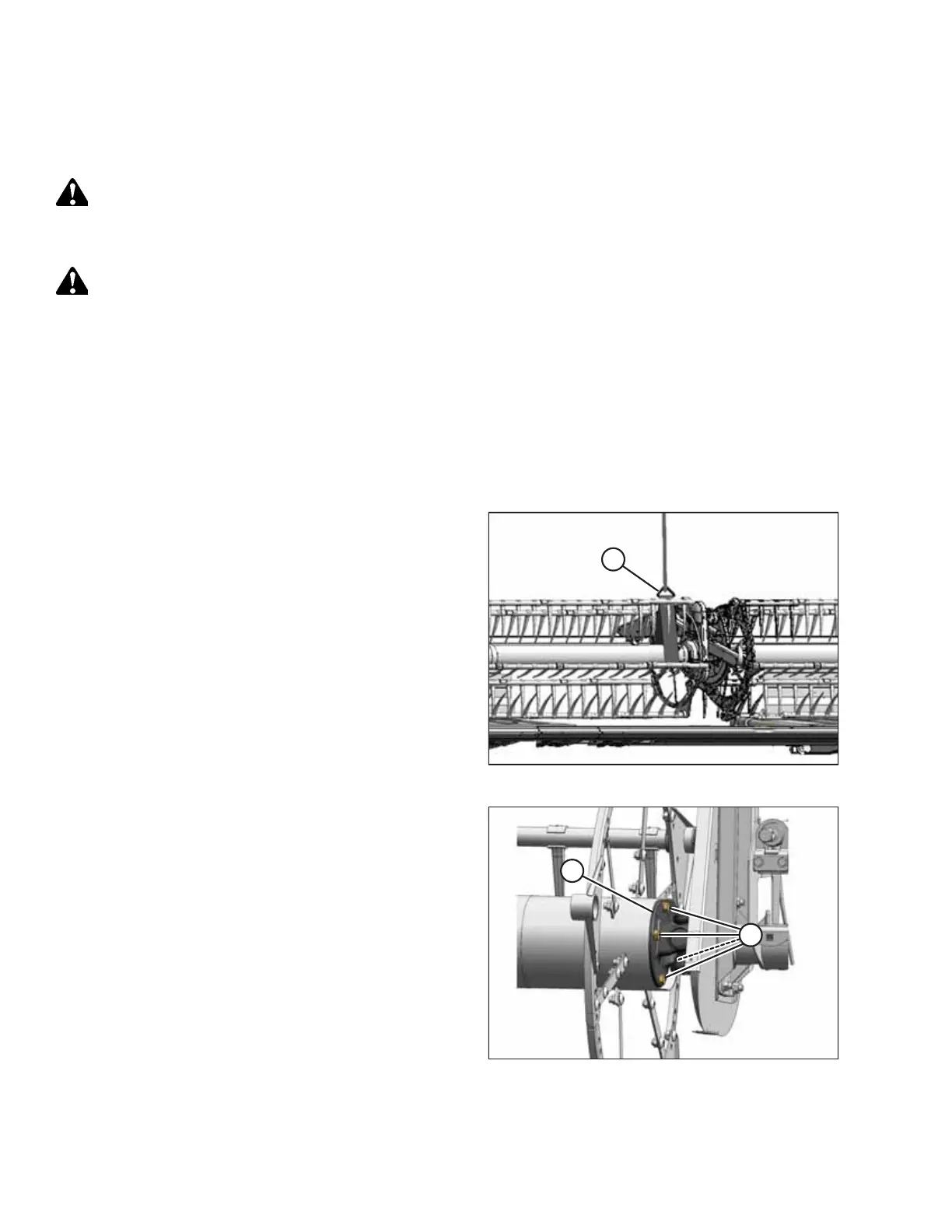

Figure 4.199: Supporting Reel
6. Support the inboard end of the right reel with a front end
loader and nylon slings (A) (or equivalent lifting device).
IMPORTANT:
Avoid damaging or denting the center tube by supporting
the reel as close to the cam end disc as possible.
Figure 4.200: U-Joint
7. Remove the four bolts (A) securing the reel tube to the U-
joint flange (B), and move the reel sideways.
