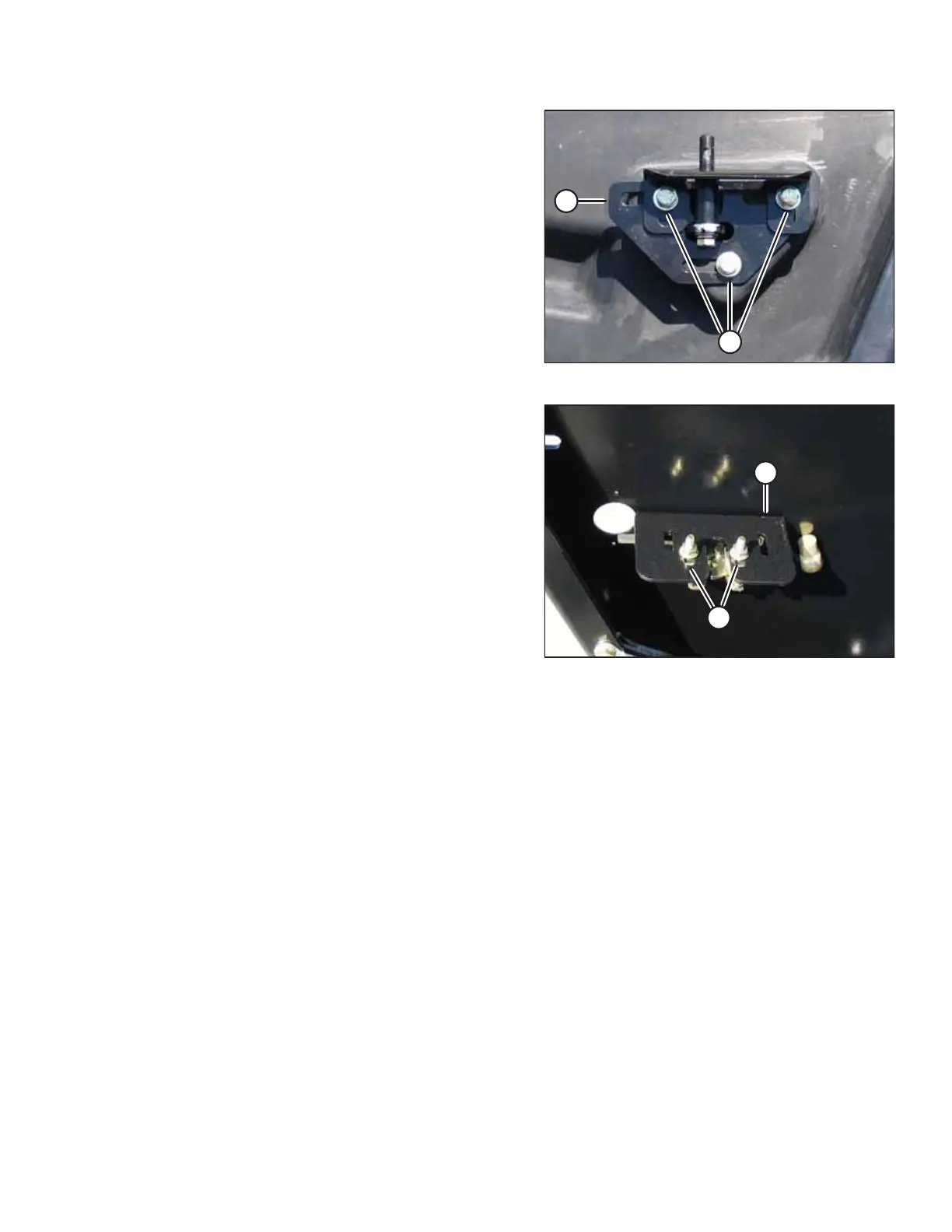

Figure 4.28: Latch Assembly
5. Re-open the endshield and tighten bolts (A).
Figure 4.29: Latch
6. Loosen bolts (A) on latch (B), and adjust the latch as
required to achieve a snug fit between the aft end of the
endshield and the header frame.
7. Tighten bolts (A).
8. Close the endshield.
MAINTENANCE AND SERVICING
