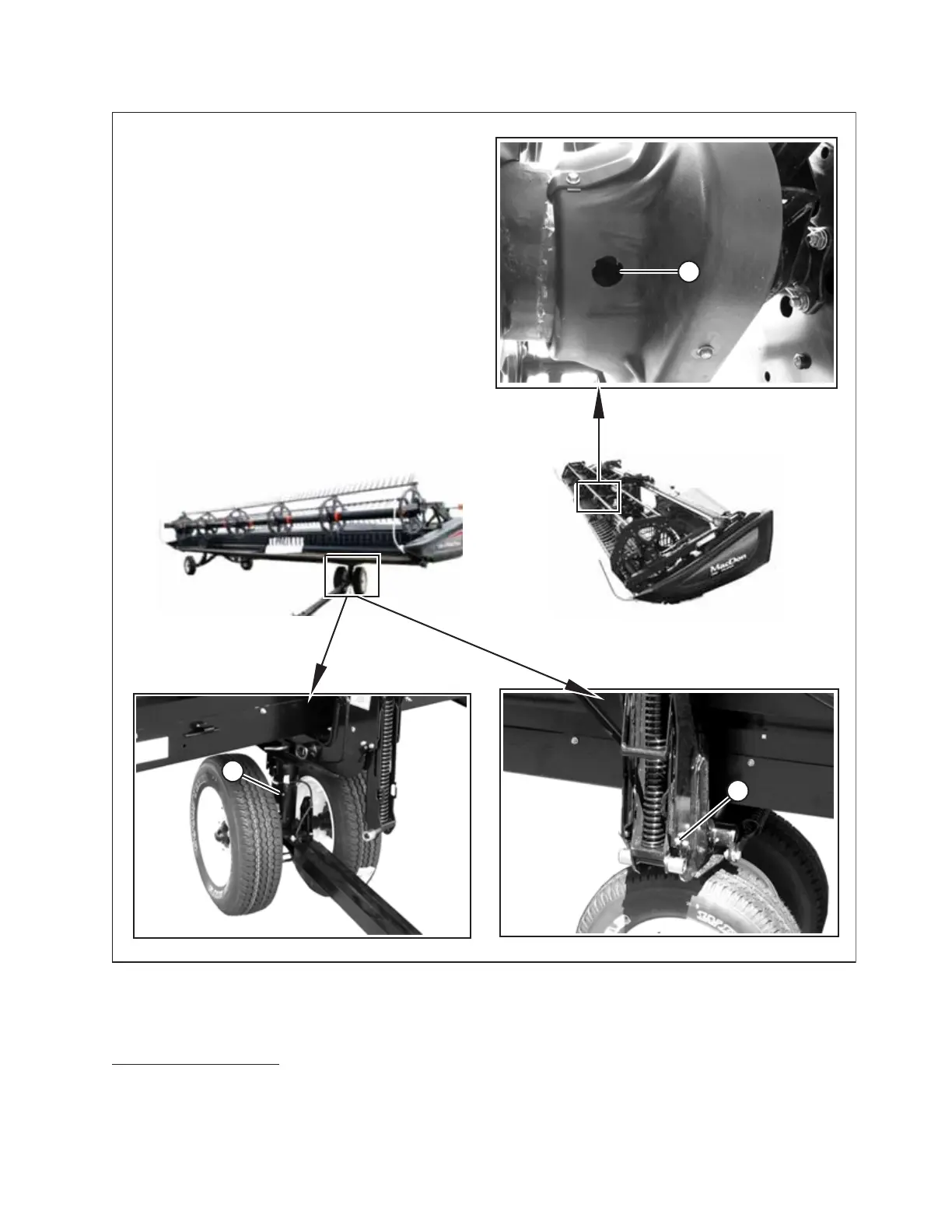

Figure 4.36: Every 250 Hours (Continued)
A - Front Wheel Pivot (1 Place) B - Double Reel U-Joint (1 Place)
2
C - Frame/Wheel Pivot (1 Place) - Both Sides
MAINTENANCE AND SERVICING
2. The U-joint has a cross and bearing kit with an extended lubrication interval. Stop greasing when greasing becomes
difficult or if the U-joint stops taking grease. Overgreasing will damage the U-joint. Six to eight pumps are sufficient at
first grease (factory). Decrease the grease interval (i.e., grease more often) as the U-joint wears and requires more
than six pumps.
