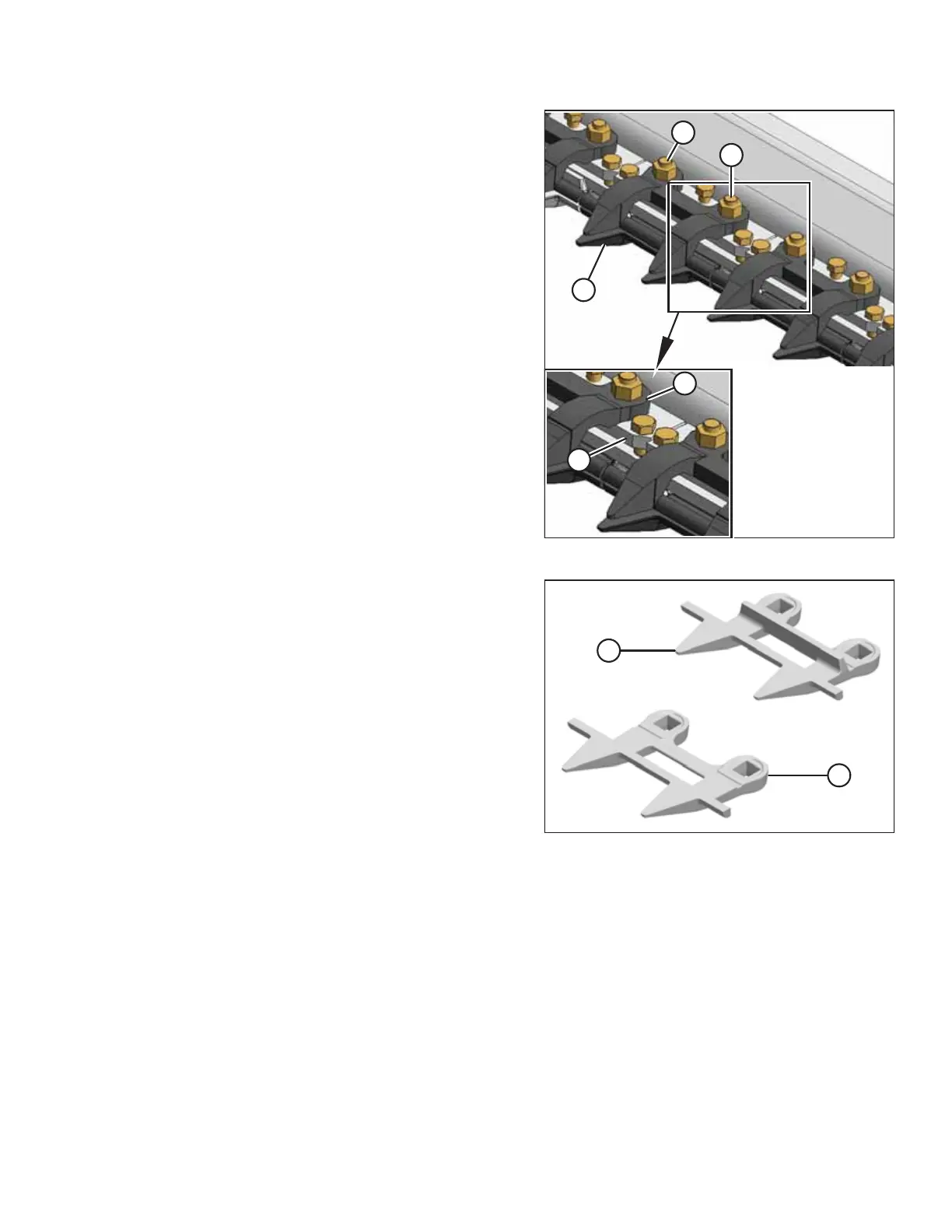

Figure 4.59: Stub Guards
2. Stroke the knife manually until the knife sections are
spaced midway between the guards.
3. Remove two nuts (A) and bolts attaching guard (B) and
hold-down (C) to the cutterbar.
4. Remove guard (B), plastic wearplate (if installed), hold-
down (C), and adjuster bar (D).
IMPORTANT:
Note the position of the miter on adjuster bar (D), and
reinstall the adjuster bar in the same position. Miters
should NOT be adjacent to each other.
Figure 4.60: Stub Guards
A - Normal Guard B - Drive Side Guard
IMPORTANT:
The first four outboard guards (B) on the drive sides of the
header do NOT have ledger plates. Ensure the proper
replacement guards are installed at these locations.
