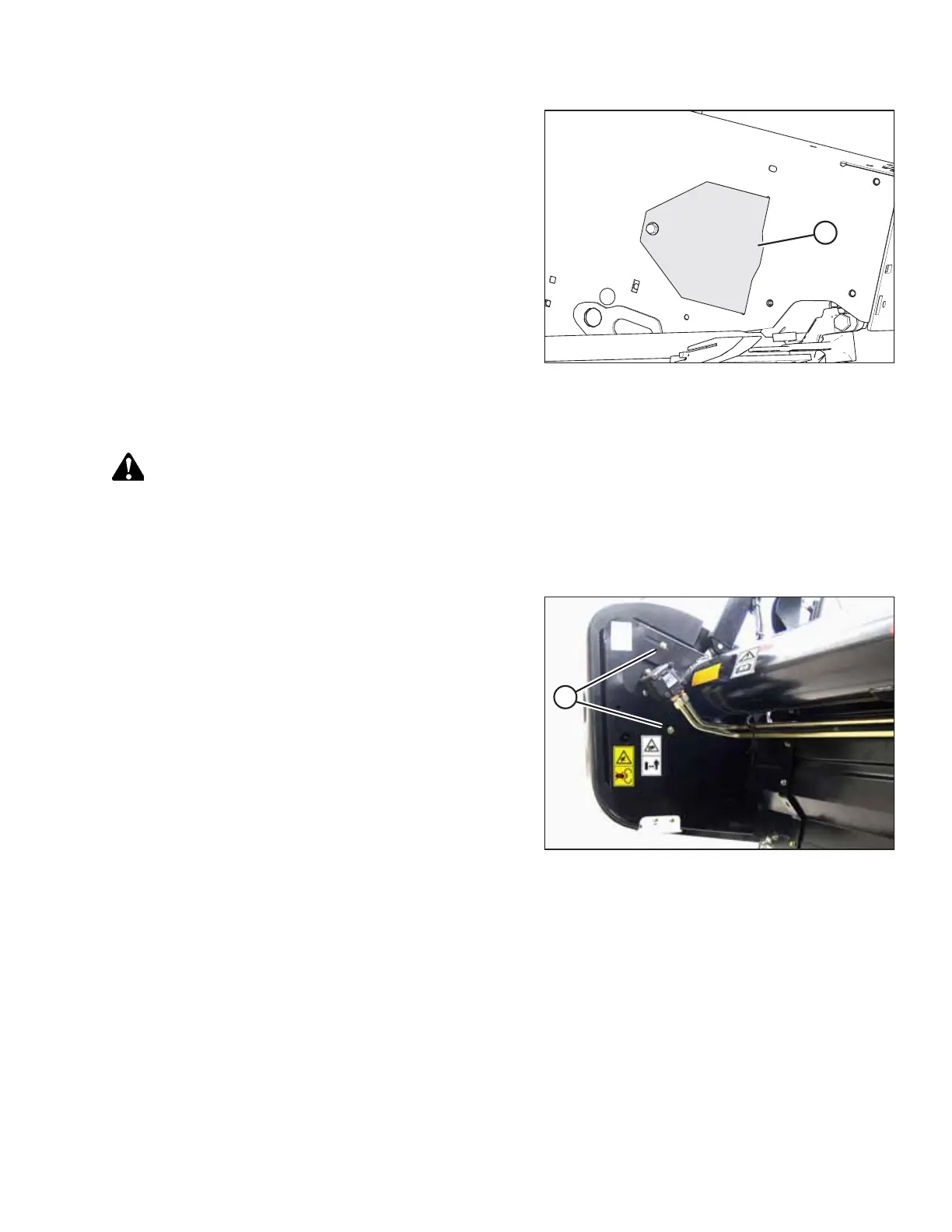

Figure 4.91: Access Cover
11. Tension the knife drive belt. For instructions, refer to
Tensioning Timed Knife Drive Belts, page 160.
12. Install access cover (A) and secure it with a bolt.
13. Close the endshield. For instructions, refer to 4.3.2 Closing
Hinged Endshields, page 117.
Tensioning Timed Drive V-Belts
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
1. Shut down the engine, and remove the key from the ignition.
2. Open the endshield. For instructions, refer to 4.3.1 Opening Hinged Endshield, page 116.
Figure 4.92: Inboard Side of Endsheet
3. Loosen two bolts (A) on the endsheet.
MAINTENANCE AND SERVICING
