MacDon D60 - 4.10.4 Reel Drive

169441 192 Revision D
4. Shut down the engine, and remove the key from the ignition.
5. Engage the header safety props.
6. Engage the reel safety props. For instructions, refer to 3.10.1 Engaging Reel Safety Props, page 36.
1009590
A

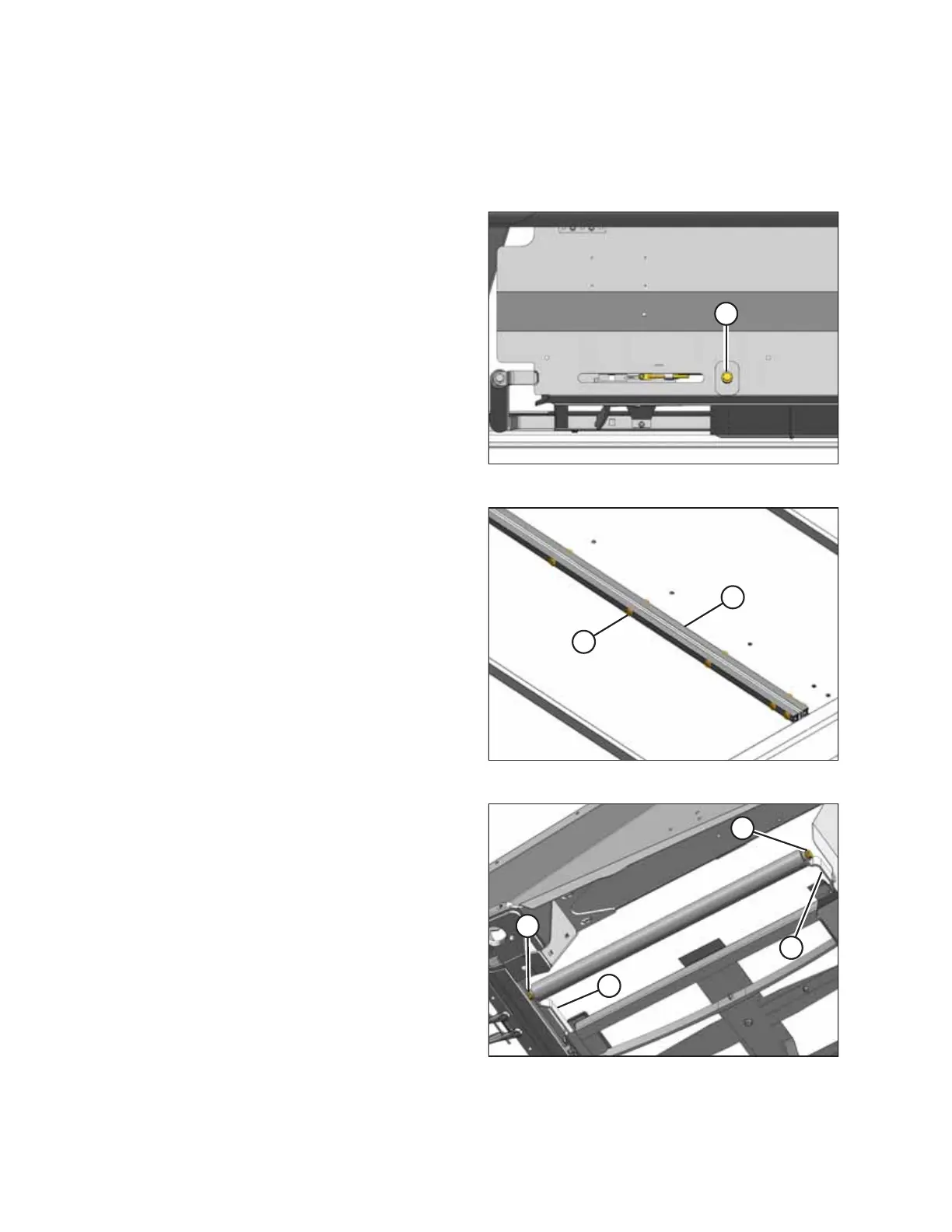

Figure 4.145: Tensioner
7. Loosen the draper by turning adjuster bolt (A)
counterclockwise.
1010063
A
B
Figure 4.146: Draper Joint
8. Remove screws (A), tube connectors (B), and nuts from the
draper joint to uncouple the draper.
9. Pull the draper off the idler roller.
1009591
A
B
C
A
Figure 4.147: Idler Roller
10. Remove bolts (A) and washers at the ends of the idler roller.
11. Spread roller arms (B) and (C) and remove the idler roller.
MAINTENANCE AND SERVICING
