Single-reel drive
1012797
A
B

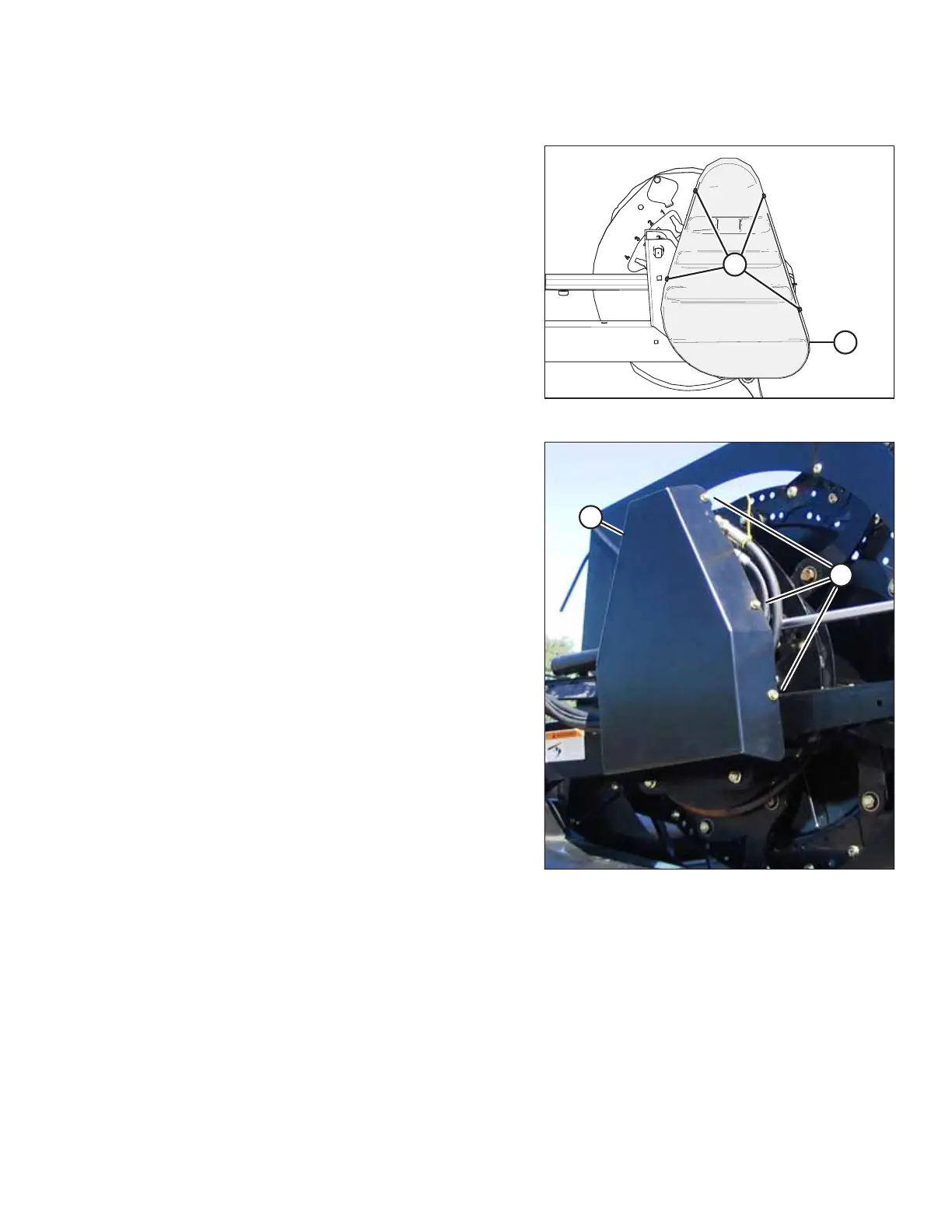

Figure 4.167: Drive Cover – D60 Single Reel
2. D60: Remove four bolts (A) securing cover (B) to the
reel drive.
ϭϬϰϬϬϵϲ
A
B
Figure 4.168: Drive Cover – D50 Single Reel
3. D50: Remove six screws (A) securing cover (B) to the
reel drive.
NOTE:
Only three screws (A) are visible in the illustration. The
other three are on the other side of the cover.
