169441 205 Revision D

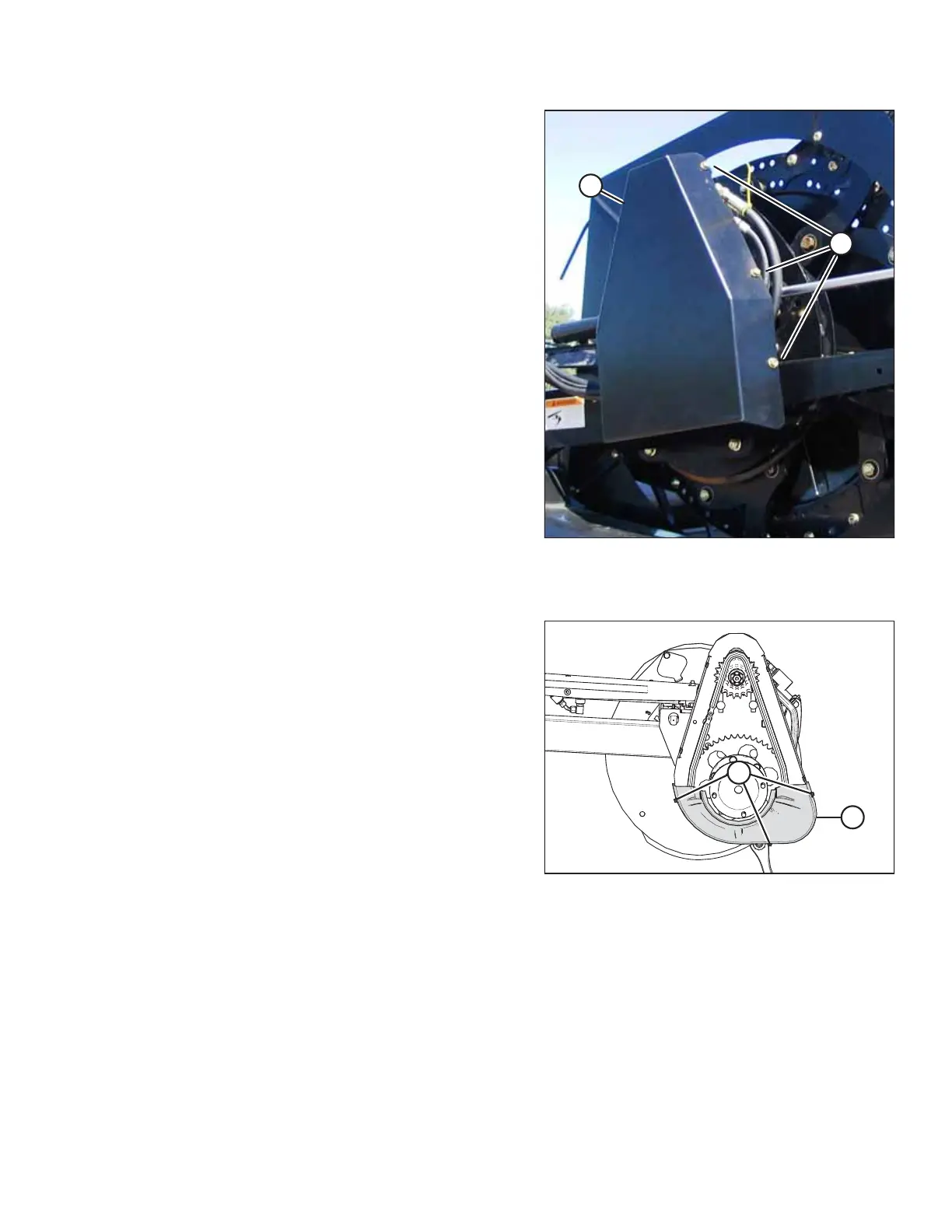

Figure 4.172: Drive Cover – D50 Single Reel
2. D50: Position drive cover (B) onto the reel drive and secure
it with six screws (A).
NOTE:
Only three screws (A) are visible in the illustration. The
other three are on the other side of the cover.
Double-reel drive
Figure 4.173: Drive Cover – Double Reel
3. Position lower drive cover (B) onto the reel drive (if
previously removed) and secure it with three bolts (A).
MAINTENANCE AND SERVICING
