MacDon D60 - Page 226

169441 214 Revision D
1009940
A
B

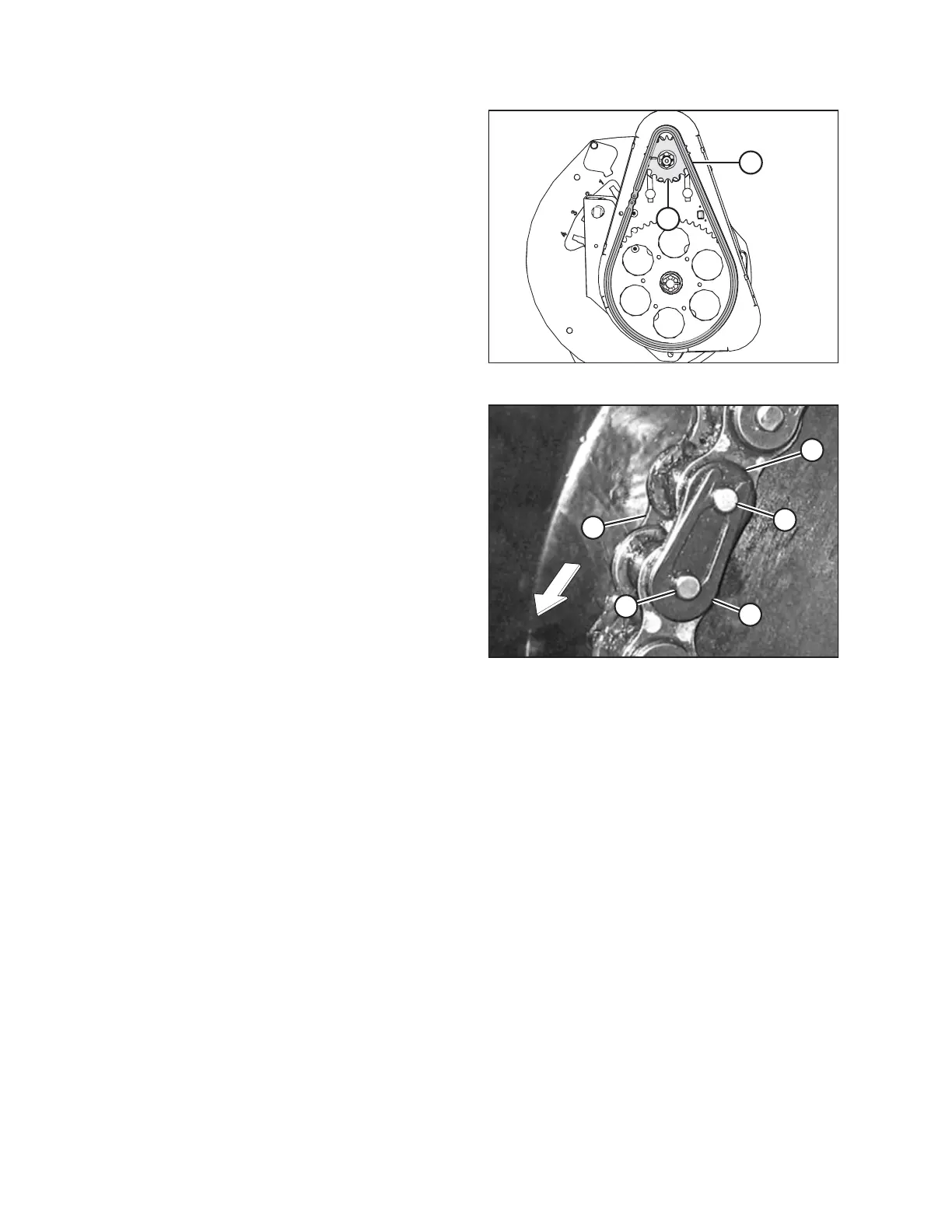

Figure 4.188: Reel Drive
3. Grind off the head of a link rivet on chain (A), punch out the
rivet, and remove the chain.
4. Grind off the head of a link rivet on the new chain, punch
out the rivet, and separate the chain.
5. Position the ends of the new chain onto sprocket (B).
1001622
A
B
C
D
E
Figure 4.189: Chain
6. Install pin connector (A) (not available as a MacDon part)
into the chain, preferably from the backside of the
sprocket.
7. Install connector (B) onto the pins.
8. Install spring clip (C) onto front pin (D) with the closed end
of the spring clip facing the direction of the sprocket
rotation.
9. Position one leg of spring clip (C) into the groove of aft
pin (E).
10. Press the other leg of spring clip (C) over the face of aft
pin (E) until it slips into the groove. Do NOT press the spring
clip lengthwise from the closed end.
11. Ensure spring clip (C) is seated into the grooves of front
pin (D) and aft pin (E).
MAINTENANCE AND SERVICING
