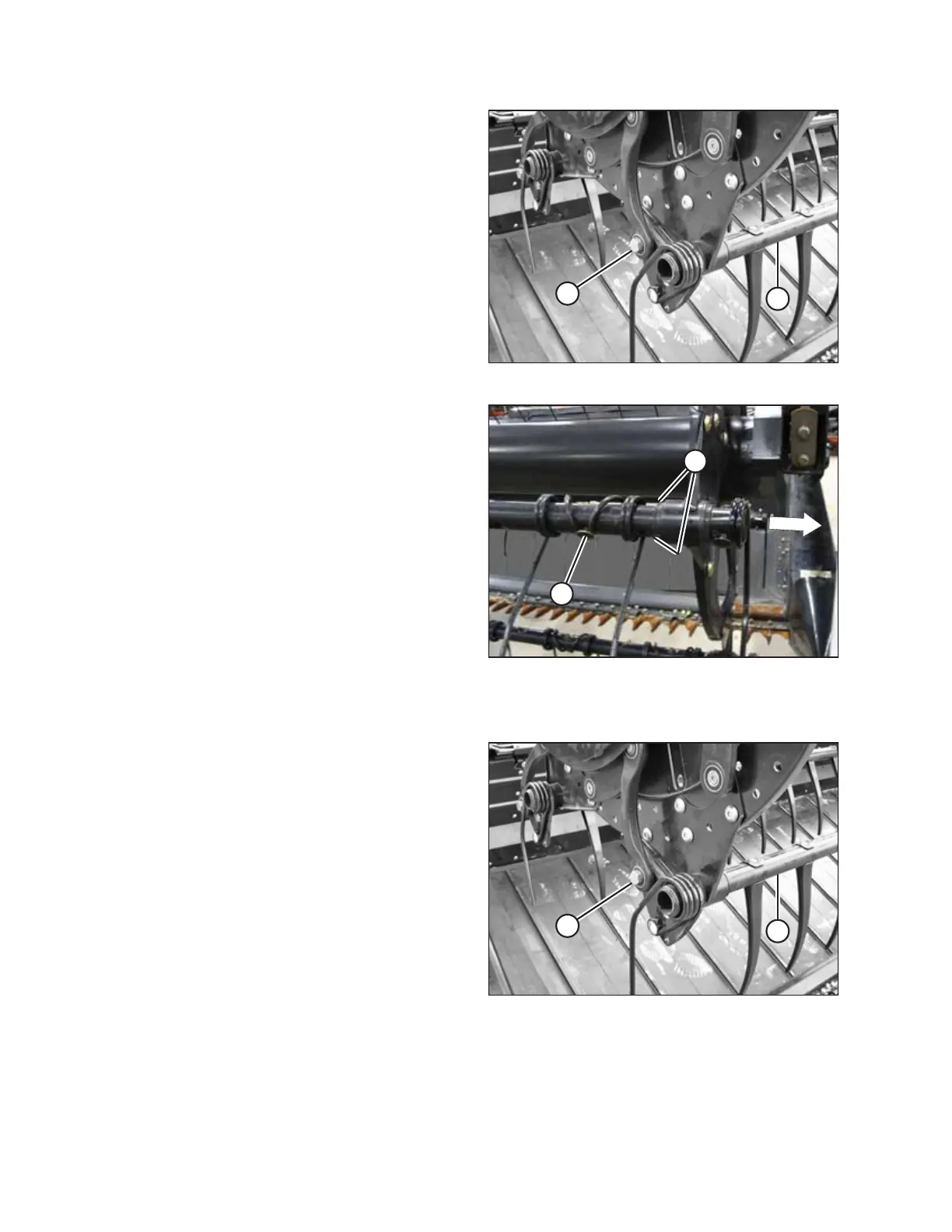

Figure 4.218: Tail End
7. Remove bolt (A) on the cam linkage so that tine tube (B) is
free to rotate.
Figure 4.219: Tine Tube
8. Slide the tine tube outboard to expose the bushings.
Remove bolt (A) from the tine next to the arm (or remove
the plastic finger) if required so that the tube can slide
through the arm. Refer to the following procedures as
necessary:
• Removing Plastic Fingers, page 227
• Removing Steel Tines, page 225
9. Remove bushing halves (B).
Removing cam end bushings
Figure 4.220: Cam End
10. Remove bolt (A) securing arm (B) to the disc.
IMPORTANT:
Ensure the tine tube is supported at all times to prevent
damage to the tube and other components.
IMPORTANT:
Note the hole locations in the arm and disc, and ensure
bolts (A) are reinstalled at the original locations.
