169441 234 Revision D
3. Shut down the engine, and remove the key from the ignition.
4. Engage the reel safety props. For instructions, refer to 3.10.1 Engaging Reel Safety Props, page 36.
5. If replacing only the cam end bushing, proceed to Step 10, page 235.
Removing center disc and tail-end bushings

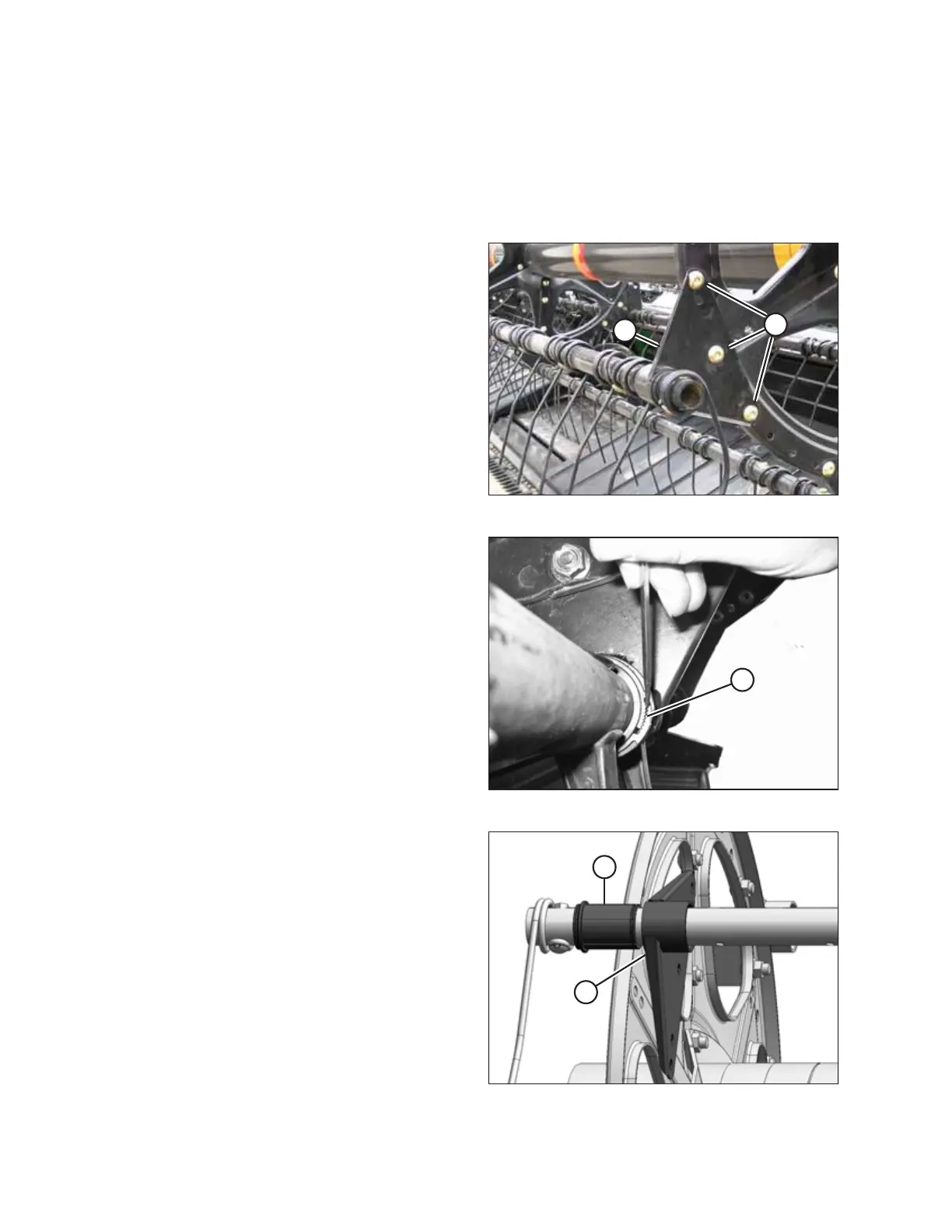

Figure 4.228: Reel Arm
6. Remove bolts (A) securing arm (B) to the disc at both
locations.
IMPORTANT:
Note the hole locations in the arm and disc, and ensure
bolts (A) are reinstalled at the original locations.
Figure 4.229: Bushing Clamp
7. Release bushing clamps (A) using a small screwdriver to
separate the serrations. Pull the clamp off the tine tube.
Figure 4.230: Bushing
8. Rotate arm (A) until it is clear of the disc and slide the arm
inboard off of bushing (B).
9. Remove bushing halves (B). If required, remove the next
tine or plastic finger so the arm can slide off the bushing.
Refer to the following procedures as necessary:
• Removing Plastic Fingers, page 227
• Removing Steel Tines, page 225
MAINTENANCE AND SERVICING
