169441 58 Revision D

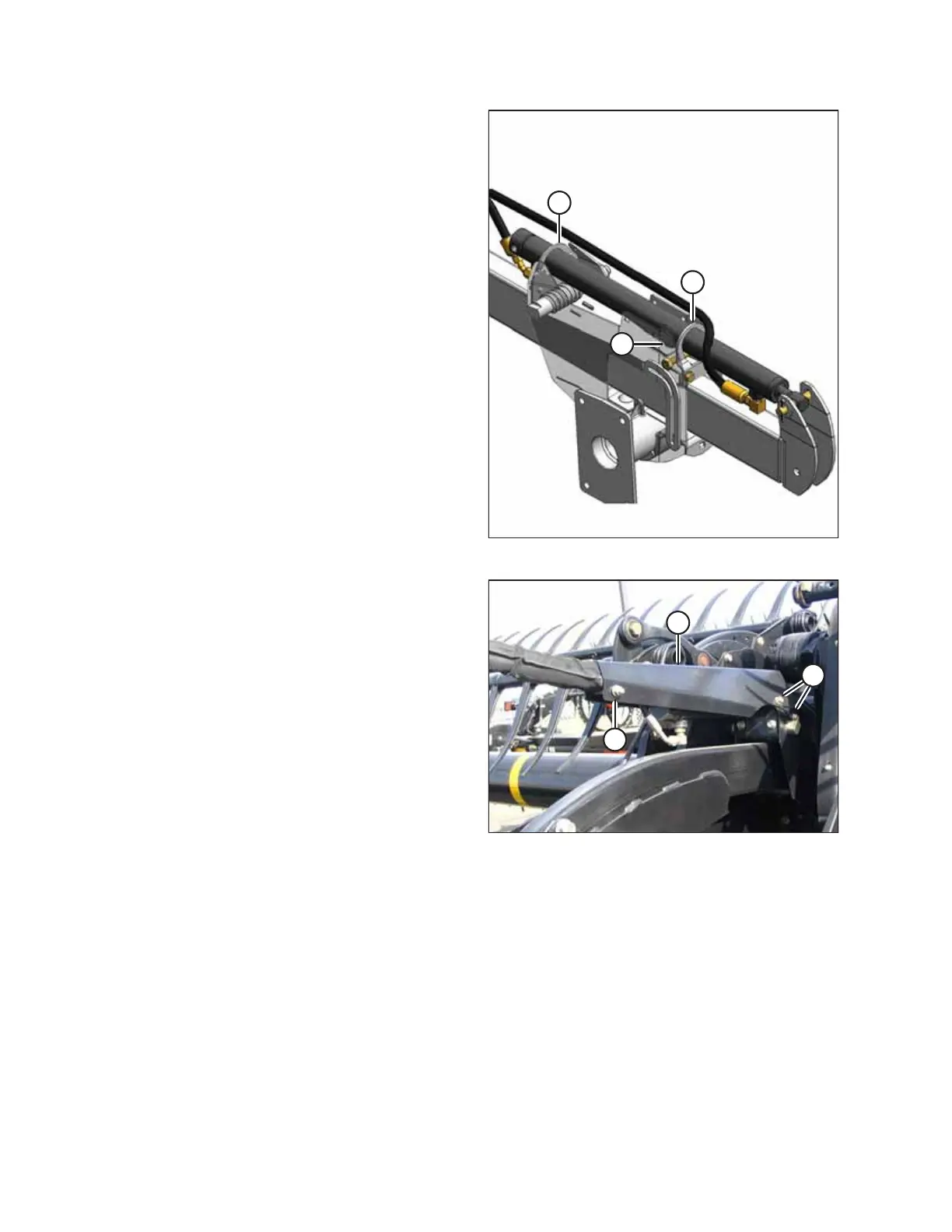

Figure 3.42: Right Reel Arm Cylinder
7. Lift the aft end of the cylinder out of the support assembly,
and retract the cylinder so that cylinder center port
fitting (A) engages the support assembly.
NOTE:
Loosen a hose fitting to allow movement of the cylinder
rod. Be sure to retighten the hose fitting after cylinder
installation.
8. Reinstall plates (B) and (C) with previously removed bolts.
Figure 3.43: Right Reel Arm Cylinder
9. Reposition the hoses and reinstall hose shield (C) with
bolts (B).
10. Position the hoses inside hose shield (C), and reinstall bolt
and nut (A).
OPERATION
