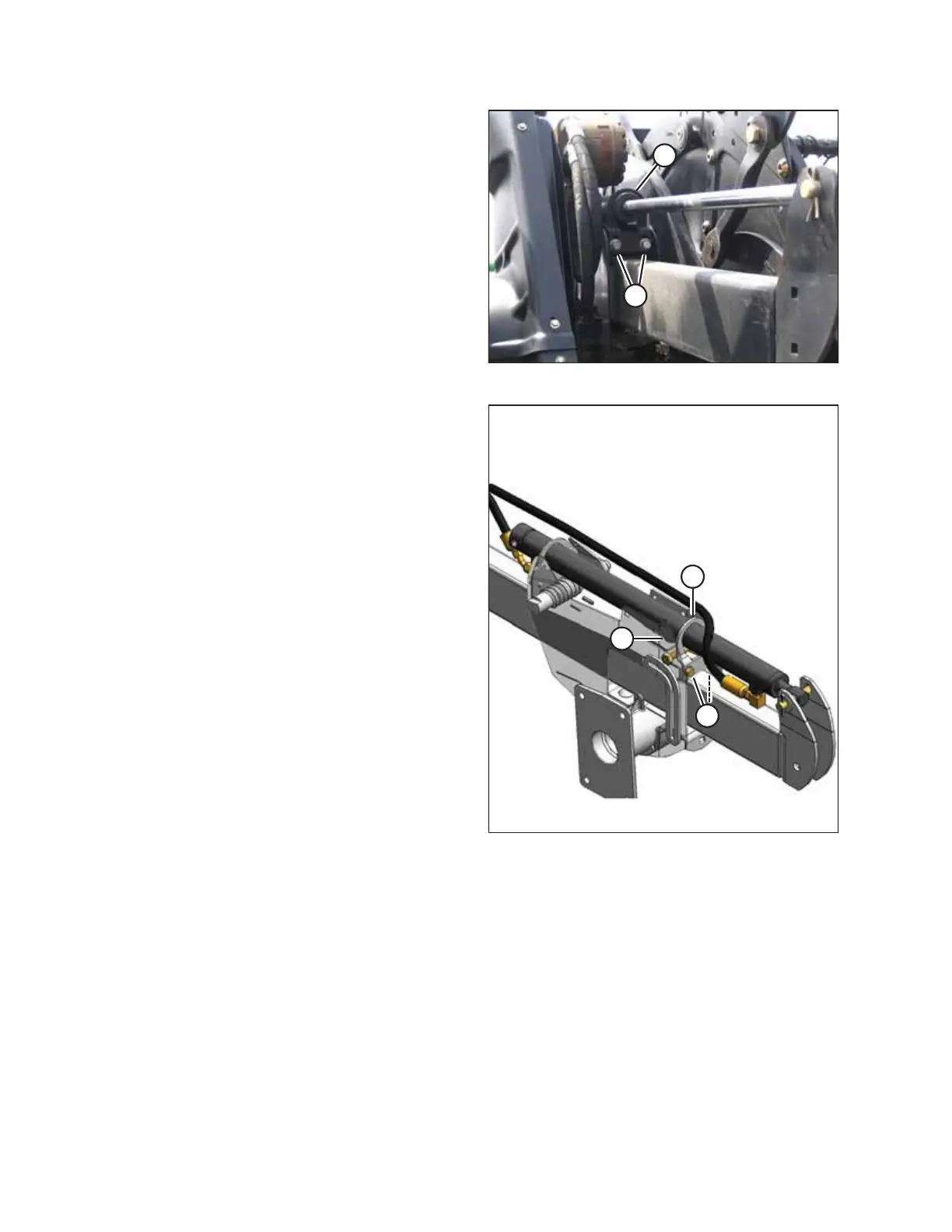

Figure 3.46: Center Reel Arm Cylinder
6. Remove bolts (A) so that front support (B) is free to
move up.
ϭϬϰϬϭϮϲ
A
B
C
Figure 3.47: Center Reel Arm Cylinder
7. Lift the aft end of the cylinder out of the support assembly,
and retract the cylinder so that cylinder center port
fitting (A) engages the support assembly.
NOTE:
Loosen a hose fitting to allow movement of the cylinder
rod. Be sure to retighten the hose fitting after cylinder
installation.
8. Reinstall forward support plate (B) with bolts (C).
