4. Engage the header safety props. For instructions, refer to your windrower operator’s manual.
5. Open or remove the endshields. For instructions, refer to 4.3 Endshields, page 116.

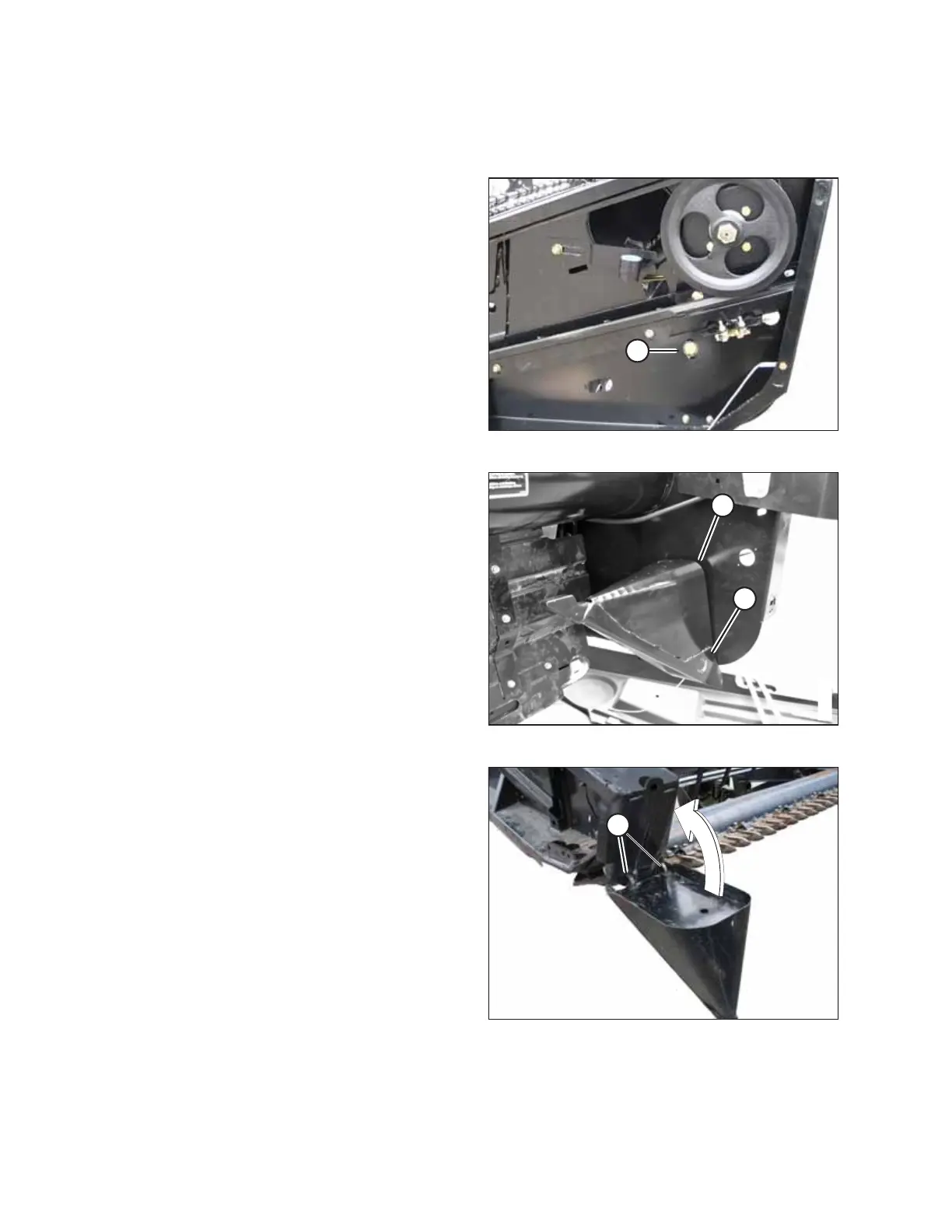

Figure 3.69: Stored Hardware
6. Remove bolt (A), lock washer, and flat washer from the
inside of the endsheet.
Figure 3.70: Stored Crop Divider
7. Remove the crop divider from the storage location by lifting
the crop divider to disengage lugs (A) at the lower end and
then lowering it slightly to disengage pin (B) from the
endsheet.
Figure 3.71: Crop Divider
8. Position the crop divider as shown by inserting lugs (A) into
the holes in the endsheet.
