BA052301-en 101
10.3 RPM Setting
Using the menu point RPM SETTINGS the oil temperature and engine RPM can be checked and
selected.
1 Use the menu point RPM SETTINGS.

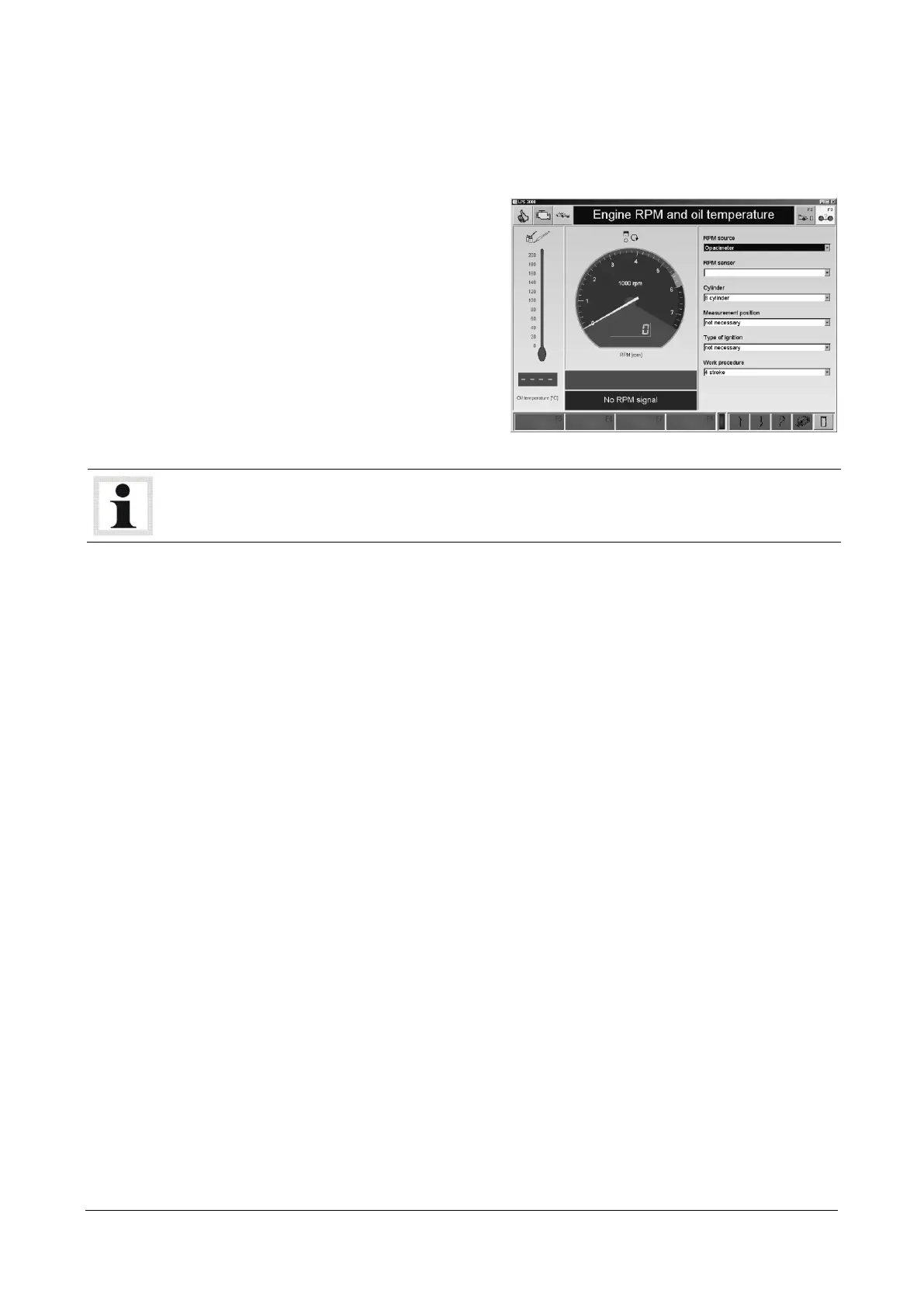

→ A screen opens in which the motor RPM
and oil temperature are shown, e.g.:
2 The RPM source or the RPM sensor can, if
necessary, be changed. Select the box
needed.
If the Automatic Selection point is selected from the list, the dyno automatically recognizes the
RPM sensor being used.
RPM source:
- no RPM recording
- Standard LPS RPM Module
- Driving trial
- OBD
- Emission tester
- Opacimeter
Operating system:
- 2 stroke
- 4 stroke
- Wankel
RPM Sensor:
- Trigger tongs
- Licht barrier sensor
- TDC sensor
- Clamp W
- Diagnostic plug
- Rotophon
- Rotophon Mode 2
- Piezo clamp
- Ignition coil clamp 1
Ignition type:
- One spark coil
- Two spark coil
Cylinder:
- 1, 2, 3, 4, 5, 6, 8, 10, 12 cylinder
Measurement position:
- Trigger tongs at the spark plug
- Trigger tongs at the spark plug
