Process Profile

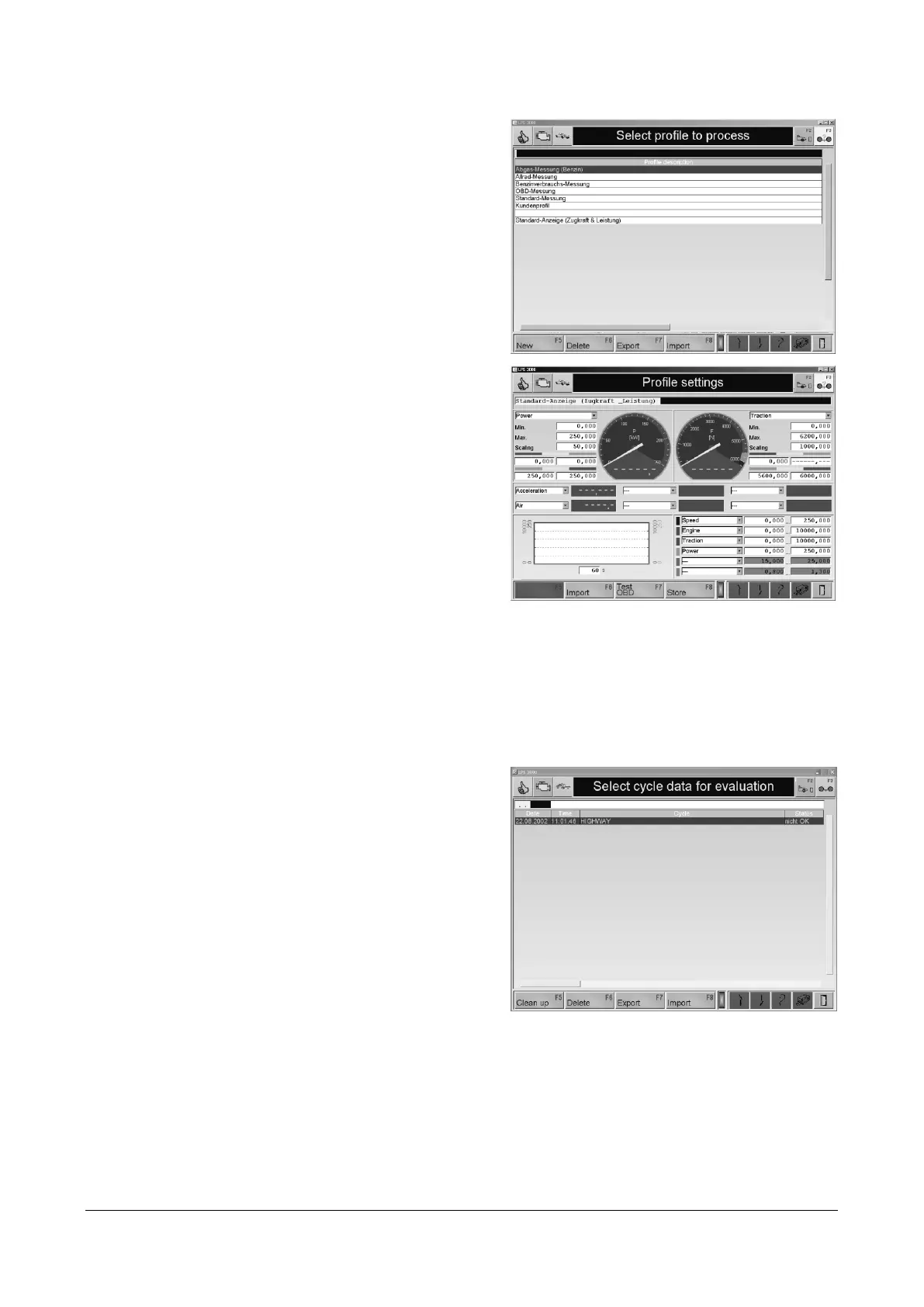

1 Call up the menu DATABASE and dthen the
menu point LOAD SIMULATION PROFILE:
→ The database browser appears.
2 Select a profile with the cursor key or the
mouse.
3 Open the profile by double clicking or press
the <ENTER> key.
→The screen for the profile setting appears
4 Enter the changes. Select the boxes and
enter the desired values.
5 The changes are displayed with <F6
IMPORT>.
6 The changes are stored with <F8 STORE>.
Export Profile
See paragraph "Identical Functions", function "Export".
Import Profile
See paragraph "Identical Functions", function "Import".
10.1.6 Driving Cycle Data
1 Call up the menu DATABASE and then the
menu point DRIVING CYCLE:
→ The database browser appears.
2 Select a dataset with the cursor key or the
mouse.
3 Open the dataset by double clicking or
press the <ENTER> key.
→ The measurement screen appears.
