8.3.2 Main Screen
Here menu items can be selected or measurement variables displayed.
Grey shaded boxes are not available for selection.
To select a menu item from the main screen, either
• mark it using the cursor keys / the tab key and confirm with <ENTER>, or
• open it using a left mouse click.

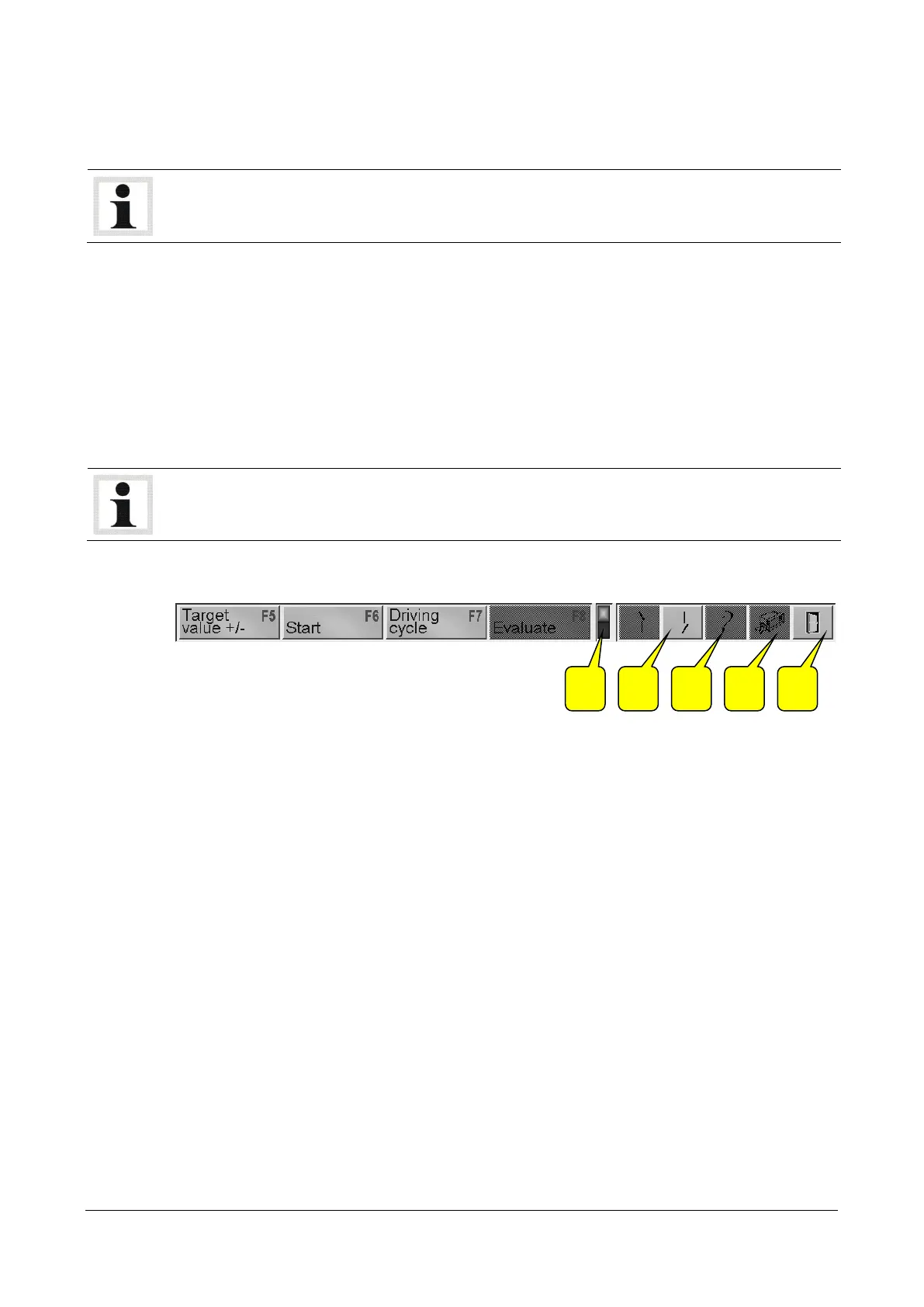

8.3.3 Button Bar
Here are additional important functions. The assignment of buttons <F5> to <F8> in the button
bar can vary. The individual buttons are labelled with the respective function and function key.
The button assignments are explained later in the respective menu items as they appear.
The button bar assignments depend upon the screen currently active. Grey shaded buttons are
not available for selection.
Example
A+B
SWITCH OVER Button
If the highlighted LED (A) appears in front of the arrow keys, this means the button
bar has additional functions and can be "switched over" with the arrow keys (B) or
wiith the <Pg > or <Pg > button or with the scrolling wheel of the mouse.
C
INFO Button
Use this button to display various dyno information.
D
PRINT Button
Use this key or the <F12> key to start a printout.
E
ESCAPE Button
Use this button or the <Esc> key to exit the active screen.
