7.4.2 Fix Motorcycle

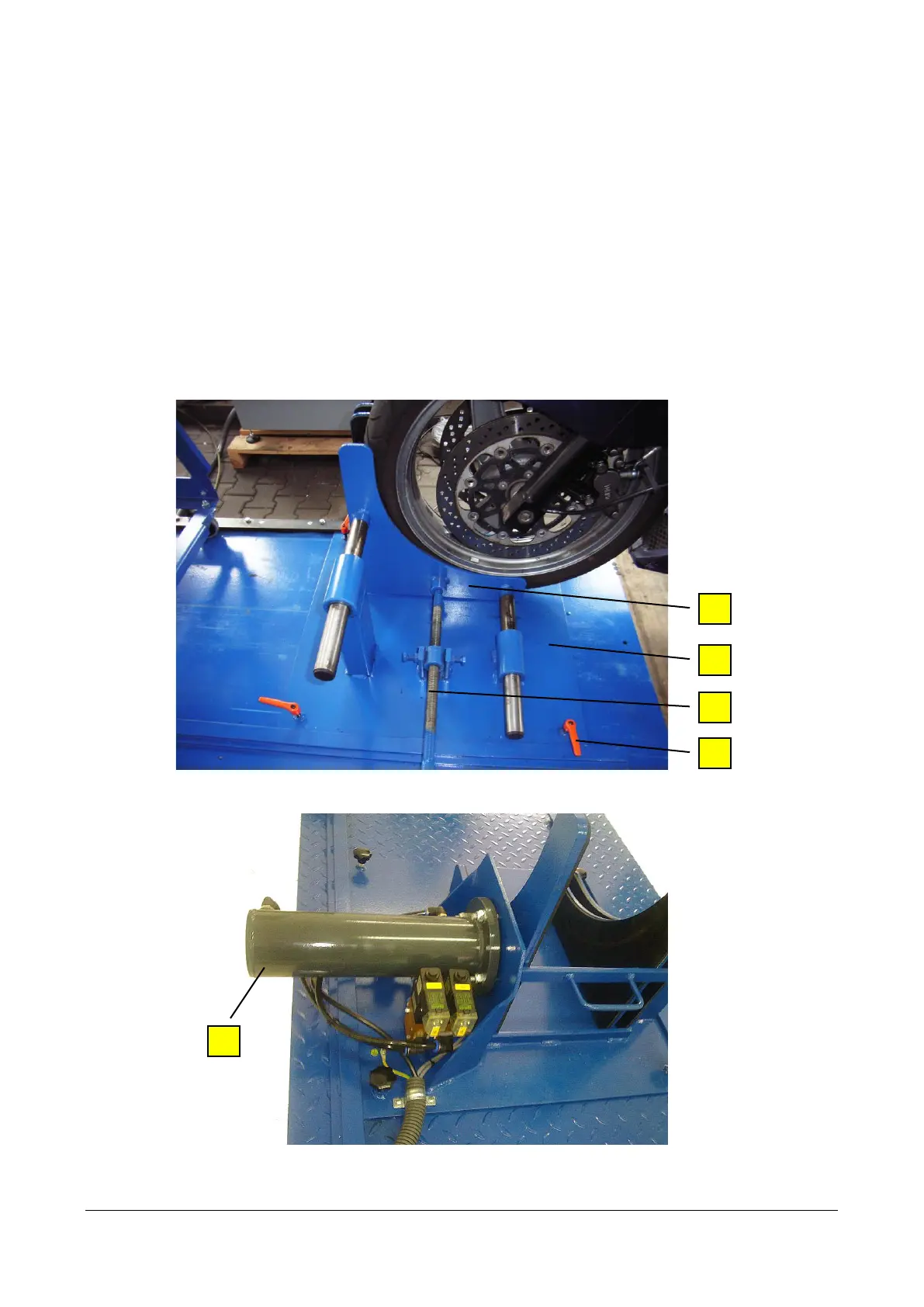

1 Open the fastening screws (A) and roughly adjust the base plate (B) to the motorcycle's
wheelbase.
2 Position the clamping plate (C) at the front wheel as shown. Adjust the base plate as
required and lock it using the four fastening screws.
3 Push the clamping plate firmly against the wheel.
a) Mechanical version: By turning in the threaded rod (D).
b) Pneumatic version: By actuating the pneumatic cylinder (E) using switch or software button.
4 Fasten the motorcycle laterally at the level of the footrests using tightening straps.
5 Check the clamping device for tight fit by making steering movements. If there is still play
between wheel and clamping plate, retighten the threaded rod or actuate the pneumatic
cylinder once more.
