Diagnosis / Ser
vice
11.1
Dyno Status

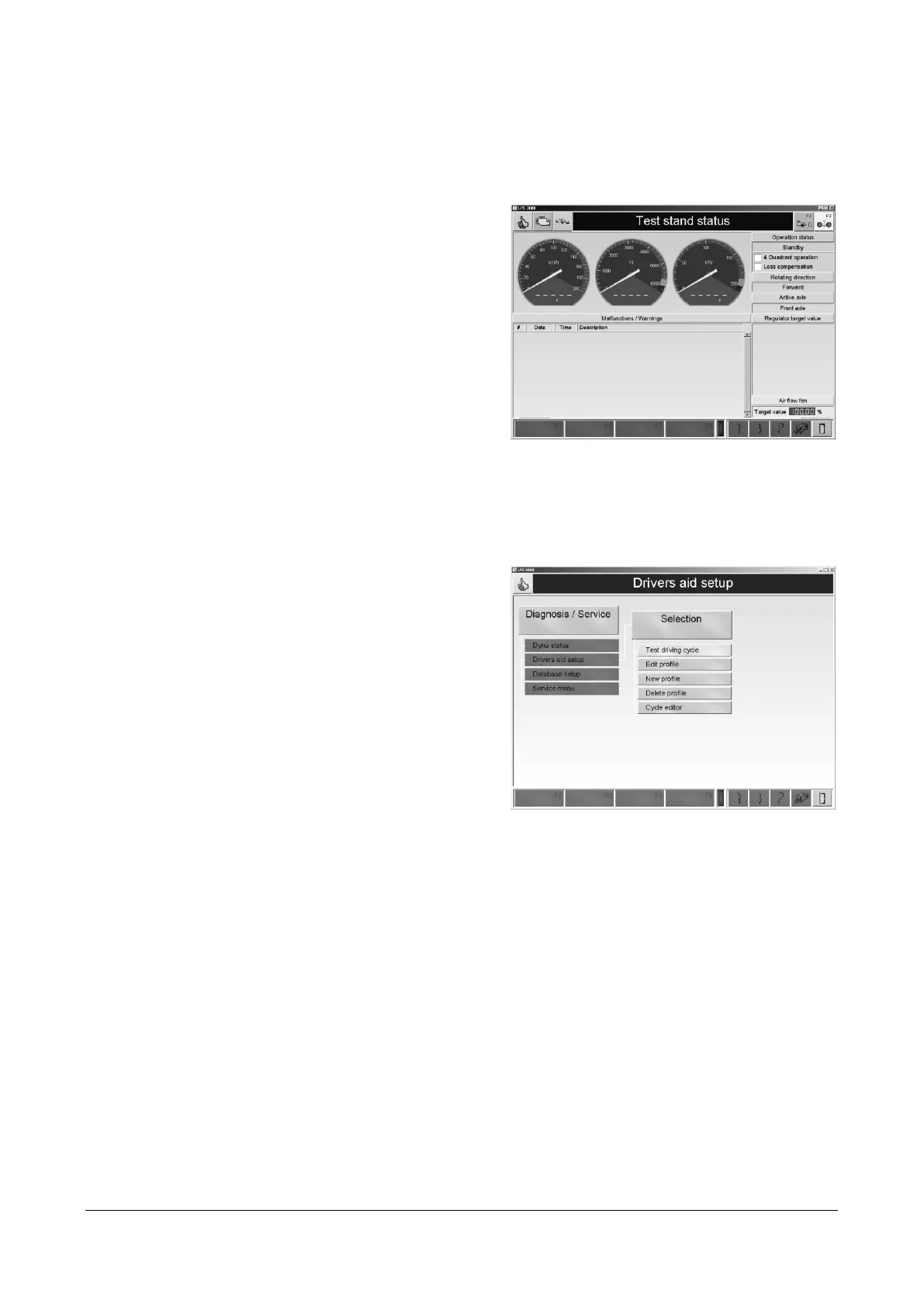

After calling up this
menu point, a s
creen
appears which displays, e.g
. the set
operating
mode, the rotation dire
ction, the active axle
,
various regulator and fan
target values as
well
as malfunctions/warn
ings.
11.2
Driver’s Aid Se
tup
(Optional)
Administer the driver’s
aid using
this menu p
oint.
After calling up this
menu point the following
screen appears:
Select the desired option.
