BA052301-
en
51
6.10
Additional Setti
ngs under Windows 7
or higher

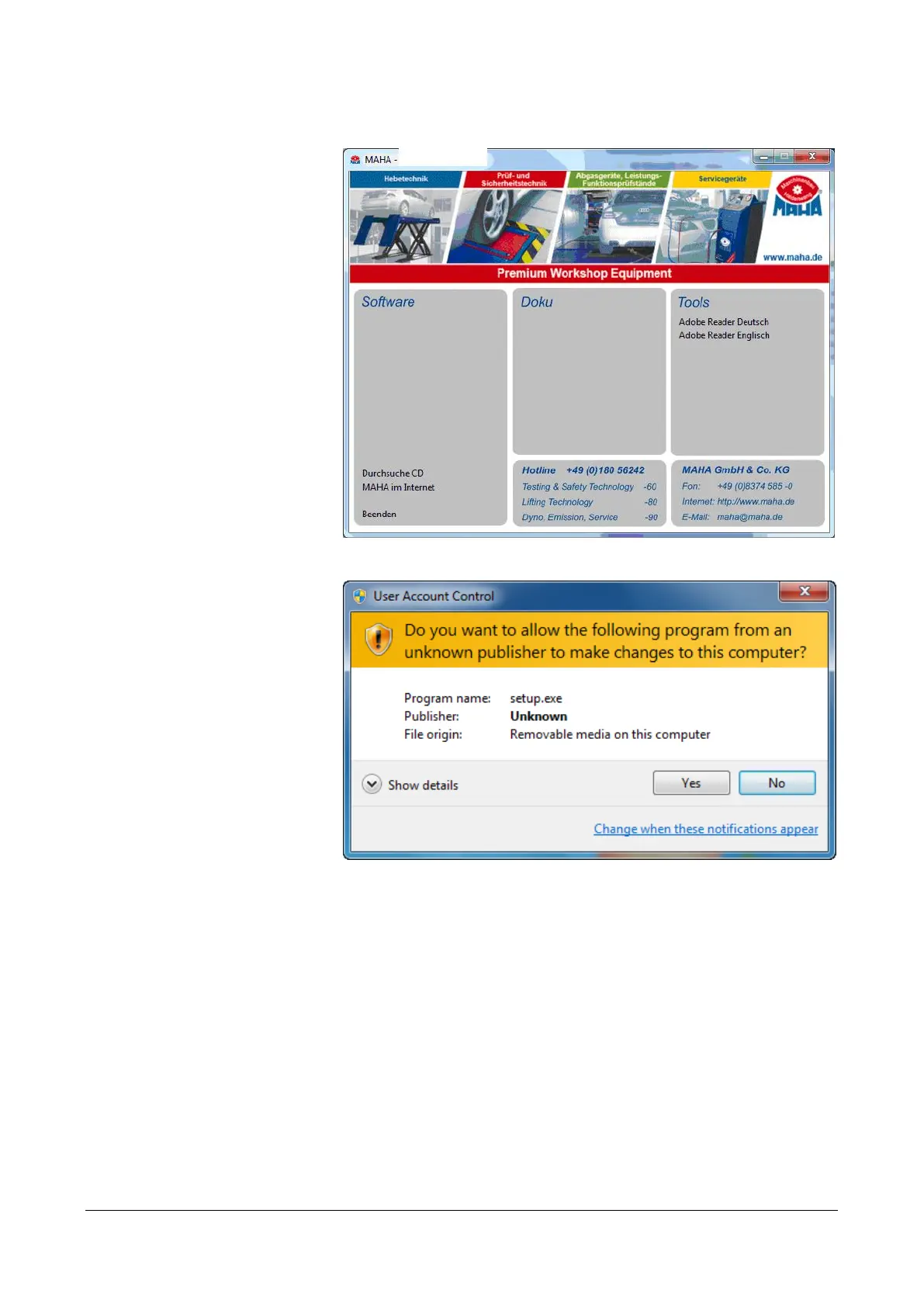

After inserting the
EUROSYSTEM CD
"AutoRun" is started.
Use this program to
install your version of
EUROSYSTEM.
Click the equipment
being used
(
1
).
Provided the User
Account Control is
enabled, this Windo
ws
confirmation prompt
appears.
Confirm with "Yes
“.
Do the software ins
tallation
as described above
,
startin
g with st
ep
"Selecting the Se
tup
Language
".
50
52
