52
BA052301-
en
After the installation
process has been
successfully comple
-
ted, assign the user
rights for the
directory
.

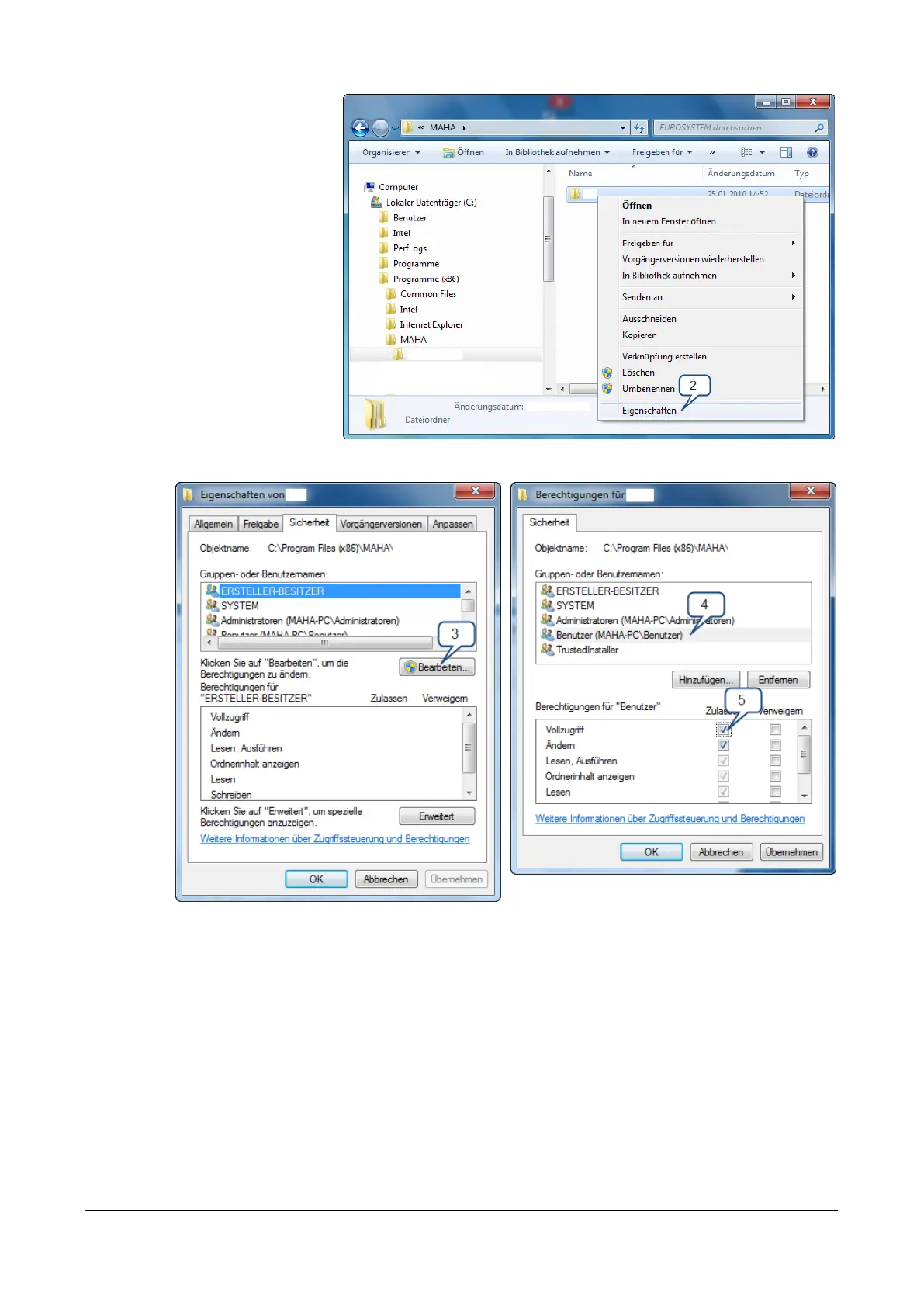

To do this, open the
installation directory
,
usually located at
:
C:\Programs\M
AHA\
[Equipment type], t
hen
right-click the folder
.
In the object menu
,
select "Properties
“ (
2
).
In this dialog window,
click tab
"S
ecurity“ a
nd
then button "Edit
“ (
3
).
Now the user rights
can be assigned
.
Mark entry "Benutzer"
(German for "
User
“
) (
4
)
a
nd
tick the "Allow" checkb
ox next to the "Full
control" permission
. (
5
).
Confirm the assignment
with
"OK“.
The new
permissions will no
w be applied.
