74 BA052301-en
g
Gravitational acceleration
Gradient angle ()
(Coefficients A-D refer to a reference speed of 90 km/h.)
1 Position the vehicle on the dyno and fix it.
2 Open menu LOAD SIMULATION
and then menu item DRIVING
SIMULATION.

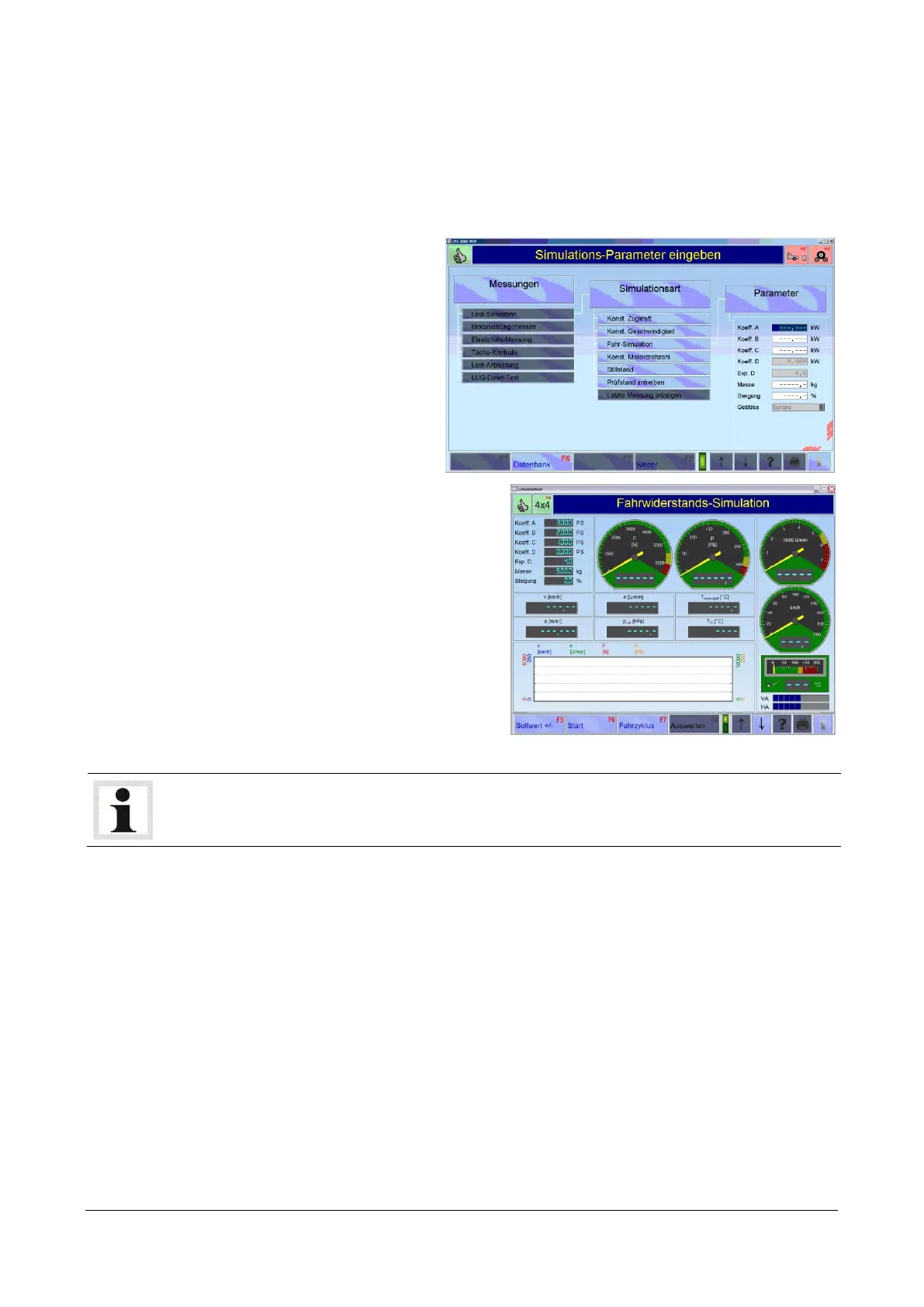

The following screen appears:
3 Enter the parameters using the
number keys or, if available, load
them from the database using <F6
DATABASE>.
4 Use button <F8 CONTINUE>.
The measurement screen appears.
5 Start the measurement.
6 Use switch button <F6> to start or stop the
graphic recording of the measurement.
When testing with electric motors, accelerations of 1…1.2 m/s
2
are possible with a non-driven
axle. This corresponds with a mass of ca. 700 kg per axle.
