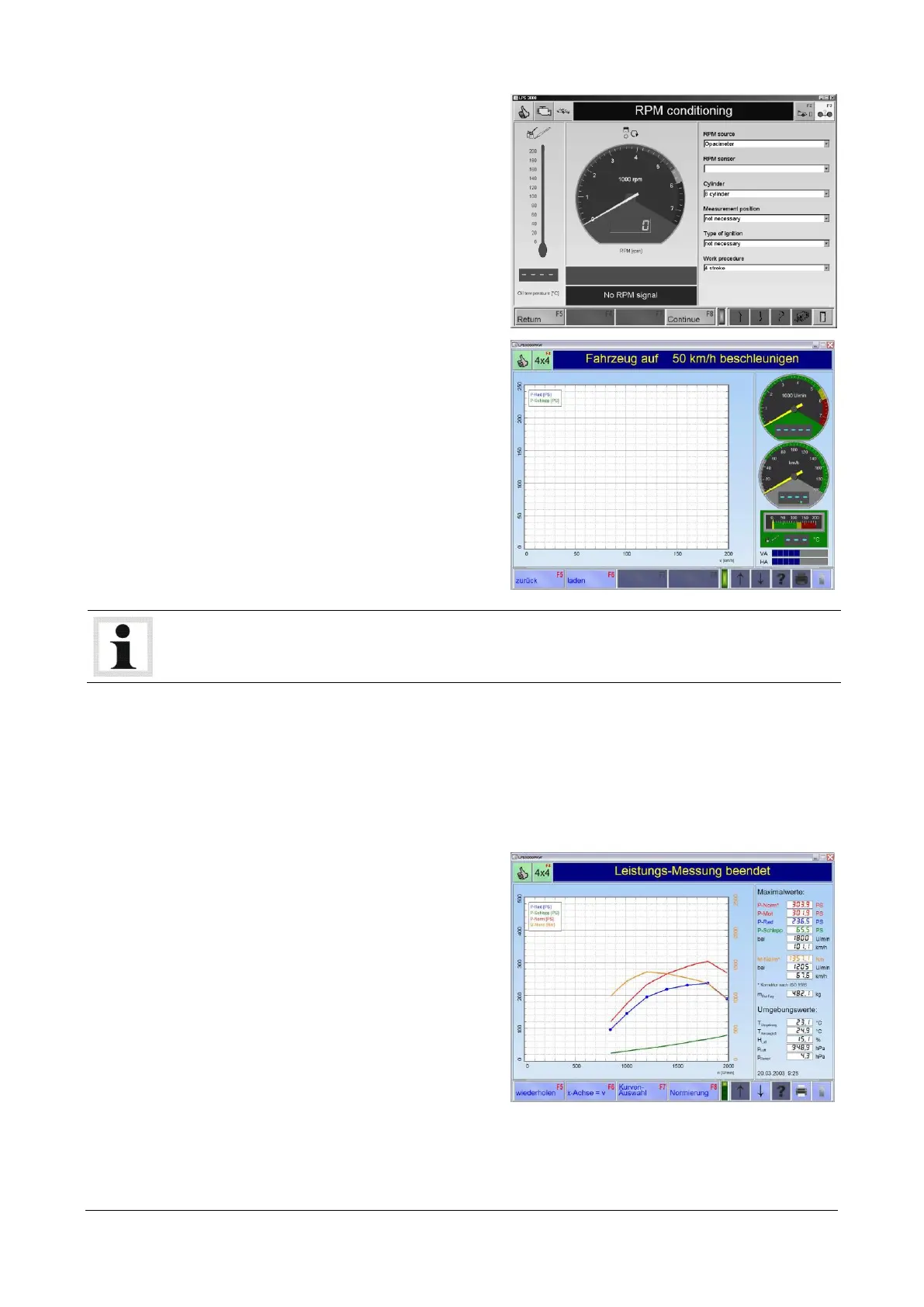

7 Select the RPM source or RPM sensor and
the appropriate box.
8 Use the button <F8 CONTINUE>.
9 Accelerate slowly and consistently up to
start speed.
10 Give full throttle when the Start speed is
reached.
The dyno starts recording measurement
data. The measurement should be done
without shifting in the next to last or last
gear.
Use the button <F6 LOAD> to load stored measurements and display in the background. A max.
of 3 additional curves can be placed in the background.
11 With the throttle fully depressed the first set measurement point is approached.
The eddy-current brake of the roller set maintains the vehicle or RPM speed about 5 sec. (i.e.
according to the set holding time) and stores the measurement value of this point.
12 The brake is then released and the next measurement point is approached. The inspector
maintains full throttle during the entire test time.
13 After all measurement have been taken, the information line at the bottom of the screen
indicates to the inspector that the clutch can be released: "Press clutch”.
14 To evaluate the measurement, see sections
"Identical Functions" and "Performance
curves".
