OPERATING CONTROLS AND PROCEDURES 14000 OPERATOR MANUAL
3-56
Published 03-29-17, Control # 064-23

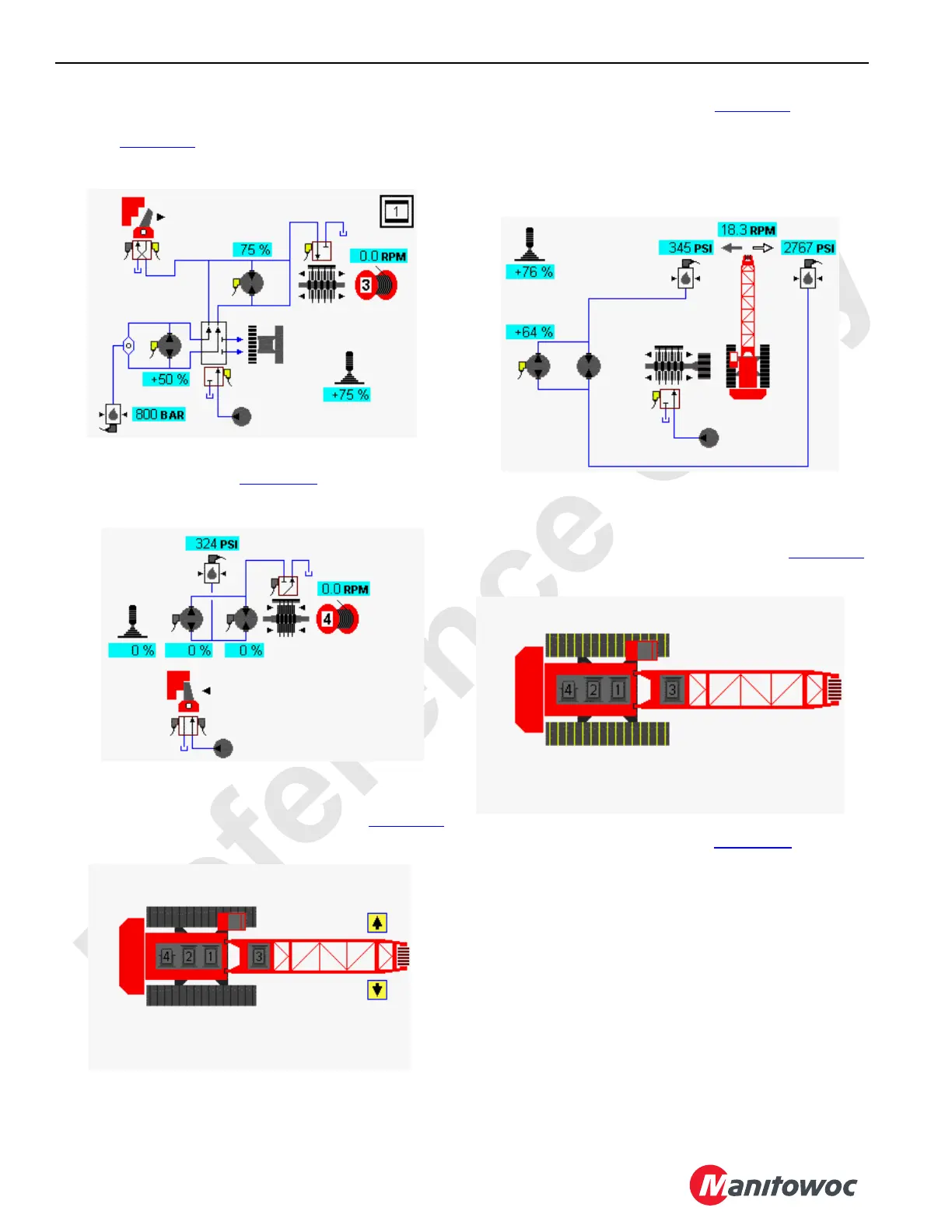

For load drum 3, left travel pump is dedicated to operate
drum 3 motor through diverting valve when drum 3 is
selected (Figure 3-45
). Drum 3 is inoperable when traveling.
Drum 3 can be configured as load drum or luffing jib.
In drum example shown in Figure 3-46
, drum 4 function is
shown not operating.
Swing Diagnostic Screen
Select swing icon in screen level 1 as shown in Figure 3-47.
Press Enter button to go to level 2.
Swing system icons are displayed in Figure 3-48
.
The example shows how swing function might appear when
swinging right. Arrow symbols near each pressure sender
indicate which sender monitors swing right and swing left
pressures.
Travel Diagnostic Screen
Select travel icon in screen level 1 as shown in Figure 3-49.
Press Enter button to go to level 2.
In travel system example shown in Figure 3-50
. Left travel
pump is dedicated to operate drum 3 through diverting valve
if drum 3 is selected. When left crane travel is enabled, drum
3 is disabled.
FIGURE 3-45
Drum 3
14COM3-33
FIGURE 3-46
Drum 4
14COM3-34
FIGURE 3-47
14COM3-35
Swing Diagnostic
Screen Selected
FIGURE 3-48
14COM3-36
Swing Right
Selected
14COM3-37
Travel Diagnostic
Screen Selected
FIGURE 3-49
