Manitowoc Published 03-29-17, Control # 064-23 v2 4-13
14000 OPERATOR MANUAL SETUP AND INSTALLATION
CRANE ASSEMBLY
Remove Protective Covers from Cab
Windows
If equipped, remove and store optional protective covers
from windows of operator’s cab (see Figure 4-7
).

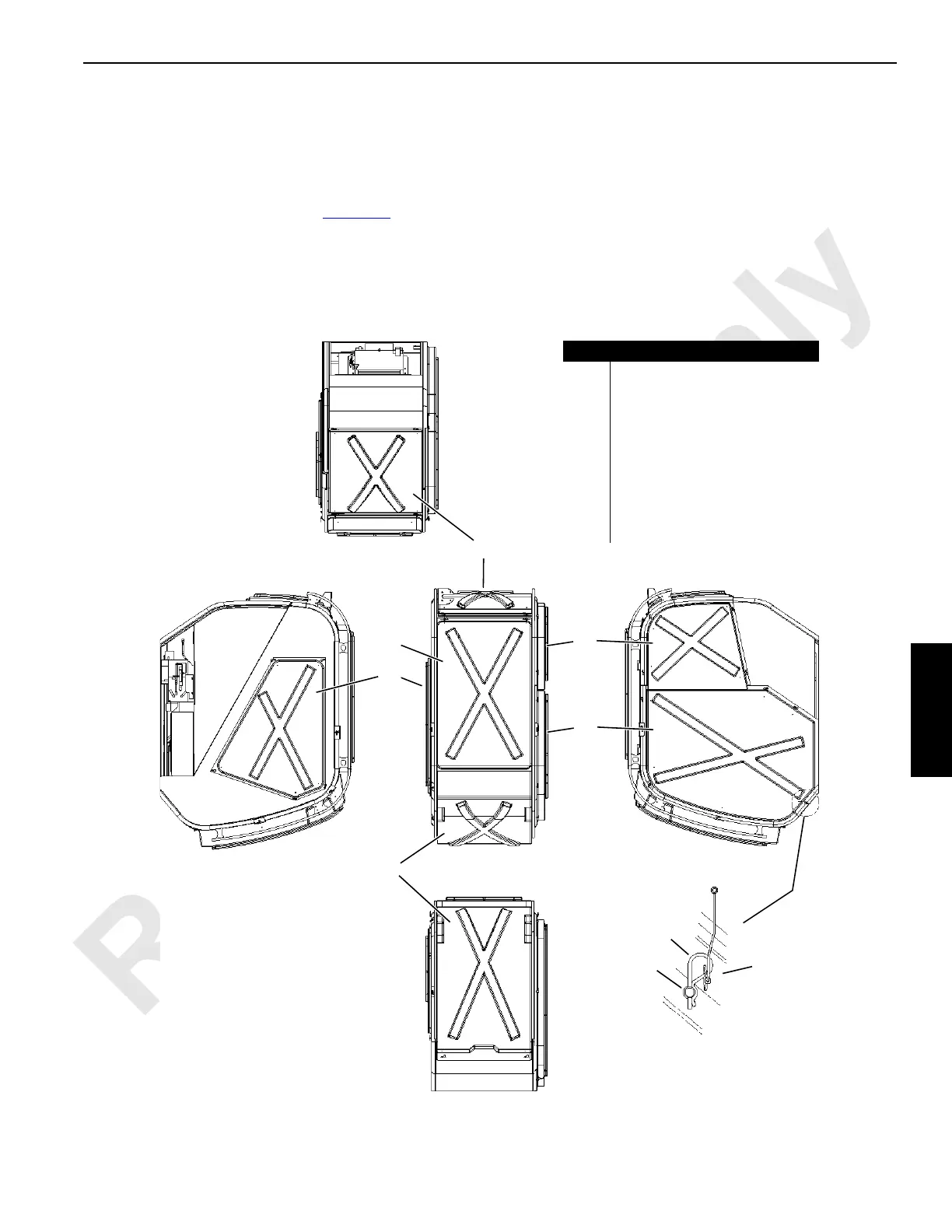

FIGURE 4-7
Rear
Item Description
1 Window Cover
1a Top
1b Front
1c Right
1d Rear
1e Left Rear
1f Left Front
2 Hair-Pin Cotter with Lanyard
3Stud
Right Side
Left Side
Front
Top
1a
1c
1b
1d
1e
1f
2
3
1
Typical
14COM4195
Past Production Cab Shown. Current Production Cab Similar.
