OPERATING CONTROLS AND PROCEDURES 14000 OPERATOR MANUAL
3-68
Published 03-29-17, Control # 064-23
Camera Screen (Optional)
The camera screen (not shown) displays camera options
and items for selecting and operating. Camera options
include up to three different cameras to monitor drum
spooling and area behind crane.
Use Select buttons to select camera screen on Menu screen.
Press Enter button to access screen.
Use Select buttons to select desired camera view.
Press Exit button until Menu screen appears.
Pressure Test and Calibration Screen
Pressure Test and Calibration Screen (see Figure 3-67) is
used to initiate and monitor four hydraulic test and calibration
procedures.
The screen shows pump commands and pressure levels for
all primary crane functions. Use data box in upper left corner
of screen to select and start a specific test or calibration
procedure.
Pressure Test and Calibration screen operates on two
levels.
Level 1 — Test data box highlighted blue.
Level 2 — Test data box highlighted red. Use Select buttons
to choose test or calibration procedure.
All test and calibration procedures must be run at a particular
engine speed. If a test is started at the wrong speed, the
appropriate prompt shown below appears in data box and
the procedure is aborted.
Engine Off
A yellow engine pressure 0 icon indicates that test
must be run with engine off.
Engine Low Idle
A yellow engine pressure down arrow icon
indicates that test must be run with engine at low
idle.
Engine High Idle
A yellow engine pressure up arrow icon indicates
that test must be run with engine at high idle.
The yellow open circuit icon indicates a circuit fault
that must be serviced immediately.
The yellow short to ground icon indicates a circuit
fault that must be serviced immediately.
Pressure Sender Test
See Figure 3-67 for the following procedure.
The pressure sender test calculates the zero-pressure
output level for each pressure sender.
Perform this test when:
- A new pressure sender is installed
- A new controller node that monitors pressure
senders is installed
- A new master node or master node software is
installed
- Pressure readings are noticeably in error
Test pressure senders as follows:
1. Stop engine and turn ignition switch to run position.
Push Enter button to go to Pressure Test and Calibration
screen from Menu screen.
2. Press Enter button to go to level 2. Use
Select buttons to show PRESSURE
SENDER icon in data box.
3. Press Confirm button to start test.
4. Test starts and percent of completion is displayed in data
box.
5. When test is complete, pressure sender icon reappears
in data box.
Pressure senders must show a signal within a specified
range during this test. Any sender signal out of this
range is highlighted yellow. Troubleshoot failed senders
to determine cause of fault.

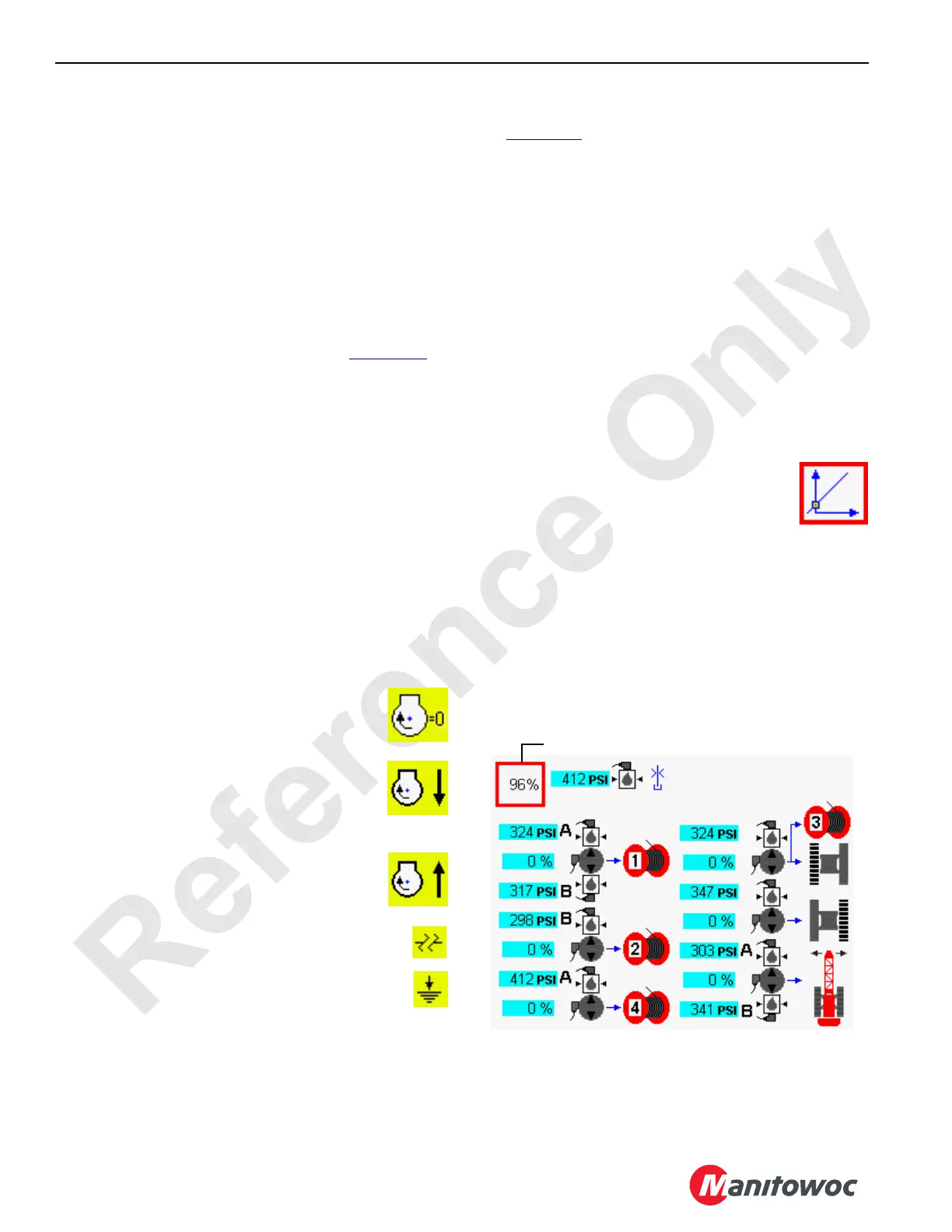

FIGURE 3-67
Data Box
14COM3-51
