OPERATING CONTROLS AND PROCEDURES 14000 OPERATOR MANUAL
3-62
Published 03-29-17, Control # 064-23
CAN Bus Diagnostic Screen
See Figure 3-66 for the following procedure.
The CAN bus diagnostic screen is for technicians. The
screen displays CAN bus packet and node information,
engine status, history status, and boom status. Any node that
is yellow indicates that communication is lost to that node.
The CAN Bus screen operates on two levels:
Level 1 — Packet number data box highlighted blue
Level 2 — Packet number data box highlighted red
Packet Information
The top row of the screen contains CAN Bus packet number
(92). Enter desired packet number in the first data box by
using Select buttons.
Packet type (DO) is displayed on top middle data box.
Related node (3) is indicated in top last data box.
Packet contents are displayed in the eight banks under the
row. Packet content and format depends on packet type.
Many packets are not easily interpreted by other than factory
technical personnel and their content is not discussed in this
publication.
Each individual input/output is assigned a number (identifier)
in the binary system (powers of two). The identifiers of all
inputs/outputs that are ON (active) for each bank are added
for a total of 0 – 255. The number displayed for each bank is
the sum of all identifiers that are ON in that bank. Each
possible ON/OFF combination per bank has a unique total.
To determine the status of an individual digital input or
output, you need to know the CAN packet number (see Table
3-7 and Table 3-8). For example: Drum 1 Park Switch has a
packet number of CAN92-3-4.
The first part of the number – CAN92 – indicates that the
individual input or output is located in packet 92 of CAN
communications.
The second part of the number – 3 – indicates the bank
where the individual information is shown on the CAN
screen.
The third part of the number – 4 – is the item identifier.
Determine the status of the individual input/output by
checking the total in bank three (37). Find 37 in the
numbered column of Table 3-9
- Bank Identifier Numbers. In
the corresponding row the identifier numbers that are ON in
the bank are shaded (1, 4, 32 = 37). In the above example
identifier 4 is shaded so Drum 1 Park Switch is ON.
Digital Output Disable Fault
See Figure 3-66 for following procedure.
The control system is capable of detecting an open or short
circuit in most of the system’s digital outputs. When Fault 84-
Digital Output Disable is shown in fault section of
Information screen, use the following procedure:
1. Scroll through packet numbers 30, 31 and 33.
2. Banks 1, 2 and 3 of CAN screen should display number
255.
3. If a number less than 255 is displayed in banks 1, 2, and
3, use the Bank Identifier Numbers in Table 3-9
to
determine which bit(s) are off.
4. Use Table 3-6
- Digital Output Disable, to determine
what outputs are not working.
5. Investigate indicated outputs for short to ground, short to
shield or other problem.
Engine Node Status
Engine displays node bus status that is for factory use only.
Communication number should to be under 64.
Crane Status
The two crane status banks on left side display crane errors.
Crane status banks should display zero. The number
displayed in crane status top bank correspond to numbered
communication errors listed below:
• Number 1 - Node-2 is not communicating
• Number 2 - Node-3 is not communicating
• Number 4 - Node-4 is not communicating
• Number 8 - Node-5 (optional) is not communicating
8 Packet
Number Banks
Engine
Node
Status
Crane History
Status
Boom Node
Status
Packet
Number &
Type

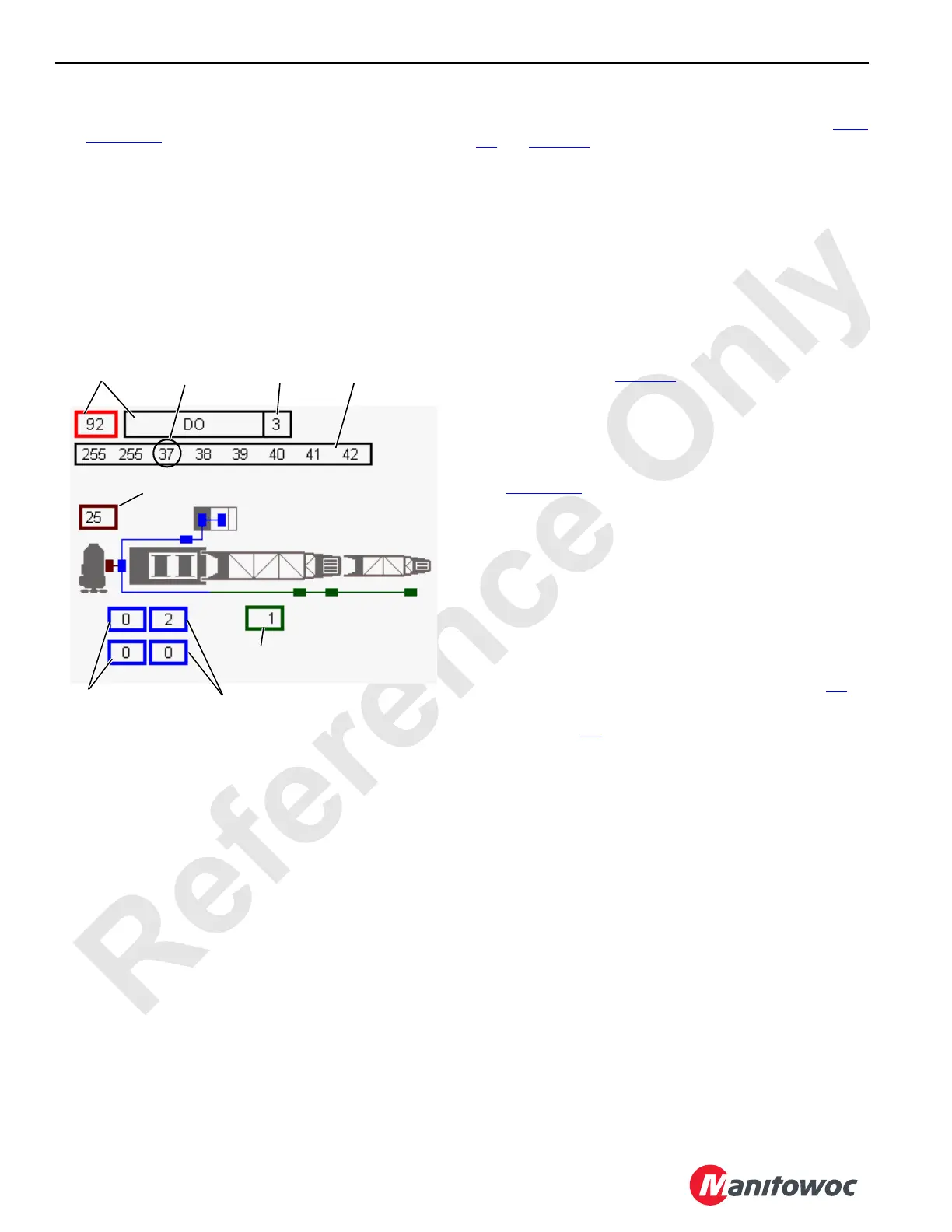

FIGURE 3-66
Node
Number
Crane
Status
14COM3-50
Bank 3
Tota l
