Manitowoc Published 03-29-17, Control # 064-23 v2 4-71
14000 OPERATOR MANUAL SETUP AND INSTALLATION
Identifying Boom and Jib Components
Boom and jib sections are marked for proper identification as
shown in Views A and B, Figure 4-32
.
Boom and jib pendants are marked for proper identification
as shown in View C, Figure 4-32
.
Boom straps and links are marked for proper identification as
shown in View D, Figure 4-32
.
The markings shown in Figure 4-32
can vary depending on
when your crane was produced and the original equipment
manufacturer.

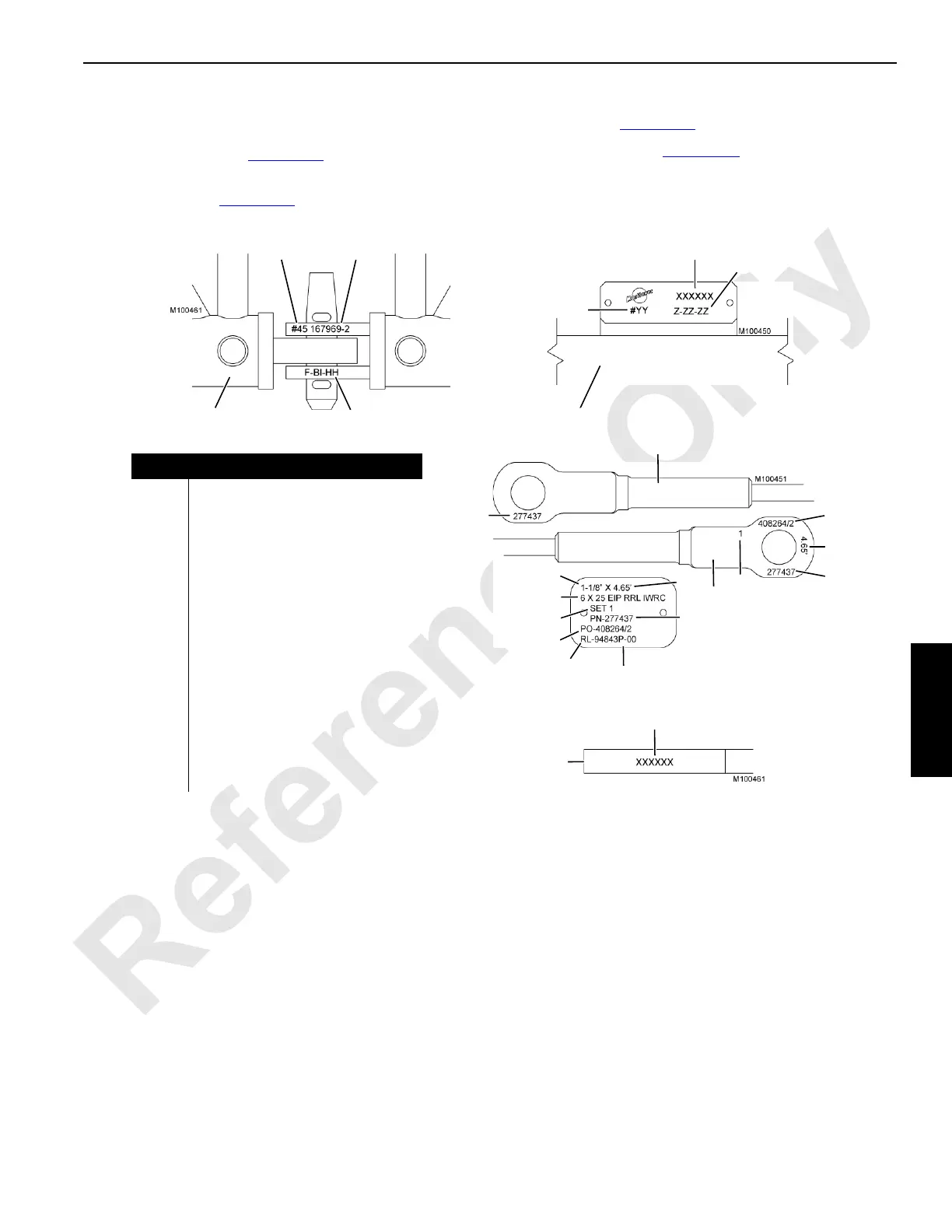

FIGURE 4-32
View B
View C
2
Item Description
1 Boom or Jib Chord
2 Boom or Jib Number
3 Manitowoc Part Number
4 Manitowoc Manufacturing Code
5 Pendant
5a Aluminum Tag (if equipped)
6 Manitowoc Purchase Order Number
7 Manufacturer’s Number
8 Wire Rope Type
9Diameter
10 Length
11 Set Number
12 Strap or Link
4
1
3
1
2
3
4
3
5
5
11
3
5a
3
10
6
3
8
9
11
6
7
10
View A
12
