14000 OPERATOR MANUAL SAFETY INFORMATION
2
SWING RADIUS BARRIER
Manitowoc’s optional swing radius barrier is shown in
Figure 2-3
.
Deploying Swing Radius Barrier
1. Remove pins (2b and 2c, View A) from stored position.
2. Unfold extension arms (3) and rotate barrier arms (1)
outward to working position (View C).
3. Install pins (2b, View D and 2c, View B) to secure arms
in working position.
4. Form a safety perimeter by attaching user supplied high
visibility rope or ribbon (4) to hooked ends of extension
arms (3, View C).
Storing Swing Radius Barrier
1. Remove rope or ribbon (4) from hooked ends of
extension arms (3).
2. Remove pins (2b, View D and 2c, View B) from working
position.
3. Fold extension arms (3) and rotate barrier arms (1)
inward against crawler frame.
4. Install pins (2b and 2c, View A) in stored position.
WARNING
Crush Hazard!
To prevent personnel from being crushed by swinging
crane, deploy swing radius barrier before operating crane.
3
2c

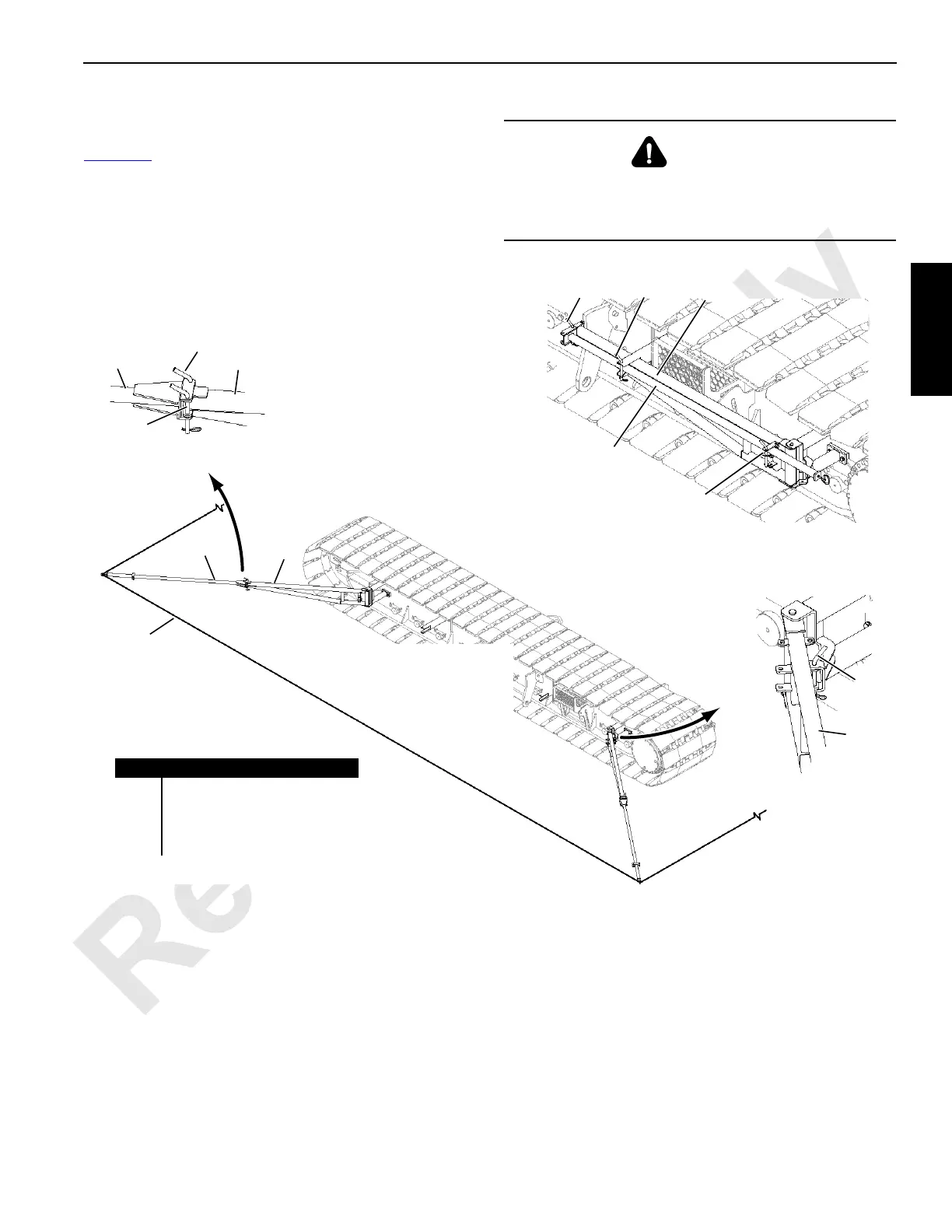

FIGURE 2-3
View A
Swing Radius Barrier
STORED Position
14COM2-4d
View D
(2 places)
1
3
4
3
1
2b
2a
View B
(2 places)
1
2c
14COM2-4a
2a
2b
3
Item Description
1 Barrier Arm
2Hitch Pin with Hair-Pin Cotter
3 Extension Arm
4 Rope or Ribbon (user furnished)
View C
Swing Radius Barriers
WORKING Position
