SETUP AND INSTALLATION 14000 OPERATOR MANUAL
4-4
Published 03-29-17, Control # 064-23 v2
Optional boom ladders are available from Manitowoc. If your
crane has ladders, see Page 68
.
CRANE WEIGHTS
See Crane Weights in Section 1 and Shipping Data on Page
5 for overall weight of the crane and individual weights of
components.
HANDLING COMPONENTS
The major components are equipped with lifting lugs which
are identified in the assembly and disassembly steps.
When lifting lugs are not provided, use nylon lifting slings. If
wire rope or chain slings are used, install protective covering
(such as sections of rubber tire) between slings and
component being lifted.
It is owner’s/user’s responsibility to ensure that all
lifting slings, hooks, and shackles are in safe working
order and capable of handling loads applied to them.
RETAINING CONNECTING PINS
Connecting pins are retained in various ways:
• Snap pins
• Quick-release pins
• Cotter pins
• Keeper plates with cap screws and lock washers
Do not operate crane until all connecting pins are installed
and properly retained.
CAUTION
Lacing Damage!
Ensure straps for boom inserts and top remain pinned and
secured in the shipping position during handling and
transportation unloading.
CAUTION
Personal Injury or Property Damage!
Ensure the boom straps remain properly secured in the
shipping position to the boom insert or boom top during
transportation loading or unloading and assembly or
disassembly of the boom. Straps could shift or fall
resulting in personal injury or property damage if not
properly secured.

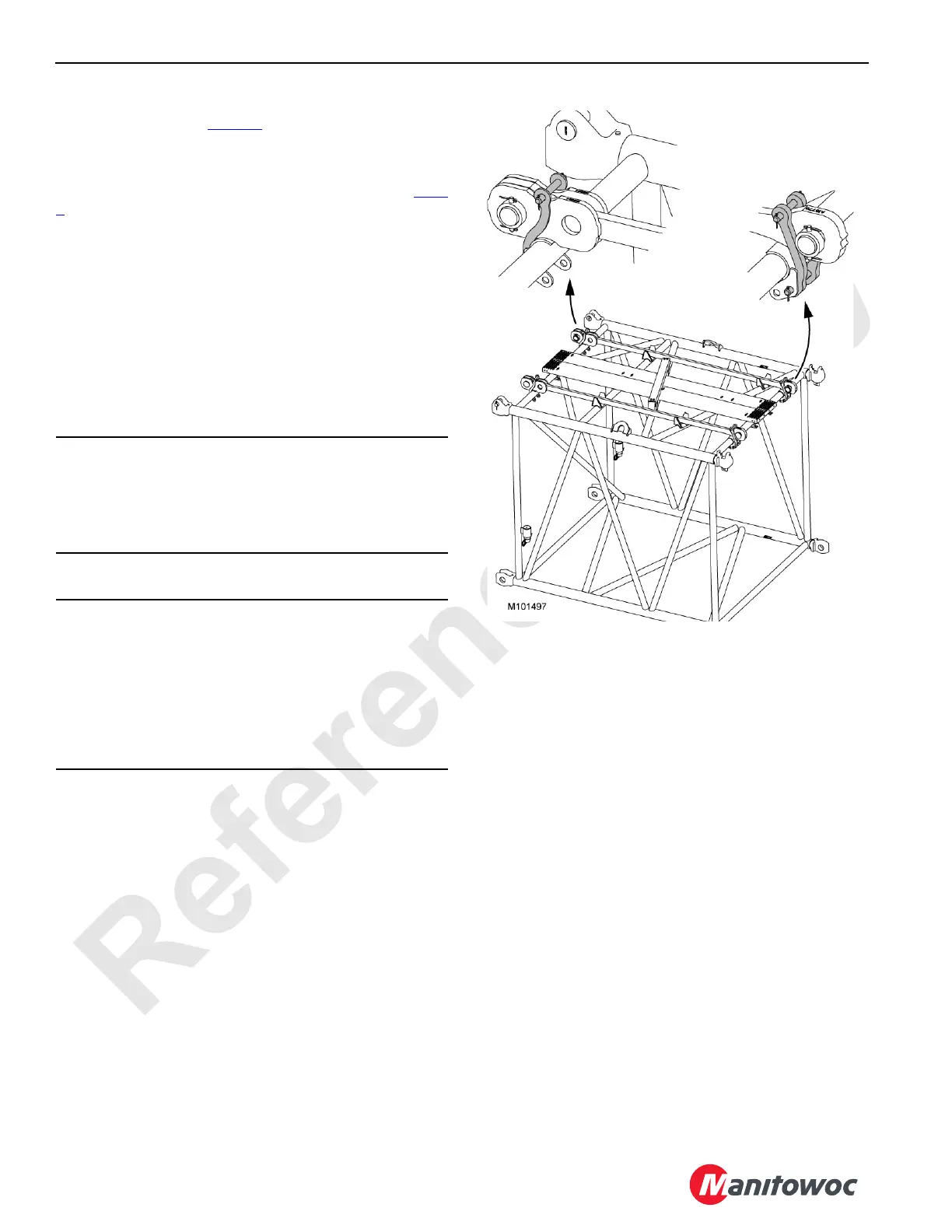

Boom Insert with straps secured
in the shipping position
